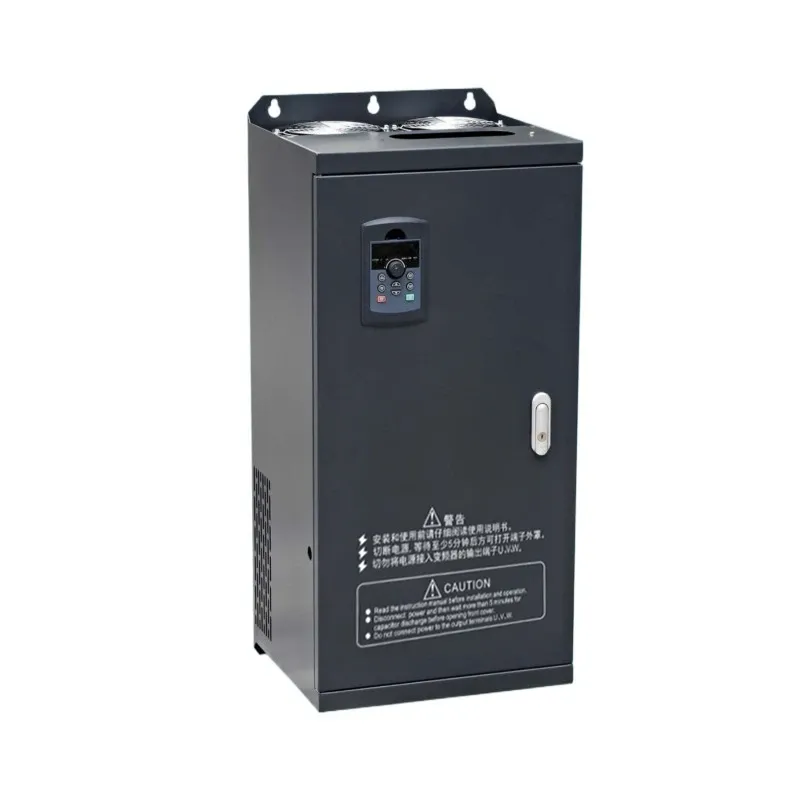

Iibiyaha Tayada DC-ga ee Tayada

Inverters DC waxaa bixiya soo saaraha xirfadleyda ahCDADA. Xaruntayadu waxa ay ka kooban tahay sagaal khadadka wax soo saarka, oo ay taageerto 20 sano oo waayo-aragnimo wax-soo-saar urursan oo qaybtan alaabta ah. U hoggaansanaanta heerarka caalamiga ah, alaabadayadu waxay ku faanaan nolol adeeg ilaa 25 sano waxayna wataan dammaanad 3 sano ah.

Waa maxay Inverter-ka DC?

A beddelka DC, caadi ahaan loo yaqaan abeddelka sawir-qaade (PV) amarookaha qoraxda, waa aalad koronto oo casri ah oo beddeleysahadda toos ah (DC) ay dhaliso baalayaasha cadceedda galayka beddelka hadda (AC) ku haboon isku xirka shabakada ama isticmaalka deegaanka. Maaddaama ay tahay qaybta udub-dhexaadka u ah nidaamyada korantada sawir-qaadista, roog-galiyuhu wuxuu qabtaa hawlo badan oo muhiim ah oo ay ku jiraanugu badnaan raadraaca barta korantada (MPPT), isku xidhka shabakada, maaraynta tayada awooda, iyo ilaalinta nidaamka.

Rogayaasha casriga ah ee PV waxay ku shaqeeyaan dhamaan qaybaha korantada ee kala duwan200V DC ilaa 1500V DC, oo leh qiimeeyn koronto oo ka yimid1kW unugyo la deggan yahay ilaa rogo-rogayaasha dhexe ee cabbirka tamarta megawatt-ka badan. Waxtarka beddelka beddelka rogayaasha premium waa dhaaftay99%, oo leh waxtarka-miisaanka Yurub (η) sida caadiga ah u dhexeeya97% ilaa 98.5%.

Si ka duwan beddelayaasha fudud ee DC-AC, beddelayaasha PV ayaa ku jiranidaamyada xakamaynta caqliga taasoo si joogto ah u wanaajisa goosashada tamarta, la socota caafimaadka nidaamka, oo xaqiijisa u hoggaansanaanta koodhadhka soo koraya. Inverter-ku wuxuu asal ahaan u adeegaa sida "maskaxda" ee nidaamka sawir-qaadista, isku-dubbaridka socodka tamarta ee u dhexeeya qaybaha qoraxda, baytariyada, rarka, iyo shabagga tamarta.

Qaybaha Alaabta Inverter & Qaabaynta

Kala soocidda	Nooca	Range Power	Astaamaha Muhiimka ah
Codsiga	Xarig beddelka	1kW - 150kW	Qalabyo badan oo MPPT ah, wax soo saar 3-waji ah, ganacsi/deegaan, 98%+ hufnaan
	Inverter Central	100kW - 10MW+	Hal unug oo weyn, miisaan-utility, transformer-ku-xidhan yahay, kharash-ool ah halkii watt
	Microinverter	250W - 2000W	Heerka-module, midkiiba MPPT, la xoojiyey dulqaadka hadh, isku halaynta sare
	Inverter isku-dhafka ah	3kW - 50kW	Isku dhafka kaydinta baytariga, socodka korantada laba jiho, awooda korantada
	Kobciyaha Awoodda	300W - 1000W	Beddelaha DC-DC + rogaha xargaha, hagaajinta heerka moduleka, xidhid degdeg ah
By Topology	Transformer ku salaysan	1kW - 10MW	Go'doominta Galvanic, adag, culus, hufnaan hoose (96-97%)
	Transformer la'aan	1kW - 250kW	Hufnaan sare (98%+), khafiif ah, maaraynta daadinta ayaa loo baahan yahay
	H-Bridge	Dhammaan qiimeynta	Beddelka aasaasiga ah ee topology, kontoroolka PWM, soo saarida mowjadaha sinaha
	Heer badan (3-heer NPC/T-nooca)	10kW – 10MW+	Khasaaraha beddelka oo hoos u dhacay, tayada waveform oo wanaagsan, awoodda korantada oo sarreeya
By Input Voltage	Voltage hooseeya	200V - 500V DC	Nidaamyada deegaanka, isku xidhka hal xadhig
	Voltage dhexdhexaad ah	500V - 1000V DC	Nidaamyada ganacsiga, 1000V NEC xadka US
	Korantada Sare	1000V - 1500V DC	Miisaanka tas-hiilaadka, 1500V wuxuu noqonayaa heer, kharashyada BOS oo la dhimay
By Output	Marxalad kali ah	1kW - 10kW	Deegaanka, 230V/120V, 50/60Hz
By Output	Saddex-Weji	5kW – 10MW+	Ganacsi/warshad, 400V/480V, xadhig-xidhan

Xulashada Habaynta MPPT:

Hal MPPT:Aasaaska, qiimaha jaban, gelinta xadhig keliya

Labada MPPT:Laba qalab oo madaxbannaan, hanuunin/hadhka kala duwan

MPPT fara badan (4-12 wax la geli karo):Nidaamyada ganacsiga, joomatariyada saqafka adag

Hawlaha Muhiimka ah & Mabaadi'da Hawlgelinta

Habka Beddelka Awoodda

Marxalada	Shaqada	Hirgelinta Farsamada
Heerka Wax-soo-gelinta DC	Ka aqbala doorsoome DC ka soo diyaarinta PV, shaandhaynta, ilaalinta	Qalabka shaandhaynta DC, ilaalinta qallafsan, ilaalinta polarity roga, la socodka korantada gelinta
Marxaladda MPPT	Waxay kordhisaa soo saarista korantada iyadoo la raadinayo danab/ hadda ugu wanaagsan	Kor-u-qaadista ama kor-u-qaadista beddelka, qallafsanaanta & u fiirsashada (P&O) ama kordhinta habdhaqanka algorithm, 99%+ hufnaanta dabagalka
Rogista DC-AC	Wuxuu u beddelaa DC una beddelaa AC isagoo isticmaalaya beddelka-soo noqnoqda sare	IGBT ama SiC MOSFET H-bridge, PWM control (2-20kHz), xakamaynta wakhtiga dhiman
Shaandhaynta wax soo saarka	Waxay ka saartaa harmonics-ka soo noqnoqda ee soo noqnoqda, waxay fududaysaa qaabka hirarka	Shaandheeyaha LCL ama LC, iska caabiyeyaasha qoyaan, <3% THD
Isku xirka Grid	Waxay la midaysaa shabagga, u hoggaansanaanta tayada korantada	Wareegga qufulan ee wajiga (PLL), ilaalinta lidka-jaabka, xakamaynta awooda falcelinta
Xakamaynta & Dabagalka	Maareynta nidaamka, kaydinta xogta, isgaarsiinta	DSP/MCU xakamaynta, Ethernet/WiFi/RS485, la socodka daruuraha, cusboonaysiinta firmware

Dabagalka Goobta Korontada ee ugu badan (MPPT)

Hawsha MPPT waa tignoolajiyada xudunta u ah ee hubisa goosashada tamarta ugu badan ee ka soo baxda cadceedda. Maadaama qaybaha PV ay muujinayaan koronto aan toos ahayn (I-V) sifo leh hal dhibic koronto oo ugu badan (MPP) taas oo ku kala duwan ilbaxnimada iyo heerkulka, rogaha waa inuu si joogto ah ula socdaa yoolka dhaqaaqa.

Halbeegyada MPPT ee muhiimka ah:

Xaddiga Korantada ee MPPT:Daaqadda shaqaynaysa halka rogaha uu soo saari karo awoodda ugu badan (tusaale, 200-850V ee 1000V beddelka)

Xadka MPPT oo buuxa:Baaxadda korantada ee soosaarka tamarta la qiimeeyay

Waxtarka MPPT:> 99% saxnaanta la socodka xaaladaha firfircoon

Xawaaraha sawirka:Ka jawaabista isbeddellada degdega ah ee ilbaxnimada (cloud transients)

Algorithms MPPT:

Xumaan & U fiirso (P&O):Inta badan, hagaajinta tamarta korantada, 99%+ hufnaanta

Kordhinta Dhaqanka (INC):Ogaanshaha saxda ah ee MPP, oo ka fiican xaaladaha degdega ah ee isbeddelaya

Isku-dhafka / Sare:Algorithms-ka hidde-sideyaasha, caqli-gal daahsoon, shabakadaha neerfaha ee xaaladaha hadhka adag

Isku-dubbaridka Grid & Badbaadada

Rogayaasha casriga ah waa in ay u hoggaansamaan koodka xargaha adag oo ay ku jiraan:

Ilaalinta ka-hortagga gasiirada: Si otomaatig ah ayaa loo xiray 2 ilbiriqsi gudahooda ee luminta korantada (UL 1741/IEC 62116)

Soo noqnoqda/kordhinta korantada: Sii wad hawlgalka inta lagu jiro khalkhal gelinta shabakada (LVRT/HVRT)

Taageerada awoodda falcelintaBixinta taageerada VAR ee xasilloonida shabakada (IEEE 1547)

dhalanrog harmonic: <3% THD hadda, <5% oo danab ah

Deegaanka Codsiga & Kiisaska Isticmaalka

Codsiga	Cabbirka Nidaamka	Tilmaamaha Caadiga ah	Shuruudaha Muhiimka ah
Degganaanshaha-Grid-ku xidhan	3kW - 20kW	Hal-waji, 98% hufnaan, 2 MPPT, WiFi la socodka, 10-sano damaanad	Is haysta, xasilloon, rakibid fudud, xidhidh degdeg ah (NEC 2017)
Isku-dhafka deegaanka	5kW - 15kW	48V batari, awoodda kaydinta, waqti-isticmaalka wanaajinta, kor u qaadida is-isticmaalka	UL 9540 (batteri), wareejin aan kala go 'lahayn, 24/7 hawlgalka
Saqafka sare ee ganacsiga	20kW - 500kW	Saddex waji, hufnaan 98.5%, 4-12 MPPT, la socodka xadhigga, nolosha naqshadaynta 25 sano	Kalsoonida sare, dayactirka ugu yar, la socodka fog
Ground-Commercial-Buur	100kW - 2MW	Dhexe ama xadhig, 1500V DC, isgaarsiinta khadka korontada, sawir qalooca IV	Wax-soosaarka ugu badan, hagaajinta O&M, laqabsiga dhulka
Utility-Miisaanka PV	2MW – 10MW+	Wareegtada dhexe, 1500V, MV is dhexgalka beddelka, awoodda samaynta koronto	LCOE-ga ugu hooseeya, 99% helitaanka, hawlaha taageerada khadka
Kaydinta Tamarta	50kW - 5MW	Labada jiho, DC-ku-xidhan ama AC-ku-xidhan, nidaaminta soo noqnoqda, xiirashada ugu sarreysa	Waxtarka safarka-wareega>90%, wakhtiga jawaabta <1s, adkaysiga baaskiilka
Off-Grid/Remote	1kW - 100kW	Ku-saleysan baytari, isku-dhafka koronto dhaliyaha naaftada, maaraynta culeyska, mikrogrid karti leh	Kalsooni heer sare ah, hawlgal madax-bannaan, dulqaad deegaan oo xad dhaaf ah
Dallacaadda EV	50kW - 350kW	Dallacaadda degdegga ah ee DC, awoodda V2G, cufnaanta awoodda sare, qaboojinta dareeraha	99% wakhtiga la joogo, is dhexgalka lacag bixinta, adeegyada isku dheellitirnaanta khadka

Habka Wax-soo-saarka & Socodka Shaqo ee Wax-soo-saarka

Taxanaha Wax-soo-saarka Saxda ah ee Sare

Qaybta IQC → PCB Assembly (SMT) → Module Power → Isku-dhafka Kulaylka → Rakibaadda Capacitor & Magnetics → Fadhiga Ugu Dambeeya → Tijaabada Gubashada → Tijaabada U Danbaysa Automated → Baakadaha

Marxaladaha Wax-soo-saarka Muhiimka ah

Marxalada	Faahfaahinta Habraaca	Qodobbada Xakamaynta Tayada
Golaha PCB (SMT)	Dusha sare ee cufnaanta sare, 0201 qaybood, Soosaarayaasha BGA, alxanka bilaa rasaasta (SAC305)	Kormeerka AOI, Raajo ee BGA-yada, ICT (imtixaanka wareegga gudaha), 100% xaqiijinta shaqaynta
Golaha Awooda Module	IGBT/SiC MOSFET dhinta lifaaqa, xidhidhiyaha siliga (Al/Cu), xidhidh, codsiga walxaha interface kulaylka	Iska caabbinta kulaylka <0.5K/W, ku xidhid dhinta-free-free, bond jiid xoog> 8g, 100% xannibaya tijaabada korantada
Isku xirka Capacitor DC	Kordhinta capacitor filimka, xidhiidhka baska, yaraynta ESL/ESR	Awoodda ± 5%, ESR <1mΩ, danab u adkaysta 1.5× la qiimeeyay, 100% tijaabada daadinta
Magnetics Dabaylaha	Inductors-soo noqnoqda sare, nanocrystalline ama ferrite cores, Litz silig si loo yareeyo saamaynta maqaarka	Inductance ± 10%, lumitaanka xudunta ah <2W/kg, tijaabada hipot 3kV, dheecaan qayb ah <10pC
Golaha Heat Heat	Aluminium extrusion ama saxan qabow dareere ah, koollada kulaylka / suufka codsiga, korka kontoroolka torque	Iska caabbinta kulaylka <0.3K/W, flatness <50μm, qaybinta cadaadiska isku midka ah
Golaha kama dambaysta ah	Is dhexgalka chassis, rakibida marawaxada qaboojinta, bandhigyada/qaybaha isgaarsiinta, xadhkaha fiilooyinka	Sii socoshada dhulka <0.1Ω, caddaynta nadiifinta/wax-ka-soo-baxa, calaamadaynta qulqulka
Tijaabada Gubashada	48-72 saacadood oo hawlgal ah 50°C, baaskiil culays buuxa, baaskiil kulayl	Ogaanshaha fashilka hore, baaritaanka dhimashada dhallaanka, <0.5% heerka guuldarada
Imtixaanka ugu dambeeya ee otomaatiga ah	Cabbirka hufnaanta (IEC 61683), xaqiijinta MPPT, tijaabada shaqada ilaalinta, u hoggaansanaanta koodhka	100% tijaabin, kaydinta xogta, shahaado hagaajinta, raadraaca lambarka taxanaha

Alaabta Ceyriinka Aasaasiga ah & Tilmaamaha Qaybaha

Qayb	Tilmaamaha Qalabka	Heerarka alaab-qeybiyaha	Guryaha Furaha
Semiconductors Power	Silikon IGBT (1200V-1700V, 200A-600A) ama SiC MOSFET (1200V, 50mΩ)	IEC 60747-9, JEDEC	Inta jeer ee beddelka 2-50kHz, Rds(daran) <5mΩ, Tj(ugu badnaan) 175°C, wareeg gaaban u adkaysanaysa 10μs
Darawaliinta Albaabka	Dareewalka albaabka go'doonsan ICs, go'doomin birlab ama awood leh	UL 1577, IEC 60747-5	CMTI>100kV/μs, daahitaanka faafinta <100ns, quful yar
Capacitors Link DC	Filimka polypropylene bir ah, 400-1500V DC, 100-5000μF	IEC 61071	ESR <1mΩ, ESL <20nH, 100,000 saac nolol, is-bogsiin
Magnetics (Inductors)	Nanocrystalline ama ferrite cores, silig Litz (Cu)	IEC 60404-8, IEC 60317	Khasaaraha asaasiga ah <2W/kg at 100kHz, Bsat>1.2T, Curie temp>200°C
Heerarka kulaylka	Aluminium 6063-T5 ama naxaas, anodized ama nikkel-plated	ASTM B221	Dhaqdhaqaaqa kulaylka 200W/mK, qallafsanaanta dusha sare Ra 1.6, iska caabin daxalka
Interface Thermal	Walaxda beddelka wejiga ama dufan silikoon, 0.5-3W/mK	ASTM D5470	Iska caabin kulaylka <0.5K·cm²/W, xasilloonida muddada-dheer, matoorka-baxa
Xakamaynta PCB-yada	FR-4 TG170 ama sare-Tg, 4-12 lakab, dahab immersion	IPC-6012, UL 796	Tg> 170 ° C, CTI> 600V, xakamaynta impedance ± 10%
MCUs/DSPs	ARM Cortex-M4/M7 ama u heellan DSP, 100-400MHz	IEC 60730 (badbaadada shaqada)	SIL 2 karti leh, qalabka FPU, xusuusta ECC, heerkulka -40°C ilaa +85°C
Lifaaqa	Aluminium dhinta-kabka ah ADC12 ama bir, budo-dahaarka leh	ISO 12944, IEC 60529	Qiimaynta dibadda IP65, C3/C4 iska caabin daxalka, saamaynta IK08
Xidhiidhiyayaasha	MC4 ee DC, Harting for AC, RJ45 ee isgaarsiinta	IEC 62852, UL 6703	IP68, 30A joogto ah, 1000V DC, 25-sano UV iska caabin ah

U Hogaansanaanta Heerarka & Nidaamyada Imtixaanka

Qaabdhismeedka Heerarka Caalamiga ah

Heerka	Baaxadda	Shuruudaha lagu dabaqi karo
IEC 62109-1/-2	Badbaadada beddelayaasha korantada si loogu isticmaalo nidaamyada tamarta sawir-qaadista	Shuruudaha guud (Qaybta 1) iyo shuruudaha gaarka ah ee beddelayaasha (Qaybta 2)
IEC 61683	Nidaamyada sawir-qaadista - qaboojiyaha awoodda - Habka lagu cabbiro waxtarka	Qiyaasta hufnaanta la jaanqaaday, waxqabadka MPPT, shuruudaha aqbalaadda
IEC 62116	Weriyeyaasha sawir-qaadista ee ku xiran tas-hiilaadka - Habka tijaabada ee tallaabooyinka ka hortagga jasiiradaha	Xaqiijinta ilaalinta ka-hortagga jasiiradda
IEC 61727	Nidaamyada Photovoltaic - Tilmaamaha isdhexgalka utility	Shuruudaha isku xirka grid, tayada korantada
IEC 60068-2	Baaritaanka deegaanka	Baaskiil kulaylka, kulayl qoyan, walbahaarka farsamada
IEC 61000-6-2/-6-4	Difaaca EMC iyo sii deynta	Xasaanadda deegaanka warshadaha, sii daynta deegaanka/ganacsiga

Tijaabooyinka Nooca qasabka ah (IEC 62109 & IEC 61683)

Qaybta Imtixaanka	Imtixaan gaar ah	Shuruudaha Ogolaanshaha
Badbaadada & Ilaalinta	Qaybta korantada xad-dhaafka ah, shahaadada wasakhowga, nadiifinta/creepage	CAT III/IV, PD2/3, 8mm nadiifinta 1000V
	Kahortagga naxdinta korantada (qiimaynta IP)	IP20 ugu yar (gudaha), IP65 (dibadda)
	Joogitaanka dhulka	<0.1Ω
	Iska caabin dahaarka	>1MΩ at 500V DC
Waxqabadka kulaylka	Tijaabada heerkulka kor u kaca oo buuxa	Heerkulka qaybaha ka hooseeya xadka la qiimeeyay, Tj
Waxqabadka kulaylka	Baaskiilka kulaylka (-40°C ilaa +85°C, 100 wareeg)	Ma jiro cillad farsamo, majiro halbeeg-beegti>5%
Cabbirka Waxtarka (IEC 61683)	Waxtarka Euro (η) ee 5%, 10%, 20%, 30%, 50%, 100% load	> 97% rogayaasha xargaha,> 98.5% ee moodooyinka qaaliga ah
	Waxtarka ugu badan ee goobta shaqada ee ugu fiican	> 98% (transformer-la'aan),> 96% (transformer ku salaysan)
	Waxtarka MPPT	Joogta ah>99.5%, firfircoon>98%
Deegaanka	Kuleylka qoyan (40°C/93% RH, 96h ama 21 days)	shaqeynaya kadib qaboojinta, ma laha daxal
	Ceeryaan milix ah (IEC 60068-2-52, darnaanta 2)	Ma jiro daxal saameeya badbaadada ama shaqada
	Soo-gaadhista UV (oo loogu talagalay xirmooyinka bannaanka)	Ma jiro hoos u dhac ku yimaadda guryaha farsamada
EMC	Dheecaan elektrostatic ah (ESD) 8kV xiriir/15kV hawo	Ma jiro cillad, ma jirto khatar badbaado
	Difaaca shucaaca ah (10V/m, 80MHz-6GHz)	Hawlgalka xilliga imtixaanka
	Sii daynta la sameeyay (CISPR 11/16)	Xadka heerka B ee deegaanka, Heerka A ee warshadaha
U Hogaansanaanta Xeerka Grid	Ka-hortagga Jasiiradda (IEC 62116)	Safarka 2s gudahood, aagga aan la ogaan karin <5%
	Koritaanka korantada hooseeya (LVRT)	Ku xirnaanta inta lagu jiro korontadu
	Awood falcelineed	Keen / nuug VARs sida loogu baahdo

Xakamaynta Tayada Warshada & Heerarka Kormeerka

Alaabta soo socota ee QC (IQC)

Qalab	Walxaha Kormeerka	Qorshaha Muunada	Qalabka
IGBT/SiC modules	Korontada xannibista, Rds (daar), sifooyinka beddelka, kormeerka muuqaalka	100% tijaabada ATE	Raadiyaha qalooca, tijaabiyaha impedance kulaylka, raajada
Xidhiidhiyayaasha DC	Awoodda, ESR, ESL, qulqulka hadda jira, qodobka kala daadsanaanta	Dufcaddiiba + 100% soo galaya	Mitirka LCR, tijaabiyaha dahaarka, buundada AC
Xudunta Magnetics	Karti, luminta xudunta ah, qalooca B-H, dulqaadka cabbirka	Dufcaddiiba	Falanqeeyaha B-H, falanqeeye impedance
PCB-yada	Tirada lakabka, is-hortaagga, iibinta, nadaafadda ionic	Dufcaddiiba + tijaabada muunad	CMM, TDR, ion chromatography
Heerkulku	Iska caabbinta kulaylka, fidsanaanta, dhammaystirka dusha sare, cabbir	Dufcaddiiba	Tijaabada is dhexgalka kulaylka, CMM, profilometer

In-Process Quality Control (IPQC)

Saldhig	Xakamaynta Xakamaynta	Soo noqnoqda	Habka
meelaynta SMT	Booska ka kooban, hanuuninta, mugga koollada alxanka	100% AOI	Kormeer indho-indhayn oo toos ah
Alxanka dib u qulqulaya	Heerkulka (kuleylka ka hor, qooyay, dib u qulqulaya, qabow), ugu sarreeya 245 ° C	Guddi kasta	Heerarka kulaylka, kormeerka raajada
Kulanka module Power	Die lifaaq faaruqinta, xoogga bond silig, interface kulaylka	module kasta	Sawirida acoustic microscopy, jiid tijaabiyaha
Kulanka ugu dambeeya	Qiimaha qulqulka, marinka fiilada, fogaanta nadiifinta, dhulka dhigista	Unug kasta	Kulan toos ah oo la hagayo, la socodka qulqulka
Soo dejinta software	Nooca firmware-ka, jaangooyooyinka cabbirka, borotokoolka isgaarsiinta	100%	Barnaamijyo otomaatig ah, hubinta hubinta

Xakamaynta Tayada Ugu Danbaysa (FQC) & Bixinta QC (OQC)

Shayga Tijaabada	Heerka	Cabbirka Tusaalaha
Danab wax-soo-saarka/soo-saarka/saxnimada hadda	± 1% akhrinta	100%
Wax ku oolnimada dhibco badan oo culeys ah (IEC 61683)	> 97% waxtarka Euro	100%
saxnaanta dabagalka MPPT	Joogta ah>99.5%, firfircoon>98%	100%
Xaqiijinta shaqada ilaalinta (OV, UV, OC, OT, qaladka dhulka)	Safar waqti cayiman gudaheed	100%
Iska caabbinta dahaarka (wax-soo-saarka, wax-soo-saarka, dhulka-soo-saarka)	>1MΩ @ 1000V DC	100%
Dielectric adkeysi (hi-pot)	2kV AC ama 3kV DC, 60s	100%
Joogitaanka dhulka	<0.1Ω	100%
Dhaqdhaqaaqa hadda socda ( taabasho hadda ah, haddalka ilaaliye)	<3.5mA AC, <10mA DC	100%
U hoggaansanaanta EMC ka hor (gaarsiin la sameeyay)	Xadka fasalka A/B	AQL 1.0
Tijaabada gubashada (48h at 50°C, culays buuxa)	<0.5% heerka guuldarada	100%
Daacadnimada baakad (dhicis, gariir, joog)	ISTA 3E, ASTM D4169	Inta badan

Kaabayaasha Wax-soo-saarka & Awoodda Wax-soo-saarka

Qalab Wax-soo-saar heersare ah

Qaybta Qalabka	Tilmaamaha Mashiinka	Shaqada	Awood
Khadadka SMT	Xawaaraha sare-qaadista iyo goobta (ASM SIPLACE, 100,000 CPH)	Meelaynta qaybaha, 01005 ilaa 50×50mm	500,000 PCBs/bishii
Foornooyinka dib u qulqulaya	10-aagga nitrogen dib u qulqulaya (Heller, Rehm)	Alxan la'aanta rasaasta, xakamaynta astaanta ±2°C	300,000 PCBs/bishii
Golaha Awooda Module	alxanka faakuumka, xidhitaanka fiilada (K&S, ASM)	IGBT/Module SiC ku lifaaqan, xidhidh ultrasonic	50,000 modules/bishii
Tijaab toos ah	Nidaamyada ATE (Chroma, Cilmi-baarista NH)	100% shaqaynaya, hufnaan, tijaabada ilaalinta	10,000 unug/maalintii
Qolalka Gubashada	Qolalka deegaanka ee lagu socdo (ESPEC, Weiss)	48-72h gubashada, baaskiil kulaylka	5,000 oo unug oo isku mar ah
Imtixaanka EMC	3m/10m qolka anechoic, oo la sameeyay EMI shaybaadhka	U hoggaansanaanta ka hor iyo tijaabada shahaadaynta	50 unug/toddobaadkii
Tijaabada Deegaanka	Naxdinta kulaylka, buufinta milixda, UV, tijaabada IP	IEC 60068-2, IEC 60529 u hoggaansanaanta	100 unug/toddobaadkii

Awoodda Wax-soo-saarka & Waqtiyada Hogaaminta

Qaybta Alaabta	Awoodda bisha	Waqtiga Hoggaanka caadiga ah	Awoodda Dalabka Degdegga ah
Xadhiga rogayaasha deegaanka (3-10kW)	10,000 oo unug	4-5 todobaad	5 maalmood
Xadhkaha goosashada ganacsiga (20-150kW)	5,000 oo unug	4-5 todobaad	7 maalmood
Wareegtada dhexe (500kW-3MW)	500 oo unug	6-8 toddobaad	3 toddobaad
Rogayaasha isku-dhafan (5-20kW)	30,000 oo unug	4-5 todobaad	7 maalmood
Microinverters (300-2000W)	200,000 oo unug	2-3 toddobaad	5 maalmood

Injineerinka & Qaabdhismeedka Kooxda Farsamada

Waaxda	Shaqaale	Khabiir	Waajibaadka
Injineerinka R&D	5 injineerada	Korantada elektiroonigga ah, nidaamyada xakamaynta, software-ku-xidhan, maaraynta kulaylka, is-dhexgalka xadhkaha	Horumarinta badeecada cusub, hal-abuurnimada topology, faylalka patent-ka (100+ shatiyo)
Farsamada injineernimada	30 injineer	SMT, kulanka moduleka awooda, tijaabinta iswada, Warshadaha 4.0	Hagaajinta wax-soo-saarka, horumarinta wax-soo-saarka (> 99%), dhimista kharashka
Tijaabinta & Xaqiijinta	25 injineer	IEC 62109, IEC 61683, koodhadhka grid, EMC, injineernimada isku halaynta	Imtixaanka nooca, maaraynta shahaado bixinta, falanqaynta fashilka, tijaabinta nolosha oo la dedejiyay
Codsiga injineernimada	20 injineer	Naqshadeynta nidaamka PV, kaydinta tamarta, isku dhafka shabakada, O&M	Taageerada farsamada ee macaamiisha, qaabaynta nidaamka, hawlgelinta, tababarka
Xaqiijinta Tayada	40 farsamayaqaan	ISO 9001, ISO 14001, IATF 16949, xakamaynta habka tirakoobka	Hantidhawrka alaab-qeybiyaha, hanti-dhawrka habka, shaybaadhka metrology, tallaabo sax ah

Waa maxay sababta ay u kala soocan yihiin wax soo saarka inverter-kayaga DC

Xaruntayada wax-soo-saarka ayaa ka dhigan20 sano oo takhasus ah ku beddelashada awoodda sawir-maskaxeed, gaarsiinta rogo-rogayaasha ka sarreeya heerarka caalamiga ah iyada oo loo marayo:

Khibrad semiconductor awood: Qaadashada hore ee tignoolajiyada SiC MOSFET, gaaritaanka 99% + hufnaan iyo awood 1500V qaab-dhismeedka nidaamka kaas oo hoos u dhigaya kharashka BOS 15-20%

Is dhexgalka toosan: Isku imaatinka moduleka korantada ee guriga, wax soo saarka qaybta magnetka, iyo isku xirka PCB otomaatiga ah ee hubinaya xakamaynta tayada dhamaystiran iyo adkaysiga silsilada sahayda

Kaabayaasha tijaabada: $10M+ waxa lagu maalgaliyay nidaamyada ATE, qolalka deegaanka, iyo shaybaadhada EMC oo awood u leh inay si buuxda u tijaabiyaan IEC 62109 iyo IEC 61683

Hoggaanka koodhka Grid: U hoggaansanaanta firfircoon ee koodhadhka shabakadda ee kobcaya (IEEE 1547-2018, VDE-AR-N 4110, G99) oo awood u siinaya gelitaanka suuqa ee 100+ waddan

Hal-abuurka tamarta smartXalka kaydinta batteriga isku dhafan, awoodda V2G, iyo warshadaynta tamarta dalwaddii (VPP) ee nidaamyada tamarta jiilka soo socda

Wax soo saarka dhijitaalka ah:Hirgelinta warshadaha 4.0 oo leh raadraac buuxa (qayb ka kooban badeecada la dhammeeyay), falanqaynta tayada saadaalisa, iyo kormeer indho-indhayn oo toos ah oo hubinaya <100ppm heerka cillad

Diiradda la isku halleyn karoNolol naqshadeynta 25-sano ah, tijaabin nololeed oo la dardargeliyay, iyo MTBF goobta laga xaqiijiyay> 100,000 saacadood

View as

Bambada Qorraxda

La xidhiidh CDADA oo aan kuu noqono soo saarahaaga iyo sidoo kale qaybiyaha Soolar Pump Inverter. Alaabtani waa 15kW-3-waji, MPPT-ku-dhexgalsan, looguna talagalay waraabka & bixinta biyaha. Looma baahna shabakad. Ikhtiyaarka IP65, ilaalinta qalalan, iyo la socodka fog Ku habboon beeraha & mashaariicda miyiga.

Daawo Wax Badan >> Soo dir weydiin >>

Inverter DC 0.75kW-630kW

Sida alaab-qeybiye la isku halayn karo, CDADA's DC Inverter 0.75kW-630kW waa heer warshadeed, kontoroolka vector-ku-saleysan ee DSP, qaababka 4 (SVC/VC/V/F/Torque), Modbus, iyo toosin. Loogu talagalay bambooyin, gaadiid-qaadeyaal, qalab-bixiyeyaal & wadiiqooyin sax ah oo sarreeya. Si aad u hesho qiimaha tooska ah ee warshadda iyo xalka OEM, waad nala soo xidhiidhi kartaa.

Daawo Wax Badan >> Soo dir weydiin >>

CDADA waa Inverter DC soo saaraha iyo alaab-qeybiyaha gudaha Shiinaha. Warshadeenu waxay u adeegtaa warshado kala duwan sida nidaamyada korantada, qalabka dhismaha, iyo wax soo saarka warshadaha, iyadoo bixisa xalal OEM/ODM dabacsan.

Talooyin News
