Warshada Jabiya Case Wareega Waara
CDADAwaa soo-saare xirfad leh iyo alaab-qeybiyaha Case Wareegga Wareegga. Taxanaha badeecadan waxa uu ka kooban yahay mid ka mid ah wax-bixintayada asaasiga ah, oo ay taageerto 40 sano oo waayo-aragnimo ah oo ku soo laabanaysa aasaaskeenna. Iyada oo noocyo kala duwan oo moodooyin ah oo u hoggaansamaya heerar badan, iibsadayaasha caalamiga ahi waxay dooran karaan alaabadayada si kalsooni buuxda leh.
Waa maxay Kiis la Habeeyay?
A Jeexinta Kiis Wareegta ah (MCCB)waa qalab isku xidhan, oo xidhan oo ilaalinta korantada yar oo loogu talagalay in lagu ilaaliyo hababka qaybinta korantada ee ka dhanka ah culeyska xad dhaafka ah, wareegyada gaaban, iyo cilada dhulka. Lagu soo koobay gudaha aguri caag ah heerkulbeegga, MCCBs waxay ku shaqeeyaan danab la qiimeeyay ilaa690V AC (50/60Hz)Qiimaynta hadda jirta oo u dhaxaysa10A ilaa 2000A, oo u adeegaya sidii qalabka ilaalinta faraska shaqada ee dhammaan codsiyada warshadaha, ganacsiga, iyo kaabayaasha.
Sifada qeexan ee MCCBs waxay ku jirtaa iyagaqaab dhismeed kiis-Xirmo heerkul sare leh oo balaastig ah kaas oo bixiya dahaarka Heerka II (laba-dahaadh) ee u dhexeeya qaybaha gudaha ee nool iyo interface-ka hawlgalka dibadda. Naqshadani waxay hubinaysaa badbaadada hawlwadeenka iyadoo la ilaalinayo cabbirrada is haysta iyo awoodaha jabinta sare ilaa100kA at 380/415V.
Ka duwanHawada Wareegga Hawada (ACBs), muuqaalada MCCBsnaqshado go'an, oo aan la ilaalin karin(inta badan kiisaska) oo leh habab gudaha ah oo la shaabadeeyey, oo bixiya ilaalin kharash-ool ah oo loogu talagalay wareegyada qaybinta sare halkaasoo aan loo baahnayn dayactir joogto ah.
Qaybaha Alaabta & Habaynta MCCB
| Kala soocidda | Nooca | Kala duwanaanshaha hadda | Astaamaha Muhiimka ah |
| Tiknoolajiyada Cutubka Safarka | Kuleylka-Magnetic | 10A - 800A | Bimetallic overload + magnetic-gaaban, goobo go'an/la hagaajin karo, dhaqaale |
| Electronic LSIG | 100A - 2000A | Qalloocyada la hagaajin karo, isgaadhsiinta karti leh, ilaalin sax ah | |
| Habka Rakibaadda | go'an | 10A - 2000A | Isku xirka baska tooska ah, rakibaadda joogtada ah, qiimaha ugu hooseeya |
| Plug-in | 100A - 1600A | Jir-ku-salaysan, lagala bixi karo dayactirka, hoos u dhaca wakhtiga | |
| La bixi karo | 250A - 2000A | Habka-soo-baxa, awoodda go'doominta oo buuxda, xirmooyinka badbaadada | |
| Habaynta Cirifka | 2-Cul | 10A - 800A | Nidaamyada hal-waji, codsiyada DC |
| 3-Cul | 10A - 2000A | Codsiyada warshadaha ee saddex-waji ee caadiga ah | |
| 4-Cul | 16A - 2000A | Saddex waji oo leh ilaalin dhexdhexaad ah, dejin dhexdhexaad ah oo la hagaajin karo (50-100%) | |
| Jebinta Awoodda | Heerka (S1) | 16kA - 50kA | Qaybinta guud, shabakadaha heerka khaladka hooseeya |
| Sare (H1) | 65kA - 85kA | Qaybaha warshadaha, xarumaha xakamaynta matoorka | |
| Sare-sare (H2/H3) | 100kA - 200kA | Korantada, warshadaha culus, kaabayaasha | |
| Qaybta Xulashada | Qaybta A | ≤400A | Ma jiro daahitaan ula kac ah oo waqti gaaban ah, safar degdeg ah |
| Qaybta B | ≥400A | Iska caabin waqti-gaaban (Icw), isuduwidda xulashada leh dib u dhac |
Qaab-dhismeedka Cabbirka Qaab-dhismeedka:
Qaabka is haysta: 10A - 160A (Ku dhejinta Panelboard, DIN tareen ku habboon)
Dhex dhexaad: 160A - 630A ( Ilaalinta mootada, looxyada qaybinta)
Qaab weyn: 630A - 1600A (qaybinta ugu weyn, nidaamka baska)
Maxi Frame: 1600A - 2000A (Kaabayaasha, Korontada)
Hawlaha Muhiimka ah & Awoodaha Ilaalinta
Hawlaha Ilaalinta Asaasiga ah
| Shaqada | Farsamaynta | Qiyaasaha Farsamada |
| Ilaalinta culayska badan (L) | Balaadhinta kulaylka xariijimaha bimetallic | 0.7 - 1.0 × Goobta, qalooca wakhtiga, 40°C tixraaca deegaanka |
| Wareeg gaaban isla markiiba (I) | Electromagnetic solenoid plunger | go'an: 5-10 × gudaha, la hagaajin karo: 2-15 × gudaha, <20ms hawlgalka |
| Dib-u-dhac-Gaaban (S) | Wareegga waqtiga elektarooniga ah | 0.1s - 0.5s daahitaan, 2-10 × Marka la dejinayo, isku dubaridka xulashada |
| Cilada Dhulka (G) | Dareenka guud ee hadda jira | 20-100% gudaha, 0.1s-1.0s daahitaanka, dheelitirka ubucda ama habka hadhaaga |
| Xadaynta Hadda | Nidaamka xiriirka dib u celinta xawaaraha sare | <10ms wakhtiga furitaanka |
| Siideynta Korontada Yar | Gariiradda dareemaha korantada | 35-70% Aan jabin, 0.1s-3s dib u dhac lagu hagaajin karo |
Qaybaha Safarka Elektarooniga ah ee Sare ee Tilmaamaha
Siidaynta microprocessor-ka casriga ah ayaa bixiya:
Dareenka dhabta ah ee RMS: Qiyaasta saxda ah ee qaab-dhismeedka mawjadaha qalloocan
Dhexdhexaadinta Aaga Xulashada (ZSI)Isku-dubaridka baska iyo qalabka soo galaya
Nidaamyada isgaarsiinta: Modbus, Profibus, Ethernet/IP, BACnet dhexgalka
La socodka tayada awooda: Voltage, current, factor power, harmonics, energy metering
Dayactirka saadaalintaTilmaamaha xidhashada xidhiidhka, miiska hawlgalka, la socodka heerkulka
Deegaanka Codsiga & Kiisaska Isticmaalka
| Qaybta Warshadaha | Codsiga gaarka ah | Tilmaamaha Caadiga ah |
| Dhismayaasha Ganacsiga | Loox-qaybinta muhiimka ah, sabuuradaha, qiyaasaha kiraystaha | 125A-800A, thermal-magnetic, plug-in, 25-65kA Icu |
| Xarumaha Xogta | Qaybinta UPS, ilaalinta PDU, qasabadaha baska | 250A-1600A, elegtaroonig ah LSIG, 100kA+ Icu, isgaarsiinta karti leh |
| Dhirta wax-soo-saarka | Xarumaha xakamaynta mootooyinka, qalabka mashiinka, qalabka alxanka | 63A-630A, qalooca ilaalinta mootada, xaddidaadda hadda, 65kA Icu |
| Saliidda & Gaaska | Riigagga qodista, warshadaha sifaynta, meelaha xeebaha ka baxsan | 400A-1600A, kulaylaha (T2), daxalka u adkaysta, 85kA Icu |
| Tamarta la cusboonaysiin karo | Sanduuqyada isku-darka qorraxda, qalabka marawaxadaha dabaysha, kaydinta baytariga | 250A-1250A, 1000V DC karti u leh, heerkulka la dheereeyey (-25°C ilaa +70°C) |
| Kaabayaasha dhaqaalaha | Awoodda jiidista metro, nidaamyada boorsooyinka garoonka, daaweynta biyaha | 800A-2000A, laga bixi karo, adkaysiga farsamada sare (10,000+ wareegyo) |
| Daryeelka caafimaadka | Qaybinta ugu weyn ee isbitaalka, qalabka sawirka caafimaadka, awooda degdega ah | 400A-1600A, 4-tiro leh ilaalin dhexdhexaad ah, ku habboonaanta wareejinta labada ilood |
Habka Wax-soo-saarka & Socodka Shaqo ee Wax-soo-saarka
Taxanaha Waxsoosaarka Saxda ah
Qalabka Ceyriinka ah ee IQC → Qalabaynta Balaastigga Heerkulbeegga → Farsamaynta Nidaamka Xiriirka → Arc Chute Assembly → Isdhexgalka Mechanism → Rakibaadda Cutubka Safarka → Golaha Koowaad → Qalabaynta & Tijaabada → QC kama dambaysta ah
Marxaladaha Wax-soo-saarka Muhiimka ah
| Marxalada | Faahfaahinta Habraaca | Qodobbada Xakamaynta Tayada |
| Naqshadeynta Balaastiigga heerkulbeegga | BMC (Bulk Molding Compound) isku durid qaabaynta 150-180°C, 1500-3000 bar cadaadiska, 60-120s wakhtiga daaweynta | Dulqaadka cabbirka ± 0.1mm, dusha sare ee Ra 1.6, tusmada raadraaca> 600V, UL 94 V-0 ololka |
| Samaynta Nidaamka Xiriirka | Xidhiidhada naxaasta ku dahaadhan ee qalinka ah (AgNi 90/10 ama AgCdO), gacmaha xidhiidhka ee farsamaysan ee CNC, ee jawiga nitrogen | Dhumucdiisuna waxay tahay 8-12μm (XRF waa la xaqiijiyay), iska caabinta xidhiidhka <100μΩ, adkaanta HV 100-150 |
| Dhismaha Arc Chute | Taarikada birta kala qaybisa (ferromagnetic), shabagyada arc dhoobada, qolalka deionizing, joomatari la hagaajiyey | Xaqiijinta cufnaanta qulqulka magnetic, xoogga dielectric 2.5kV, joogteynta cabbirka ± 0.05mm |
| Golaha Mechanism Operating | Nidaamyada dallacaadda birta guga, hababka degdegga ah loo sameeyo/dhakhso u jebinta, ka-hortagga safar-la'aanta, ilaha kaydinta tamarta | Joogteynta Torque ± 5%, dulqaadka farsamada 10,000 wareegyada, xoogga safarka 5-15N |
| Isku dhafka Cutubka Safarka | Isku-habaynta kuleylka bimetal (Inconel/naxaas), dabaysha gariiradda birta ah, kulanka PCB elegtrooniga ah, barnaamijyada firmware | Xaqiijinta qalooca wakhtiga-hadda, ± 10% saxnaanta hadda, ± 20% saxnaanta wakhtiga 2× In |
| Golaha kama dambaysta ah | Dhisme qaabaysan, calaamadaynta wareegtada terminal, xidhida daboolida hagaajinta, is dhexgalka farsamada gacanta | Dielectric adkeysi 3kV/1min, caabbinta dahaarka>100MΩ, xaqiijinta toosinta xidhiidhka |
Alaabta Ceyriinka Aasaasiga ah & Tilmaamaha Qaybaha
| Qayb | Tilmaamaha Qalabka | Heerarka alaab-qeybiyaha | Guryaha Furaha |
| Guriyeynta Case-qaabaysan | BMC (Bulk Molding Compound) DMC-2 ama polyester-ka lagu xoojiyay fiberglass-ka SMC | IEC 60664-1, UL 94 V-0 | Tilmaanta raadraaca> 600V, iska caabin kulaylka 180°C, xoogga dielectric>15kV/mm |
| Xiriirada ugu muhiimsan | Naxaasta Electrolytic (Cu-ETP) C11000 + Dahaarka Silver-nickel (AgNi 90/10) | ASTM B152, IEC 60368 | Waxqabadka ≥100% IACS, caabbinta nabaadguurka arc, xasilloonida oksaydhka |
| Xidhiidhada Arcing | Silver-tungsten carbide (AgWC 70/30) ama Copper-tungsten (CuW 80/20) | ASTM B702 | Iska caabbinta nabaad-guurka sare, alxanka alxanka oo hooseeya, iska caabin xiriir <200μΩ |
| La xidhiidh Springs | Naxaasta Beryllium (CuBe2 C17200) ama birta aan la taaban karin 301 | ASTM B196, ASTM A240 | Nolosha daalka>20,000 wareeg, cadaadis xiriir joogto ah 8-12N/mm² |
| Arc Splitter Plates | Bir qabow-duuban SPCC-SD oo leh daahan dhoobo ah | JIS G 3141 | Permeability Magnetic>2000, iska caabin kulayl>1000°C, hufnaanta deminta arc |
| Ilaha Hawlgelinta | Birta kaarboonka ee saliidda leh ee SWOSC-V ama 17-7PH birta aan lahayn | JIS G 3560 | Xoog xajin 1800-2000MPa, iska caabin nasasho <5% at 20 sano |
| Qaybaha bimetallic | Inconel/Copper composite (ASTM TM2) ama bir/naxaas la dhaafiyay | ASTM B388 | Heerka leexashada 0.15-0.25mm/°C, xasilloonida ± 3% in ka badan 20 sano |
| Qaybaha Elektarooniga ah | PCB-yada heerka wershadaha, dareemayaasha saamaynta Hall-ka, ARM Cortex soo-saareyaasha | IEC 60721-3-3, IEC 61000 | Heerkulka shaqada -25°C ilaa +70°C, heerka difaaca EMC 3 |
| Terminalka | Naxaasta T2 (C11000) oo leh daasad ama dahaadh nikkel ah | ASTM B187 | Cufnaanta hadda 1.2-1.5 A/mm², wareeggu u adkaysanayo 15-50Nm |
U Hogaansanaanta Heerarka & Nidaamyada Imtixaanka
Qaabdhismeedka Heerarka Caalamiga ah
| Heerka | Baaxadda | Qiimaynta lagu dabaqi karo |
| IEC 60947-2 | Qalabka korantada-hooseeya - Wareeg-jareyaasha | Saldhig caalami ah oo loogu talagalay naqshadeynta, waxqabadka, tijaabinta MCCB |
| EN 60947-2 | Nooca Yurub ee la is waafajiyay | Calaamadeynta CE, u hoggaansanaanta suuqa EU |
| GB/T 14048.2 | Heerarka qaranka Shiinaha oo u dhigma | Shahaadada CCC, suuqa Shiinaha |
Tijaabooyinka Nooca qasabka ah (IEC 60947-2)
| Qaybta Imtixaanka | Imtixaan gaar ah | Shuruudaha Ogolaanshaha |
| Waxqabadka Dielectric | Joogsiga awoodda-soo noqnoqda (2kV-3kV/1 daqiiqo) | Burbur la'aan, majiro toosan, dareere hadda <2mA |
| Korontada u adkeysan karta xamaasadda (8kV 1.2/50μs) | Wax dareere ah oo carqaladaynaya ma jiro | |
| Heerkulka Sare u kaca | Joogtada joogtada ah ee lagu qiimeeyay In | Terminalka ≤80K (lacag-lacag leh), ≤65K (naxaas qaawan), kiis ≤40K |
| Jebinta Wareeg-gaaban | Awood jabinta kama dambaysta ah (Icu) - 3 hawlgal | Joojin guul leh, ma jirto dhaawac joogto ah, soo kabashada dielectric |
| Awood jebinta adeegga (Ics = 50-100% Icu) | 3 hawlgal, adeeg sii socda, xidhidh xidhidh <50% | |
| Iska caabin-waqti gaaban | Icw ee 0.5s ama 1s (Qaybta B kaliya) | Ma jiro qallafsanaan, alxanka xiriirka, ama waxyeellada dahaarka |
| Adkeysiga Makaanikada | Hawlgallada aan rarka lahayn (sida caadiga ah 8,000-20,000 wareegyada) | <5% leexleexad-beegtiyeedka, ma jiro cillad farsamo, joogtaynta qulqulka |
| Adkeysiga Korantada | Ku rar hawlaha hadda la qiimeeyay (sida caadiga ah 1,000-6,000 wareeg) | Xirashada xiritaanka <50%, sifooyinka safarka waa la ilaaliyaa |
| Xaqiijinta Qaybta Safarka | Siideynta xad dhaafka ah ee 1.05× Gudaha (safar la'aan), 1.3× Gudaha (safar <2h) | U hoggaansanaanta waqtiga safarka caadiga ah |
| Siideynta gaaban ee wareegga 5× In, 10× In | Hawlgal degdeg ah <0.1s | |
| Xadaynta Hadda | Xaqiijinta tamarta (I²t). | Xadaynta ugu sarreysa ee hadda, dhimista tamarta vs. mustaqbalka |
Xakamaynta Tayada Warshada & Heerarka Kormeerka
Alaabta soo socota ee QC (IQC)
| Qalab | Walxaha Kormeerka | Qorshaha Muunada | Qalabka |
| Dhismaha caagagga ah ee BMC | Waxyaabaha ku jira fiber-ka galaaska, viscosity, sifooyinka daaweynta | Dufcaddiiba, xaqiijinta COA | Rheometer, falanqeeye DSC |
| Xiriirada naxaasta | Nadiifinta kiimikaad (≥99.9%), dhaqdhaqaaqa, adkaanta | AQL 0.65, ISO 2859 | Spectrometer, mitir conductivity |
| Dajinta qalinka ah | Dhumucda 8-12μm (XRF), adhesion (tijaabada cajalad), porosity | 100% muuqaal, 5% hubinta XRF | Fluorescence X-ray, mikroskoob biraha ah |
| Xariijimaha bimetallic | Heerka leexashada, xasilloonida, iska caabinta | Dufcaddiiba, tijaabada muunad | Foornada kulaylka, buundada iska caabinta |
| Qaybaha birta | Adag HRC 38-45, dulqaad cabbir | AQL 1.0 | Tijaabada adag ee Rockwell, CMM |
| Qaybaha elegtarooniga ah | Imtixaanka shaqada, xaqiijinta halbeegga, iibinta | 100% AOI, 5% shaqaynaysa | Mitirka LCR, oscilloscope, raajada |
In-Process Quality Control (IPQC)
| Saldhig | Xakamaynta Xakamaynta | Soo noqnoqda | Habka |
| qaabaynta cirbada | Heerkulka 150-180 ° C, cadaadis 1500-3000 bar, waqtiga daaweynta | Wareeg kasta | Kormeerka SCADA, jaantusyada SPC |
| Kulanka xidhiidhka | Farqiga xiriirka, cadaadiska, toosinta, dhumucda qalinka | 100kii cutubba | Qiyaasta xoogga, isbarbardhigga indhaha, XRF |
| Arc shute shirka | Kala dheeraynta saxanka kala dheeraynta, hufnaanta wareegga birlabeedka | 50kii cutubba | Tag/ma-tag cabbirrada, mitirka cufnaanta qulqulka |
| Habaynta farsamada | Xoog dallaca guga, shaqo aan safar lahayn, beddel hawlgalka | Unug kasta | Kursiga tijaabinta otomaatiga ah, qaloocyada baro-kicinta |
| Imtixaanka cutubka safarka | Xaqiijinta qalooca wakhtiga-hadda, magdhowga deegaanka | 100% | Tijaabada durista aasaasiga ah (500A-10,000A), xog-qorista |
In-Process Quality Control (IPQC)
| Shayga Tijaabada | Heerka | Cabbirka Tusaalaha |
| Dielectric adkeysiga danab | 2.5kV AC/1 daqiiqo (≤690V la qiimeeyay) | 100% |
| Iska caabin dahaarka | >100MΩ @ 500V DC | 100% |
| Iska caabin xiriir | <100μΩ tiirkiiba marka lagu qiimeeyay gudaha | 100% |
| Astaamaha waqtiga | Waqtiga safarka/xiran, dulqaadka farsamada 5 wareegyo | 100% |
| Xaqiijinta qalooca safarka | 1.05× Gudaha (safar la'aan), 1.3× gudaha ama 2.5× In (safar) | 100% |
| Kormeer muuqaal & muuqaal ah | Cilladaha eber ee cabbirrada muhiimka ah (qiimaynta IP, calaamadaynta) | 100% |
Kaabayaasha Wax-soo-saarka & Awoodda Wax-soo-saarka
Qalab Wax-soo-saar heersare ah
| Qaybta Qalabka | Tilmaamaha Mashiinka | Shaqada | Awood |
| Qaabaynta Cirridka Thermosetting | 300-ton BMC madbacada duritaanka (Buhler/Engel) | Kiiska MCCB, daboolka, wax soo saarka guryaha ee arc chute | 2,000 kiis/maalintii |
| Xarunta Mashiinka ee CNC | 5- dhidib ah xarunta mashiinka toosan (Mazak/DMG Mori) | Mashiinka xidhiidhka saxda ah, joomatariyada adag | 8,000 xidhidh xidhidh /bishii |
| Shaabadeynta & Samaynta | 100-tan oo horusocod dhimis ah | Busbar Copper samaynta, xiriir wax soo saarka guga | 15,000 oo qaybood/maalintii |
| Daaweynta Dusha sare | Khad lacag ah oo toos ah | Kontoroolka dhumucda dahaadhka xidhiidhka 8-12μm | 3,000 kg/maalintii |
| Golaha | Unugyada ururinta shaqada | Isku-dubbaridka farsamada, joogteynta hawlgallada muhiimka ah | 1,000 unug/maalintii sadkiiba |
| Qalabka Tijaabada | Tijaabada duridda aasaasiga ah waxay dejisay 10,000A | Xaqiijinta safarka hadda-sare, duubista qalooca | 300 unug/maalintii |
| Kursiga tijaabada adkeysiga makaanikada (20,000 wareeg oo otomaatig ah) | Imtixaanka nolosha, xidho la socodka | 100 unug oo isku mar ah | |
| Qolka imtixaanka EMC (3m/10m, Teseq/ Keysight) | Xaqiijinta waafaqid koronto | 50 unug/maalintii |
Awoodda Wax-soo-saarka & Waqtiyada Hogaaminta
| Qaybta Alaabta | Awoodda bisha | Waqtiga Hoggaanka caadiga ah | Awoodda Dalabka Degdegga ah |
| Compact MCCB (10A-160A) | 50,000 oo unug | 4-5 toddobaad | 3 maalmood (qaybaha kaydka) |
| Dhexdhexaad MCCB (160A-630A) | 20,000 oo unug | 4-5 toddobaad | 5 maalmood |
| MCCB weyn (630A-1600A) | 8,000 oo unug | 4-5 toddobaad | 7 maalmood |
| Maxi MCCB (1600A-2000A) | 2,000 oo unug | 4-6 toddobaad | 10 maalmood |
| Qaybaha Safarka Elektarooniga ah | 15,000 oo unug | 4-5 toddobaad | 3 maalmood |
Injineerinka & Qaabdhismeedka Kooxda Farsamada
| Waaxda | Shaqaale | Khabiir | Waajibaadka |
| Injineerinka R&D | 5 injineer | Nidaamyada awoodda, naqshadda elektromagnetic, software-ku-xidhan, sayniska alaabta | Horumarinta badeecada cusub, habeynta, faylalka patent-ka (50+ shatiyada) |
| Farsamada injineernimada | 20 injineer | Naqshad heerkulbeeg ah, farsamayn sax ah, automation, wax soo saar caato ah | Hagaajinta khadka wax soo saarka, dukumeentiga SOP, horumarinta wax-soosaarka (> 98%) |
| Tijaabinta & Xaqiijinta | 15 injineer | Tijaabada awoodda sare, jilidda deegaanka, injineernimada isku halaynta, EMC | Iskuduwidda tijaabada nooca, falanqaynta fashilka, maaraynta shahaado bixinta (IEC, UL, CCC) |
| Codsiga injineernimada | 12 injineer | Ilaalinta nidaamka awoodda, isuduwidda xulashada, bilaabista mootada, hawlgelinta goobta | Taageerada farsamada ee macaamiisha, naqshadaynta nidaamka, hawlgelinta goobta |
| Xaqiijinta Tayada | 25 farsamayaqaan | ISO 9001, ISO 14001, IATF 16949, Xakamaynta habka tirakoobka (SPC) | Hantidhawrka alaab-qeybiyaha, hanti-dhawrka nidaamka, maaraynta ficilka sixitaanka, shaybaadhka cabbirka |
Shahaadooyinka & Dukumentiyada U Hogaansanaanta
| Shahaado | Soo saarida Jirka | Baaxadda | ansaxnimada |
| ISO 9001:2015 | TÜV SÜD / SGS / Bureau Veritas | Nidaamka maaraynta tayada | Ilaalinta sanadlaha ah |
| Imtixaanka Nooca IEC 60947-2 | KEMA/DEKRA, Intertek | Badbaadada badeecada & waxqabadka | Taxane kasta |
| CCC (Shiinaha) | CQC (Xarunta Shahaadada Tayada Shiinaha) | Shahaadada qasabka ah ee Shiinaha | 5-sano oo ansax ah |
| Calaamadeynta CE | Internetka Jirka La Ogaysiiyay | Helitaanka suuqa EU | Naqshad ku tiirsan |
Waa maxay sababta soo saaristayada MCCB ay u kala fog tahay
Xaruntayada wax-soo-saarka ayaa ka dhigan40 sano oo takhasus ahsoo saarista xadhig jebiye kiis la qaabeeyey, oo keenaya alaab ka sarreysa heerarka caalamiga ah iyada oo loo marayo:
Is dhexgalka toosanIsku darka BMC-guriga gudihiisa, xidhidh sax ah oo sax ah, iyo soo saarista unug safar oo elektaroonig ah ayaa hubiya in la hubiyo tayada tayada iyo kor u qaadida
Tignoolajiyada wax-qabashada ee horumarsan: 300-tan tuubooyin heerkulbeeg ah oo lagu durayo oo leh qalab si toos ah u maamula iyo la socodka habka wakhtiga-dhabta ah (isku-dhafka SCADA)
Kaabayaasha tijaabada: $3M+ waxa lagu maalgaliyay shaybaarro awood sare leh oo awood u leh 200kA xaqiijinta gaaban ee wareegga gaaban iyo jilitaanka deegaanka oo dhamaystiran
Istaraatiijiyada shahaadada caalamiga ahU hoggaansanaanta heerarka kala duwan ee awood u siinaya gelitaanka suuq aan kala go 'lahayn ee 100+ waddan iyada oo aan baaritaan dheeraad ah lahayn
Kartida wax ka beddelka: Laga soo bilaabo dahaarka khaaska ah ee kulaylaha ilaa borotokoolka isgaarsiineed ee gaarka ah iyo qaabaynta kor u qaadista gaarka ah, waxaanu injineer ku samaynay qeexidaada
Tilmaamaha farsamada, daraasaadka isuduwidda ee xulashada, qalooca ilaalinta mootada, ama jadwalka xisaabinta warshada, kooxdayada injineernimada ayaa bixiya la tashi toos ah si loo hubiyo in qaab dhismeedka awood qaybsigaagu uu buuxiyo shuruudaha ilaalinta iyo ujeedooyinka sii wadida shaqada.
- View as
Nooca Go'an ee Case Wareegga ah
Xigasho tayo sare leh iyo horumarsan Nooca Go'an ee Case Wareega Xadhkaha goostay (MCCB) ee Shanghai DADA Electric-shahaadad (CE, CB, ASTA), ilaalinta kulaylka-magnetic, 12.5A-1600A. Ku habboon muraayadaha warshadaha & ganacsiga. Fudud DIN-tareen ama dusha sare. OEM & dalabaadka badan waa soo dhawaynayaan, u door CDADA alaab-qeybiye ahaan si kalsooni leh.
CM1 Case Wareega Jabiya
CDADA CM1 Molded Case Circuit Breaker (MCCB) waxaa loo dhisay wax soo iibsiga badan, oo leh shahaado IEC60947-2 iyo waxqabadka xasilloon ee nidaamyada tamarta warshadaha. CM1 MCCB waxay isticmaashaa qaab-dhismeed aad u sarreeya iyo hannaan la isku halayn karo, oo ay fududahay in la rakibo oo la ilaaliyo. Waxay isku daraysaa ilaalinta caqliga leh naqshad waara, hubinta nolosha adeegga dheer ee qaybinta awoodda iyo codsiyada warshadaha culus.

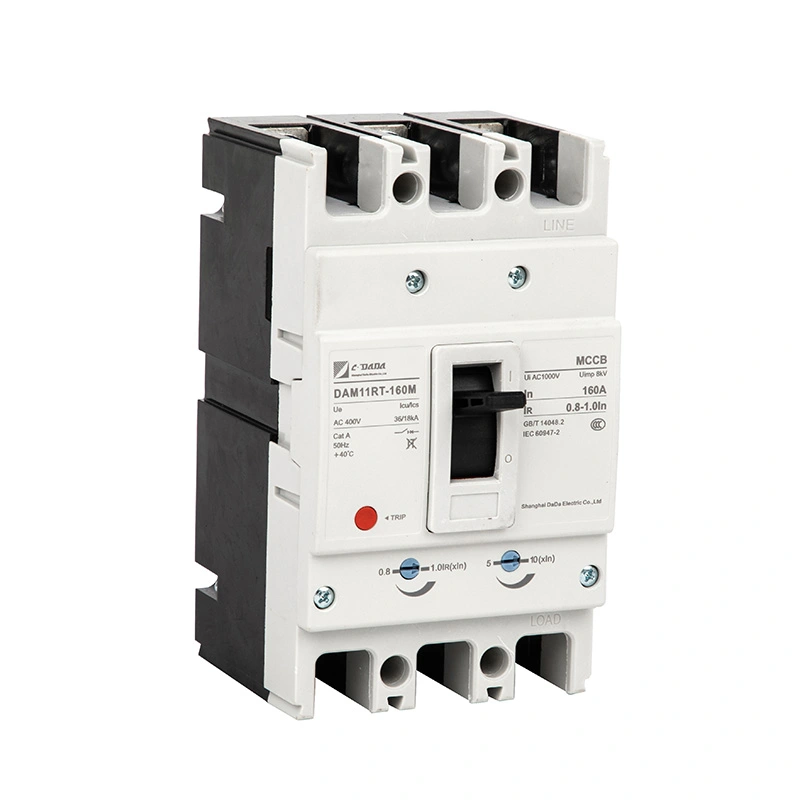

160A Thermal Magnetic La hagaajin karo MCCB
CDADA waa soo saaraha 160A Thermal Magnetic MCCB la hagaajin karo, alaabtayadu waxay ku habboon tahay wax iibsiga badan, kiis heersare ah oo qaabaysan oo shahaado leh oo leh IEC60947-2 qaybinta awoodda warshadaha. MCCB Tani waxay isticmaashaa qaab dhismeedka xaddidan ee hadda jira iyo qalabyada modular, fududahay in la rakibo oo la ilaaliyo. Waxay isku daraysaa safar la hagaajin karo oo leh naqshad xiriir la leh, gaaritaanka nolol dheer iyo ilaalinta wareegga xasilloon.
125A Case Wareegta ah oo la hagaajin karo
125A Case Wareegga La Hagaajinayo waa mid ka mid ah alaabada CDADA, sida warshad xirfad leh, badeecadayadu waa wax-qabad sare oo leh shahaadada IEC60947-2 ee qaybinta awood la isku halayn karo. Waxay ka kooban tahay nakhshad xaddidaysa hadda iyo qalabyo modular ah, oo ay fududahay in la rakibo lana ilaaliyo. Waxay isku daraysaa safar la hagaajin karo oo leh qaab dhismeedka xiriirka la aqoonsan yahay, gaaritaanka nolosha dheer iyo ilaalinta xasilloon ee wareegyada warshadaha.
Thermal Magnetic La hagaajin karo MCCB
Isha tayada sare ee Thermal Magnetic Adjustable MCCB ee Shanghai DADA Electric, soo saaraha xirfad leh oo leh 40+ sano oo waayo-aragnimo ah. Alaabtayadu waa shahaado (CE, CB, ASTA), oo leh kuleyl la hagaajin karo (70-100% In) & magnetic (5-10× In) goobaha. Ku habboon ilaalinta saxda ah ee muraayadaha warshadaha. 250A ilaa 1600A, 3P/4P, is haysta & caalami ahaan u hogaansan
Kuleyl la hagaajin karo oo kiis wareeg ah
Soo hel CDADA DAM1 Taxanaha Kulaylka La Isku Halayn Karo ee Case Wareega Xadhkaha goostay ee warshadda la isku halayn karo, Shanghai DADA Electric — shahaado leh (ASTA, KEMA, CE) iyo goobaha kulaylka la hagaajin karo (70-100% gudaha). Ku habboon ilaalinta culeyska saxda ah ee codsiyada warshadaha. Lagu heli karo qaabaynta 3P/4P ilaa 1600A at 400V/415V. Ku fiican OEM-yada iyo iibsadayaasha badan.
CDADA waa Case Wareega Jabiya soo saaraha iyo alaab-qeybiyaha gudaha Shiinaha. Warshadeenu waxay u adeegtaa warshado kala duwan sida nidaamyada korantada, qalabka dhismaha, iyo wax soo saarka warshadaha, iyadoo bixisa xalal OEM/ODM dabacsan.
