Beddelka Tareenka ee DIN 125A
Iibso CDADA DIN Rail Changeover Switch 125A, sida soo saaraha Shiinaha oo leh 40+ sano oo waayo-aragnimo ah, badeecadeenu waa IEC60947-3 shahaado, 3-boos (I-O-II), oo loogu talagalay wareejinta ilaha tamarta laba-geesoodka ah ilaa 400V. Buug-gacmeedka, DIN-ku-xidhan, oo ku habboon kaydka koronto-dhaliyaha & muraayadaha warshadaha.

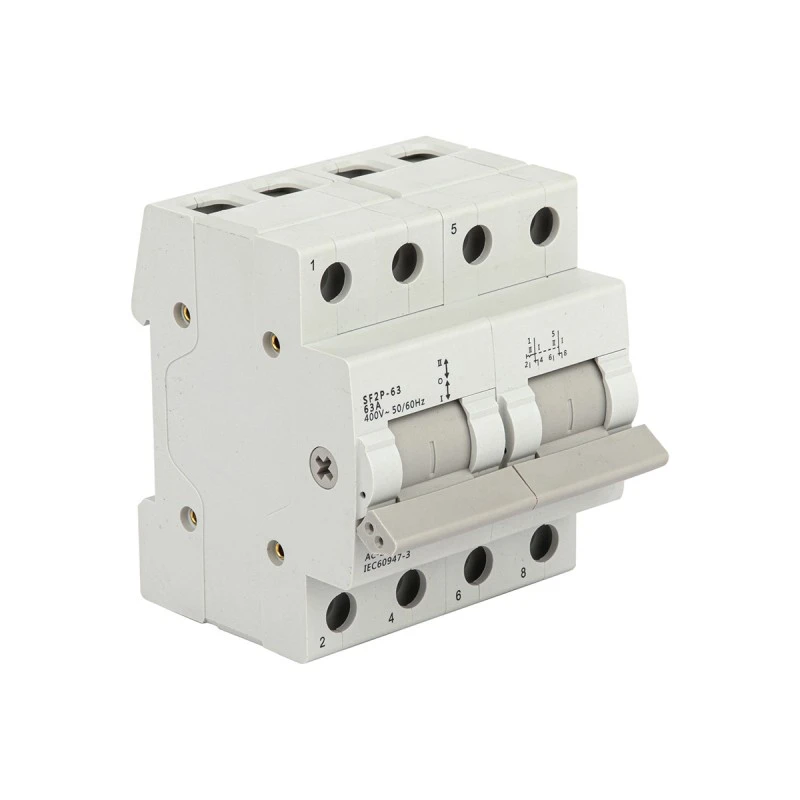

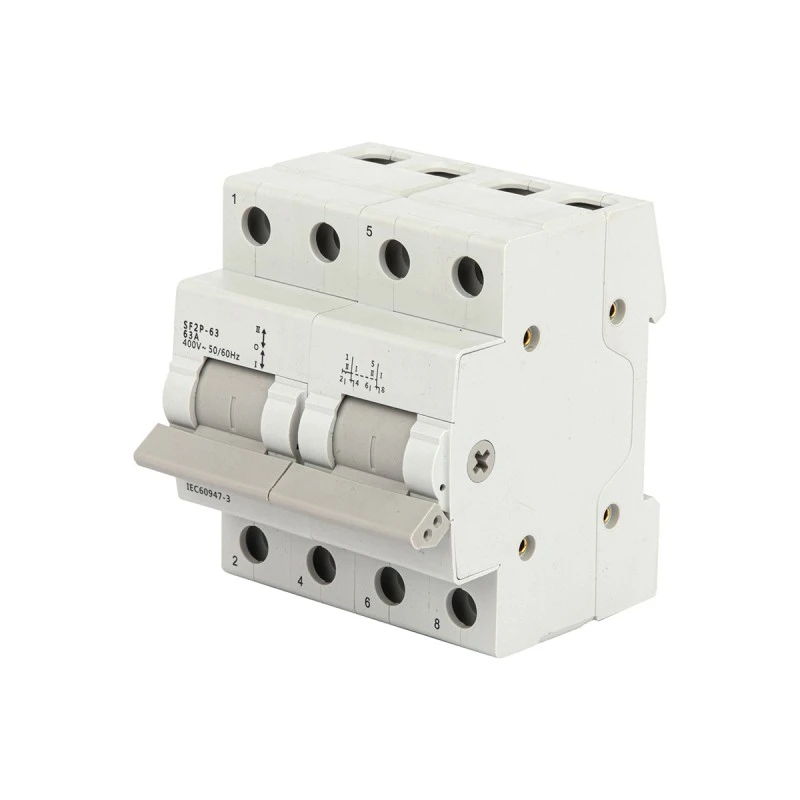

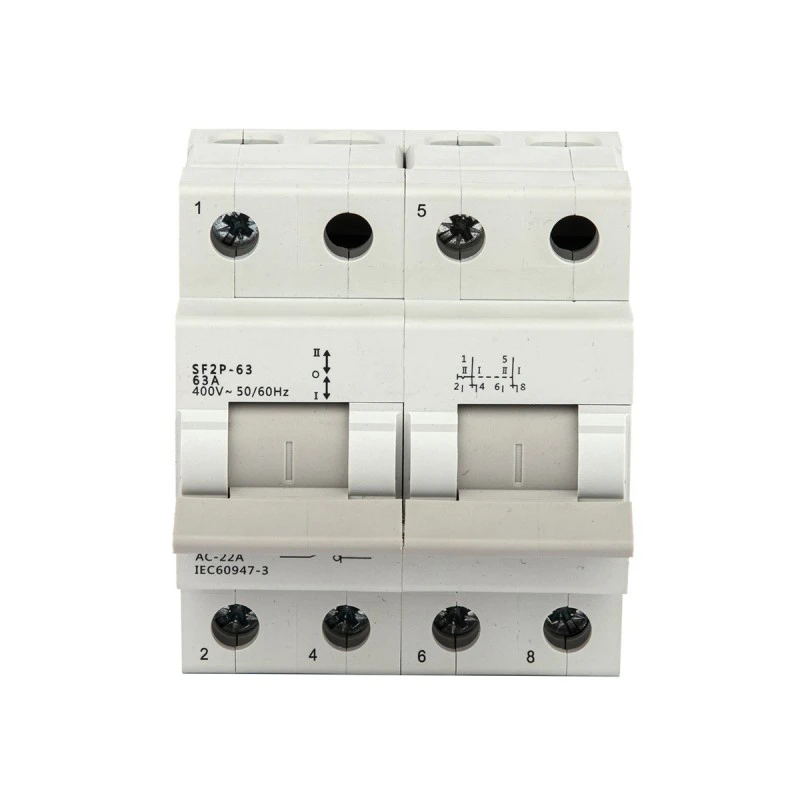

CDADA SF Series DIN Rail Changeover Switch 125A waa mid adag, gacanta lagu maamulo xal beddelka loogu talagalay Shanghai DADA Electric CO., LTD il koronto oo la isku halleyn karo ama beddelka culeyska ee codsiyada ganacsiga, warshadaha, iyo kaabayaasha. U hoggaansanaanta IEC 60947-3 iyo EN 60947-3, beddelkaani wuxuu taageeraa nidaamyada AC 50/60Hz ilaa 400V wuxuuna qabtaa qulqulka joogtada ah ilaa 125A ee hoos yimaada qaybta adeegsiga AC-22A (culays iska caabin isku dhafan iyo soo kicin).
Muujinaya gacan-qabsi cad oo 3-meel ah (I - OFF - II), waxay awood u siinaysaa beddelaad badbaado leh oo u dhexeeya koronto-dhaliye iyo koronto-dhaliye, laba-badamiyayaal, ama wareegyo aan badnayn, halka booska OFF-da ee xarunta uu hubinayo go'doon dhammaystiran-muhiim u ah dayactirka iyo badbaadada. Naqshadeynta heerka caadiga ah ee TH35 DIN tareennada, waxay si aan kala go 'lahayn ula midowdaa guddiyada qaybinta casriga ah oo ay weheliso MCBs, xiriiriyeyaasha, iyo ilaaliyayaasha qallafsan.
Iyada oo la xidhiidha xidhiidhada tayada sare leh, hab-samaynta degdega ah ee guga lagu caawiyo, iyo qaybo gudaha ah oo sax ah, qaabka 125A wuxuu bixiyaa 8,500 hawlgallada farsamada iyo 1,500 wareegyada korantada ee xaaladaha la qiimeeyay. Fiiro gaar ah: waxay ka maqan tahay qolka daminta ee arc, markaa waa in lagu isticmaalo fiyuusyada korka ama fiilooyinka wareegga si loo ilaaliyo wareegga gaaban.
Tilmaamaha Muhiimka ah (Model 125A)
| Qaabka: | Taxanaha SF DIN Tareenka Bedelka Bedelka - 125A |
| Summada: | CDADA | Soo saaraha: Shanghai DADA Electric CO., LTD |
| Tiirarka: | Waxaa lagu heli karaa 1P, 2P, 3P, 4P (sheeg haddii loo baahdo) |
| Hadda la qiimeeyay: | 125A (u leexleex ilaa 100A haddii uu jiro>40°C) |
| Voltage la qiimeeyay: | 230V / 400V AC, 50/60Hz |
| Korontada dahaarka (Ui): | 500V |
| Qaybta ka faa'iidaysiga: | AC-22A |
| Wakhtiga Gaaban ee Joogtada ah (Icw): | 12 × 125A = 1, 500A 1 sekan |
| Awood Samaynta: | 20 × 125A = 2, 500A at t=0.1s |
| Nolosha Makaanikada: | 8,500 hawlgal |
| Nolosha Korontada: | 1, 500 oo hawlgal ah (load hoos) |
| Heerka Wasakhowga: | II |
| Koritaanka: | TH35 DIN tareenada, rakibida toosan oo kaliya |
| Hawlgalka: | Gacanta 3-meelood ee gacanta ah (I - O - II) |
| Terminalka: | Cable ama baska, ugu badnaan 50mm² silig naxaas ah |
| Adkeynta Torque: | 3.5 Nm |
| U Hogaansanaanta Badbaadada: | IEC 60947-3, EN 60947-3 |
| Joojinta Arc: | ❌ Ma jiro qol qaanso → ma aha khalkhalka hadda jira |
Maxaad u dooratay CDADA DIN Tareenka Beddelka 125A?
★ Kalsoonida Hadda Sare
Loogu talagalay shaqada 125A ee joogtada ah—ku habboon bambooyin waaweyn, unugyo HVAC, ama nidaamyada kaydinta xogta xarunta.
★ Go'doon dhab ah oo leh boos ka baxsan
Meesha Xarunta "O" waxay ka saartaa labada ilood, iyadoo meesha ka saaraysa khatarta dib-u-celinta ama tamarta shilalka ah.
★ DIN-Tareen U Diyaarsan Panels Casriga ah
Badbaadiya meel bannaan oo ay fududayso rakibaadda looxyada qaybinta is haysta ama modular ah.
★ Dhismaha heer-warshadeed
Xidhiidhada gu'ga ku raran, dunta subagga leh, iyo 50mm² awoodda joogsiga waxay xaqiijinayaan xasilloonida muddada-dheer.
★ U Hogaansanaanta Heerarka Caalamiga ah
shahaado siisay IEC 60947-3-oo aduunka oo dhan laga aqbalay isticmaalka ganacsiga iyo warshadaha iftiinka.
★ Hagidda Hawlgalka Badbaadada ah
Waxaa ku jira talooyinka gacan-ku-dheeraynta ee 125A-waxay xaqiijisaa la xakameeyey, beddelka safar-buuxa.
Codsiyada caadiga ah
Wareejinta Korontada Degdegga ah: Shabakadda ugu weyn
Nidaamyada Korantada ee Casriga ah: Labada UPS ama beddelka beddelka
Mashiinnada Warshadaha: Xulashada isha ee matoorada waaweyn ama nidaamyada kuleylka
Maaraynta Dhismaha: nalka kaydinta ama dariiqa korantada wiishka
Is dhexgalka la cusboonaysiin karo: Grid vs. go'doominta nidaamka isku-dhafka qorraxda

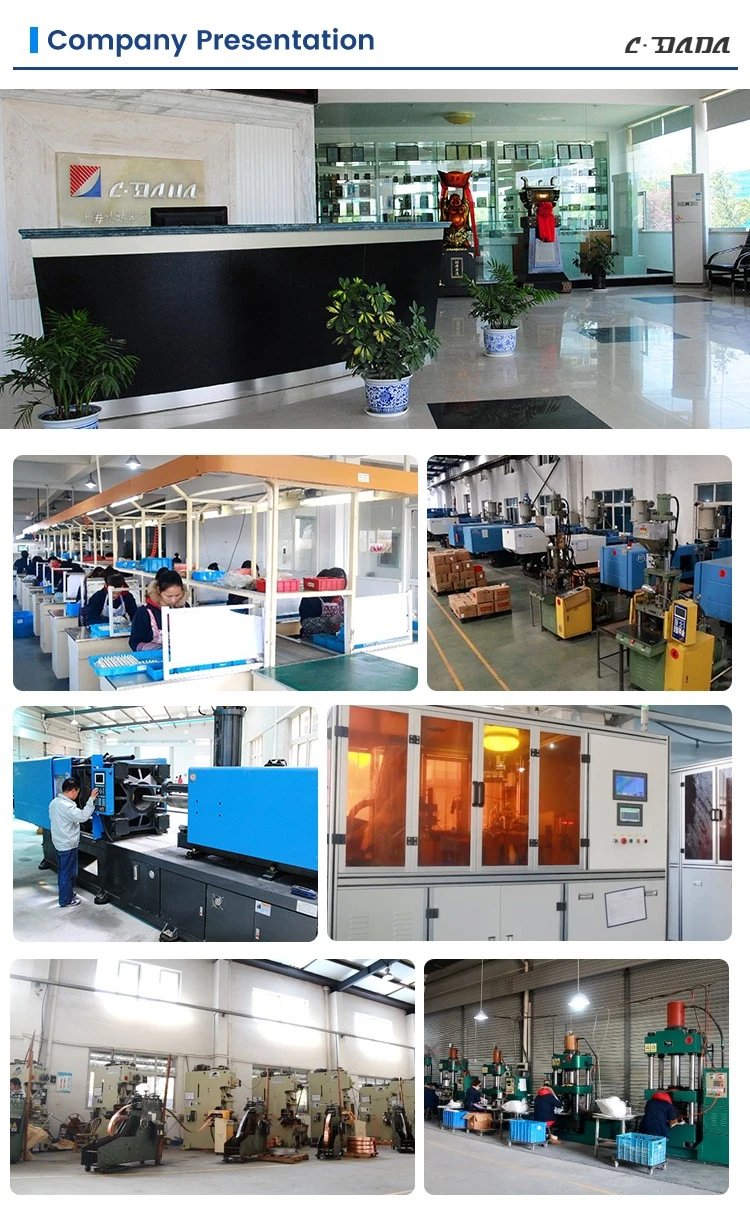

Ku saabsan CDADA
Waxaan leenahay kooxda R & D ee xirfadlayaasha ah, waxay leeyihiin habka horumarinta caadiga ah. Waxay bixin kartaa adeeg habaysan oo heersare ah.
★ Waxaan leenahay shaybaadhka si buuxda u shaqeeya, our shaybaarka markhaati ka noqon karaa shaybaarka , waxaan samayn kartaa load kulaylka, magnetic, iyo xadka tripping, nolosha habka, EMC in our shaybaarka.
★ waxaanu siinaa barnaamijyo iskaashi habaysan oo loogu talagalay qaybiyeyaasha, wakiilada, iyo la-hawlgalayaasha OEM ee suuqyada muhiimka ah, siinta taageerada iibka, agabka suuqgeynta, iyo shuruudaha tartanka.
★ astaanta shirkadda
Su'aalaha Inta Badan La Isweydiiyo
Q1: Ma bedeli karaa DIN Tareenka Beddelka Bedelka 125A ee culeyska saaran?
J1: Maya Waa in la shaqeeyaa kaliya marka tamarta laga saaro ama si adag loogu isticmaalo go'doomiyad ahaan (wareejin la'aan). Xawilaadda rarka tooska ah, isticmaal beddelka wareejinta tooska ah (ATS) ama furaha mootooyinka leh.
Q2: Muxuu moodalka 125A uga baahan yahay laba gacmood ama gacan fidsan?
A2: Habka gu'ga ee moodooyinka hadda jira waxay abuuraan xoog aan firfircoonayn. Qalliinka gacanta keliya lagu sameeyo waxa laga yaabaa inuu keeno xidhiidh aan dhammaystirnayn, oo keenaya kuleyl ama kuleyl. CDADA waxay ku talinaysaa labada gacmood ama gacan fidsan ee ay warshadu siisay si badbaado leh, hawl-socod buuxa ah.
Q3: Waa maxay cabbirka fiilada loo baahan yahay 125A?
A3: Isticmaal fiilada naxaasta ah ee 50mm² (sida ku cad faahfaahinta la bixiyay). Hubi in marinnada lagu adkeeyo 3.5 N·m si looga hortago kulaylka.
Q4: Miyaan u baahanahay fiyuusyo leh furahaan?
J4: Haa. Maadaama aysan joojin karin qulqulka wareegyada gaaban, had iyo jeer ku rakib fiyuusyada korka ama MCB-yada lagu qiimeeyay heerka khaladka ee nidaamkaaga. Dareemida ayaa kaliya bixisa go'doomin/beddelka gacanta.
Q5: Maxaad CDADA uga doorataa tartamayaasha 125A beddelka?
A5: CDADA waxay bixisaa:
● Runta 3-mawqif ee isku-xidhka farsamada (ma jiraan xaalado sabaynaya)
● Shahaadada IEC 60947-3 oo leh ogolaansho caalami ah
● Naqshad kuleyl oo la hagaajiyay oo loogu talagalay xayndaabyada DIN-tareenka
● Tilmaanta muuqaalka ah ee booska beddelka
● Qiimaynta tartanka oo leh taageero farsamo oo Ingiriisi ah
