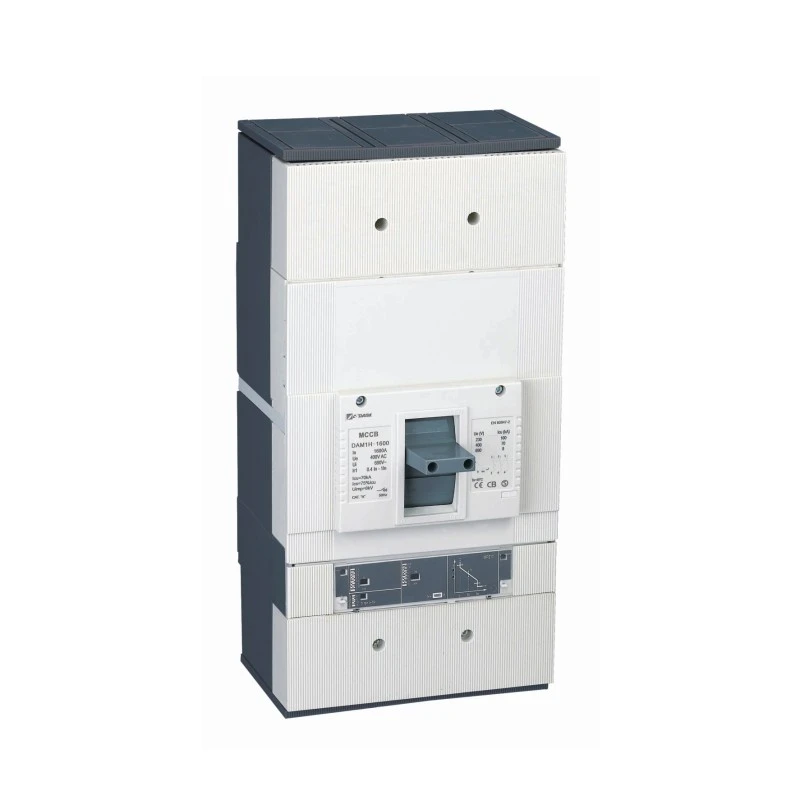

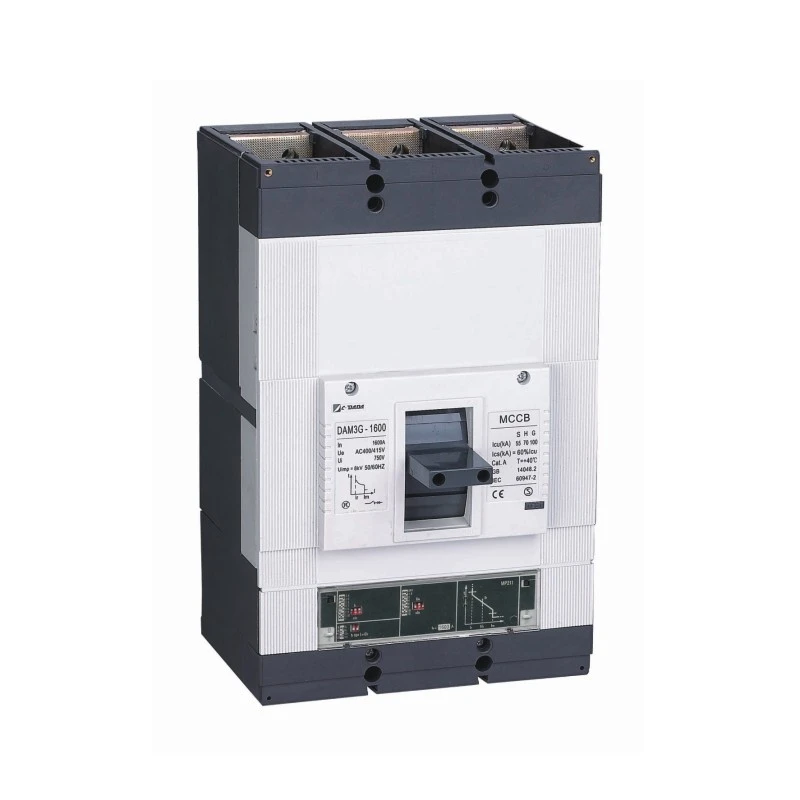

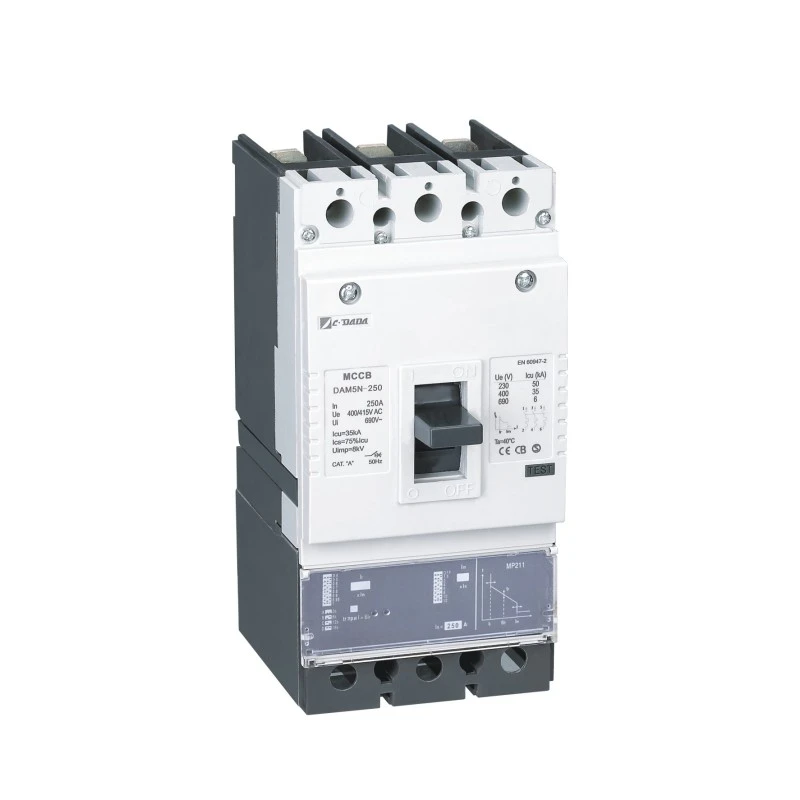

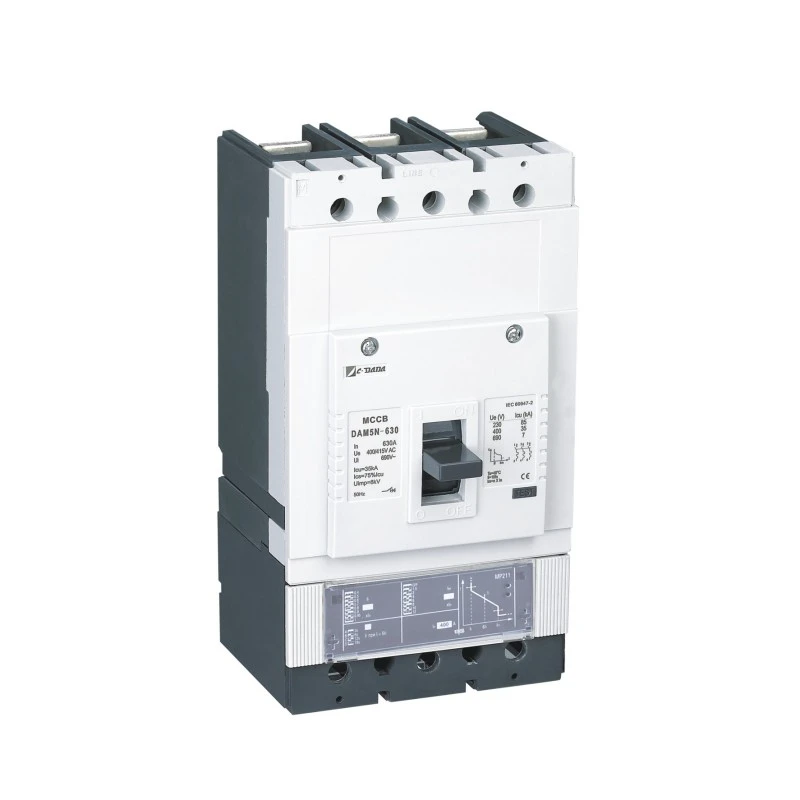

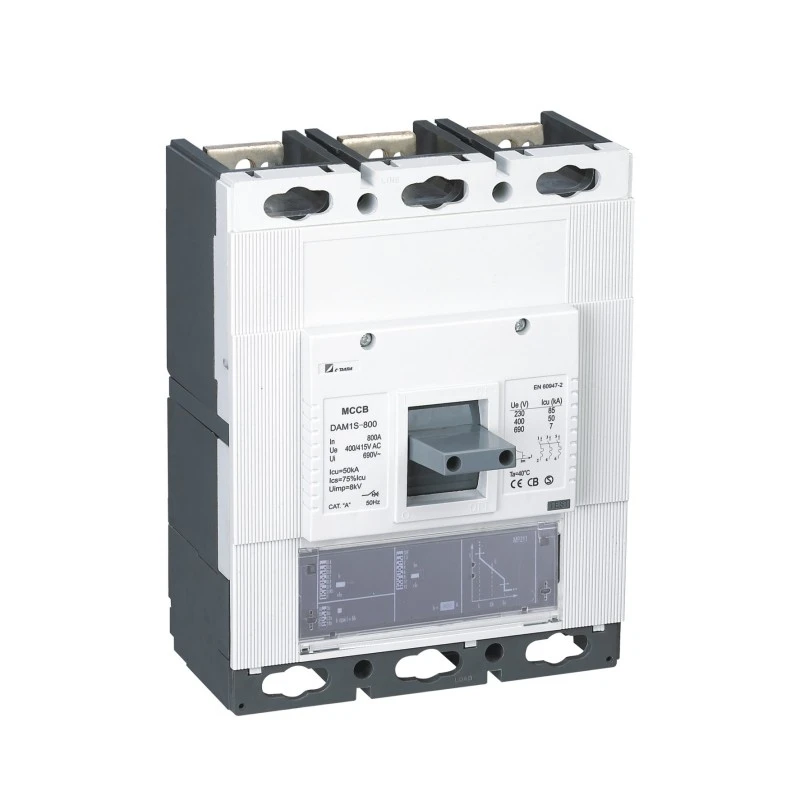

Nooca Elektarooniga ah ee Case Wareega ah

Nidaamyada korantada casriga ah ee dalbanaya saxnaanta, sirdoonka, iyo isku halaynta, Nooca Elektrooniga ah ee Case Wareegga ah ee Molded by Shanghai DADA Electric CO., LTD. oo dejisa heer cusub oo ilaalinta korantada yar. Si ka duwan kuwa caadiga ah ee kulaylka-magnetic, MCCB ee caqliga leh waxay isticmaashaa unug safar elektaroonig ah oo ku salaysan microprocessor si ay u gaarsiiso si aad u saxan, barnaamij ilaalin xad dhaaf ah-ka-difaaca heerkulka jawiga.

Iyada oo la hagaajin karo laga bilaabo 40% ilaa 100% gudaha (kuleylka) iyo 1.5 × ilaa 12 × In (magnetic), waxay bixisaa dabacsanaan aan la qiyaasi karin oo loogu talagalay isuduwidda adag ee xarumaha xogta, dhirta warshadaha, isbitaallada, iyo nidaamyada tamarta la cusboonaysiin karo. Lagu qiimeeyay 100A ilaa 1600A at 400V/415V, waxa ay isku daraysaa nakhshad is haysta oo shaqaynaysa horumarsan—waxana ku jira safar toos ah oo badbaado leh inta lagu jiro khaladaadka aadka u daran, xitaa hadii elektiroonigu uu ku guuldareysto.

Tilmaamaha Muhiimka ah

Qaabka: CDADA DAM2 / DE Taxanaha (Nooca Elektarooniga ah

Nooca: Qalabka Wareega ee Casriyeysan ee Elektarooniga ah

Tiirarka: 3P / 4P

Voltage la qiimeeyay (Ue): 400V/415V AC

Hadda Lagu Qiimeeyay (Gudaha): 100A - 1600A

Cutubka Safarka: Siidaynta elektarooniga ah ee ku salaysan Microprocessor

Hagaajinta kulaylka (Ir): 40% - 100% gudaha gudaha

Hagaajinta Magnetic (Im): 1.5× - 12× In

Faa'iidooyinka

★  Kala duwanaanshaha ballaaran: 100A ilaa 1600A(AC)

★ Cabbirrada is haysta

★ Dejinta kulaylka la hagaajin karo (40-100%) gudaha.

Goob magnetic la hagaajin karo (1.5-12times) gudaha.

★ Riix si aad u bixisid badhanka safarka.

★ Xiriirada muhiimka ah iyo kuwa soo jiidashada goonida ah

★ qalabyo kala duwan.

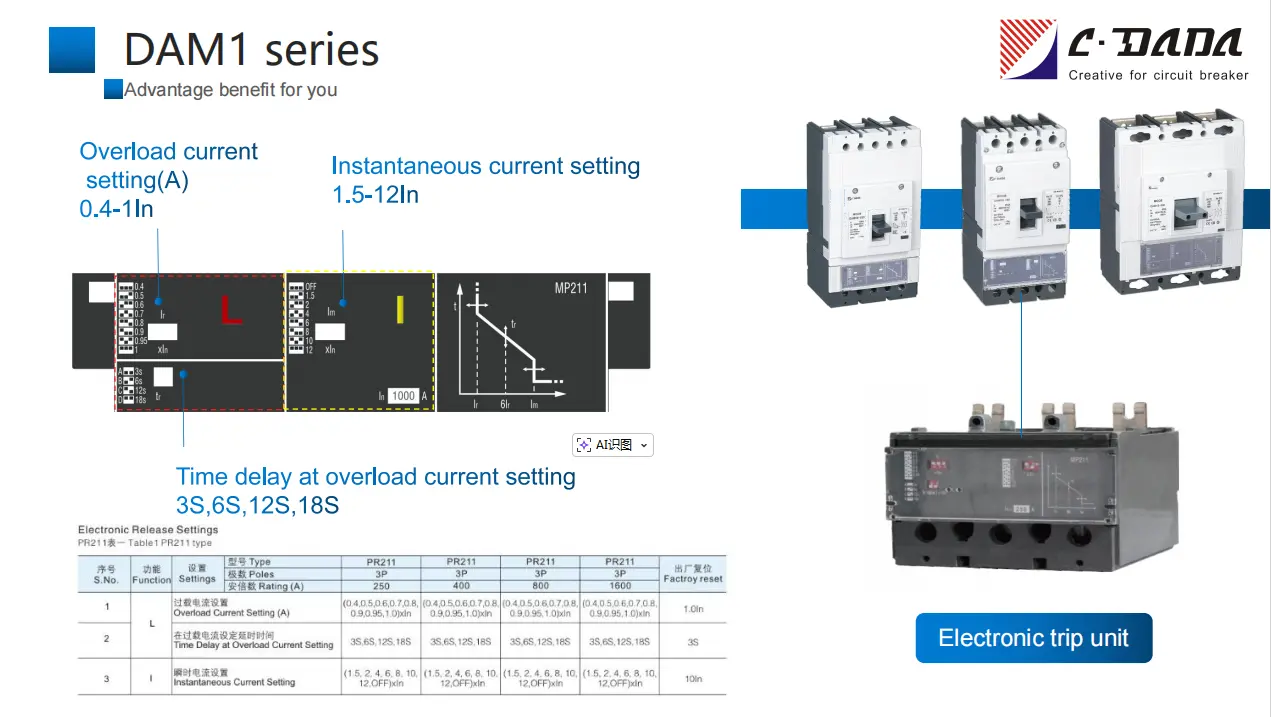

Qalooca sifada siidaynta elegtarooniga

Halbeegyada korantada

Shaxda 1 PR211 nooca

S.Maya

Shaqada

Dejinta

Nooca

PR211

PR211

PR211

PR211

Dib u habayn warshadeed

Tiirarka

3P

3P

3P

3P

Qiimaynta (A)

250

400

800

1600

1

L

Xad-dhaaf ah Dejinta Hadda (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0)xIn

1.0In

2

Dib u dhigista wakhtiga ee dejinta hadda

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Dejinta Hadda Degdegga ah

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

10In

Shaxda 2 PR212 nooca

S.Maya

Shaqada

Dejinta

Nooca

PR212

PR212

PR212

PR212

Dib u habayn warshadeed

Tiirarka

3P

3P

3P

3P

Qiimaynta (A)

250

400/630

800

1600

1

L

Xad-dhaaf ah Dejinta Hadda (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

1.0In

2

Dib u dhigista wakhtiga ee dejinta hadda

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Dejinta Hadda Wareegga Gaaban (A)

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

(1, 2, 3, 4, 6, 8, 10, OFF) xIn

6In

4

Dib u dhigista wakhtiga ee Dejinta Wareegga Gaaban ee Hadda

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Dejinta Hadda Degdegga ah

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

(1.5, 2, 4, 6, 8, 10, 12, OFF) xIn

10In

6

G

Dejinta Cilada Dhulka ee Hadda (A)

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9,1.0, OFF) xIn

1.0In

7

Dib u dhaca wakhtiga ee Dejinta Cilada Dhulka

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

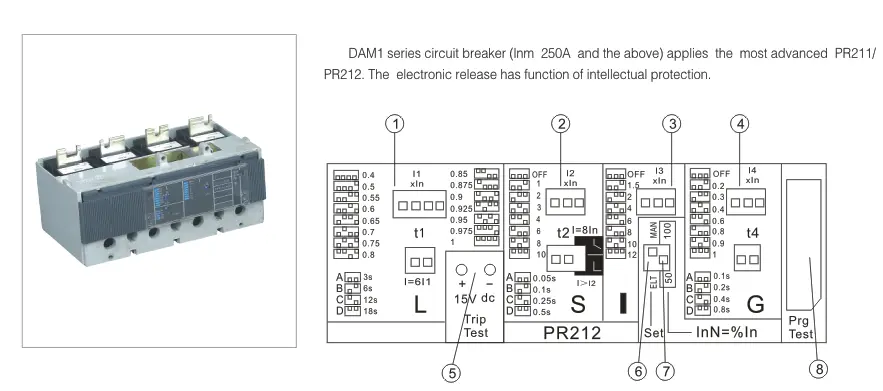

Xulashada cabbirro koronto ama elektaroonig ah oo la dejiyay

Shaqada SET (dareema ELT/MAN)

9

Loo isticmaalo dejinta cabbirada beddelka dip ee khadka eber

InN =% gudaha, beddel 50/100

10

Socket ee qalabka cabbiraadda isku xirka

godka guddiga

Maxaad u doorataa CDADA Elektaroonigga ah ee MCCB?

★ Garaadka Dhabta ah, Ma aha Keliya Automation
Microprocessor-ku wuxuu si joogto ah u falanqeeyaa mowjadaha mawjadaha ee hadda jira, isagoo awood u siinaya waqti-rogman, waqti go'an, iyo ilaalin degdeg ah-iyada oo aan lahayn leexleexad kuleyl ama gabow.

★ Naqshad badbaado leh
Xataa haddii wareegga elektiroonigga ah uu guuldareysto, xirmada korantada ee tooska ah waxay hubisaa safarrada jebiya inta lagu jiro wareegyada gaaban ee daran - buuxinta shuruudaha badbaadada IEC 60947-2.

★ Iskudubarid Sare
Isku-habaynta aadka u ballaaran (40-100% Ir, 1.5-12× Im) waxay oggolaadaan isuduwidda qumman ee qalabka kor-sare/hoosaadka-hoos u dhigaya aagagga bannaanka.

★ Kaabayaasha caddaynta mustaqbalka
La jaanqaadi kara qaybaha isgaarsiinta ee ikhtiyaarka ah (Modbus RTU, Profibus) ee la dhexgalka Nidaamyada Maareynta Dhismaha (BMS) ama shabakado caqli badan.

★ Tayada Caalamiga ah, Qiimaha Tartan
Waxaa lagu soo saaray ISO 9001 ee Shanghai, oo leh shahaadooyin caalami ah - oo bixiya waxqabadka heerka Yurub ee hufnaanta qiimaha Aasiya.

Waxaan leenahay koox u go'an oo ka kooban 15 injineero diiradda saaraya horumarinta alaabta, hagaajinta, iyo habaynta.

Codsiyada ku habboon

Xarumaha Xogta: Kahortagga guuldarada boodboodka leh oo si sax ah loo doortay

Isbitaalada: Hubi awooda aan kala go'a lahayn ee hababka taageerada nolosha

Automation Warshadaha: Isku-dubaridka VFD-yada, bilawga jilicsan, iyo roboticska

Beeraha Cadceedda/Dabaysha: La qabso muuqaalada jiilka kala duwan

Dhismayaasha Ganacsiga ee Smart: Daree la socodka tamarta iyada oo aan mitir dheeraad ah la helin

Su'aalaha Inta Badan La Isweydiiyo (FAQ)

Q1: Muxuu MCCB elektarooniga ah ka dhigayaa kuleyl-magnetic?

A1: Nooca Elektarooniga ah ee Case Wareegga ah ee Jabiya waxay isticmaalaan microprocessor si ay u falanqeeyaan hadda oo ay u kiciyaan safarrada si sax ah u sarreeya. Ma saameeyaan heerkulka jawiga, waxay bixiyaan kala duwanaansho isku-habeyn ballaaran, waxayna bixin karaan kaydinta xogta culeyska-ka duwan noocyada bimetal/solenoid-ku-saleysan kulaylka-magnetic.

Q2: 1600A elektarooniga ah MCCB ma laga heli karaa qaabeynta 4-tirada?

A2: Haa—dhammaan CDADA elektarooniga ah ee MCB-yada laga bilaabo 250A ilaa 1600A ayaa laga heli karaa noocyada 3P iyo 4P.

Q3: Maxaa dhacaya haddii cutubka safarka elektaroonigga ah uu ku guuldareysto inta lagu jiro wareegga gaaban?

A3: Jabiya waxa ku jira kayd makaanik ah: inta lagu jiro qulqulka cilada ba'an (> 12× In), xadhig birlab ah ayaa kiciya furin toos ah - hubinta badbaadada xitaa qalabka elektaroonigga ah.

Q4: Ma la socon karaa qiyamka wakhtiga-dhabta ah?

A4: Haa—cutubka safarka elegtarooniga ah waxa uu soo bandhigayaa isla markiiba, ugu badnaan, min, iyo celceliska hadda ee wakhtiga la dooran karo (tusaale, 24h), oo waxtar u leh maaraynta tamarta.

Q5: Maxaad CDADA uga doorataa noocyada kale ee MCCB ee caqliga leh?

A5: CDADA waxay bixisaa:

● Laqabsiga dhabta ah ee laba-geesoodka ah (tartamayaal badan ayaa xaddidaya Im ilaa ≤10×)

● Kaydinta farsamada ee badbaadsan (dhammaan "electronic" MCCBs ma haystaan ​​tan)

● Cabbirka is haysta—wuxuu ku habboon yahay baalasha dhaxalka ah iyadoon wax laga beddelin

● Bootfoliyoo shahaado caalami ah oo xoogan (ASTA, KEMA, CE)

● Qiimaynta saaxiibtinimo ee OEM oo leh taageero farsamo oo Ingiriisi ah
