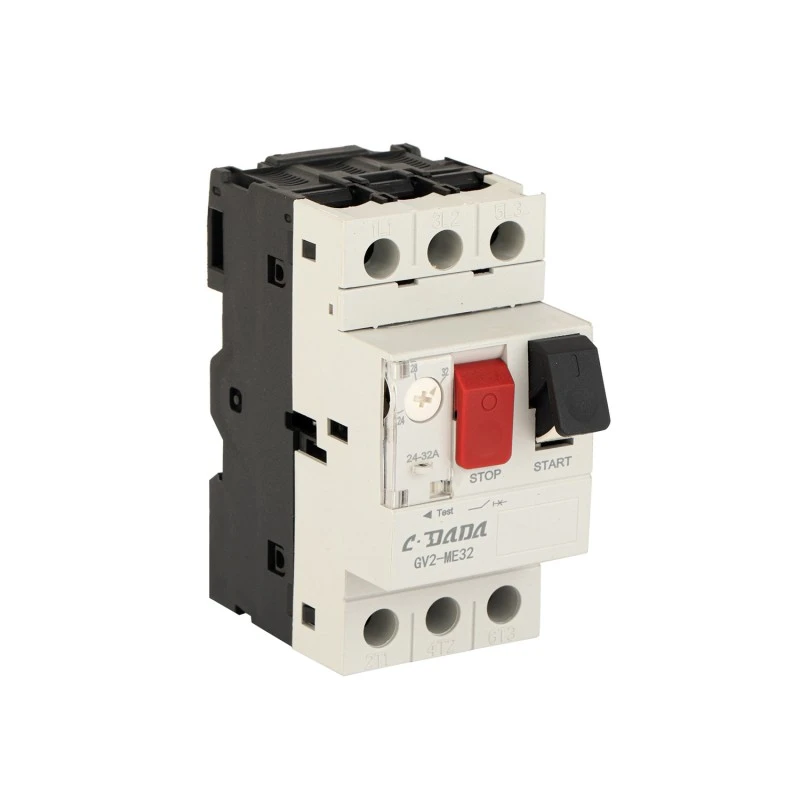

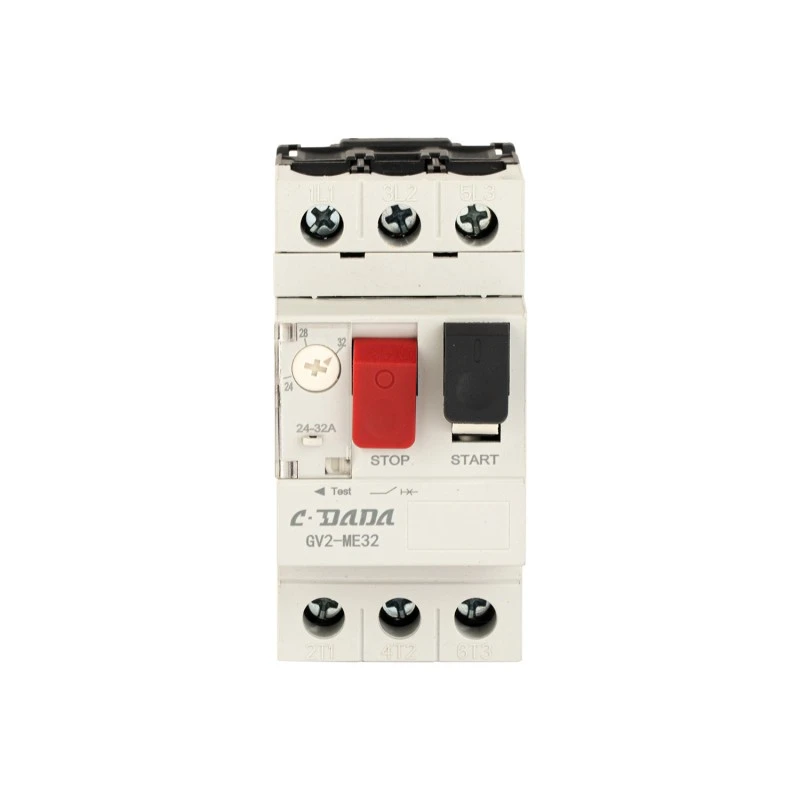

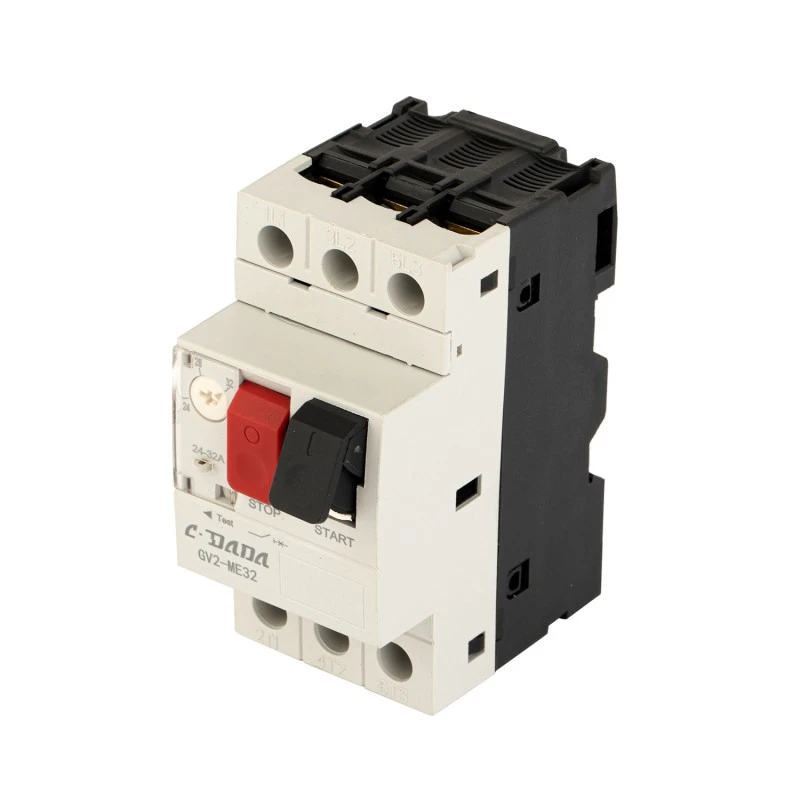

GV2 2P Ilaalinta Matoorka Wareegga

Ku fududee ilaalinta mootada CDADA GV2 2P Matoorka Ilaalinta Wareegga Wareegga (MPCB) sax-sare, xal is haysta oo ay farsamaysay Shanghai DADA Electric CO., LTD. iyadoo la isticmaalayo madal tignoolajiyada jiilka soo socda iyo wax soo saarka otomaatiga ah. Naqshadeynta wareegyada hal-waji ama laba-weji, GV2 2P waxay isku xireysaa culeyska xad-dhaafka ah, wareegga-gaaban, wejiga-luminta (loogu talagalay codsiyada 3-waji marka loo adeegsado jaantusyada), iyo go'doominta hal qalab oo DIN-tareen ah.

Iyada oo lagu hagaajin karo kala duwanaanta 0.1A ilaa 32A, magdhowga kulaylka ee kala duwanaanshaha heerkulka jawiga, iyo korantada dahaarka ee lagu qiimeeyay 690V, waxay hubisaa ilaalinta la isku halayn karo ee matoorrada yaryar ee matoorada, marawaxadaha, kombaresarada, gaadiidka qaada, iyo nidaamyada HVAC. Lagu shaabadeeyey heerarka CE, oo muujinaya 110,000 farsamo iyo hawlgal koronto, oo lagu qalabeeyey qalabyo ikhtiyaari ah sida xiriiriyeyaasha kaalmaynta, sii deynta shunt, iyo sii daynta korontadu yar tahay, CDADA GV2 MPCB waxay soo bandhigtaa waxqabadka heerka-warshadaha qaab 2-tile ah oo meel bannaan lagu badbaadinayo.

Tilmaamaha Muhiimka ah

Taxanaha Model: GV2 2P MPCB

Sumadda: CDADA | Soo saaraha: Shanghai DADA Electric CO., LTD

Shahaadada: CE

Tiirarka: 2P (ku habboon matoorada hal-waji ah ama qayb ka mid ah ilaalinta 3-waji)

Dejinta Xadka Hadda: 0.1A - 32A (lagu hagaajin karo garaac)

Qiimaynta Qaabka: 32A

Ku shaqaynta Voltage ee lagu qiimeeyay: 690V AC

Voltage Insulation (Ui): 690V

Korontada u adkeysan karta (Uimp): 6000V

Inta jeer ee shaqaynaysa: 50/60Hz

Fasalka Safarka: 10A (heerka matoorada ujeedada guud)

Hawlaha Ilaalinta:

★ Ilaalinta culayska kulaylka

★ Ilaalinta wareegga gaaban

★ Ilaalinta wejiga-khasaaraha* (*marka lagu isticmaalo qaabaynta 3-tile ama iskudubarid)

★  Shaqada go'doominta (nasasho muuqata)

★ magdhowga heerkulka ku-dhisan

Nolosha Makaanikada: 110,000 hawlgal

Nolosha Korontada (AC-3, 400V): 110,000 hawlgal

Xoojinta Torque: 1.7 N·m

Nooca hawlgalka: Riix-badhan shid/dami oo wata tilmaame safar oo cad

Koritaanka: 35mm DIN tareenka

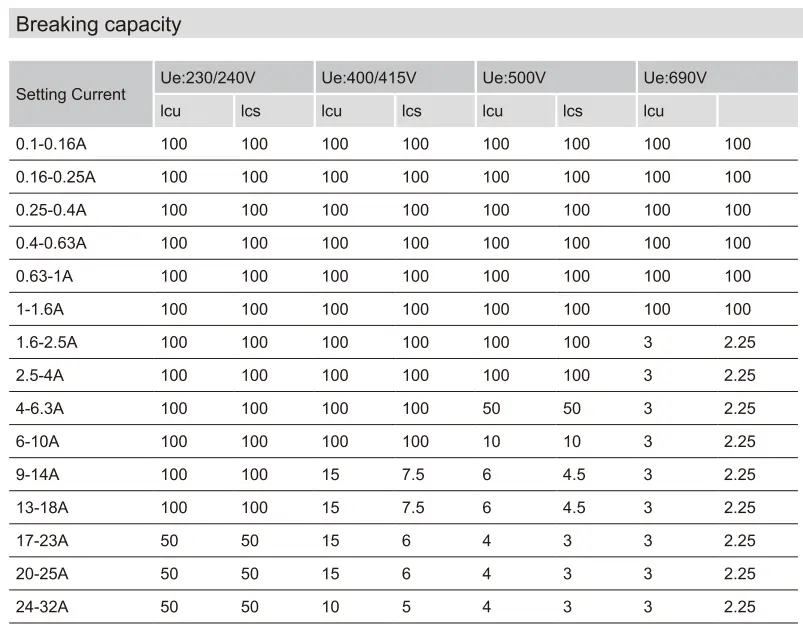

Xaashida Xogta Farsamada

Waa maxay sababta aad u dooratay CDADA GV2 2P Ilaalinta Wareegga Wareegga?

★ Dhammaan-in-Hal Ilaalinta Baabuurta

Isku-dubarid wareegga wareegga + xadhkaha kululaynta kulaylka + go'doominta - waxay tirtirtaa baahida qaybo gaar ah.

★ Saxnaanta & Deganaanshaha

Habka heerkulka-gudbigu waxa uu xaqiijiyaa safarro joogto ah iyada oo aan loo eegin isbeddellada jawiga (tusaale, aqoon-is-weydaarsiyada kulul ama qolalka hoose ee qabow).

★ Waaritaanka Sare

110,000 wareegyada makaanikada/korontada-oo ka sarreeya tartameyaal badan oo la isku halleyn karo muddada-dheer.

★ Naqshadeynta 2P meel-Badbaadinta

Ku habboon baararka kontoroolka is haysta, mishiinnada OEM, iyo mashaariicda dib-u-habaynta halkaasoo guddida hantida ma-guurtada ahi ay xaddidan tahay.

★ Nidaam deegaan oo dhammaystiran

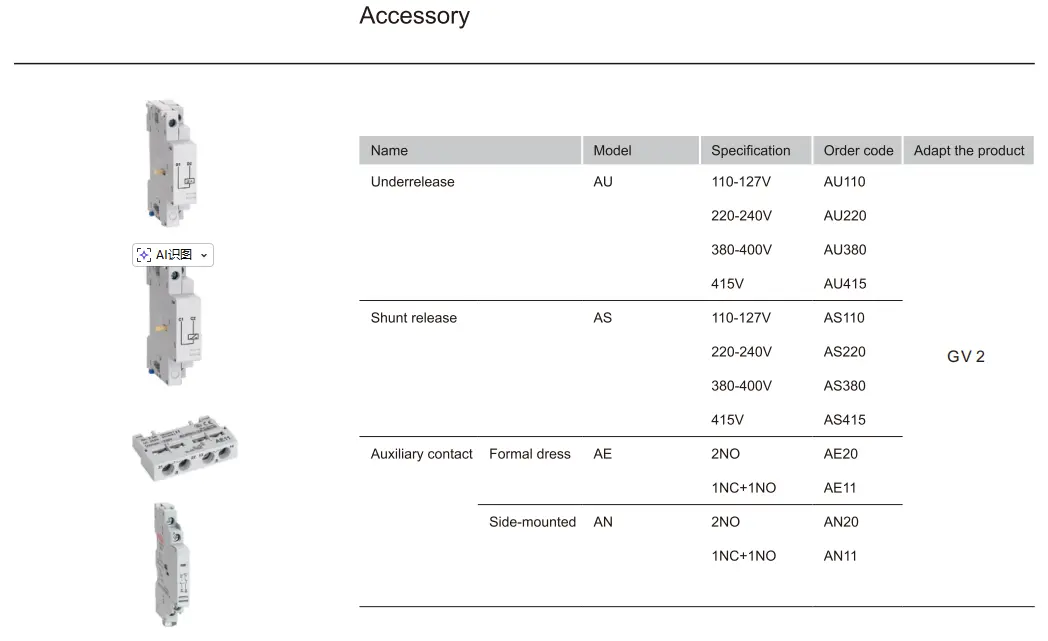

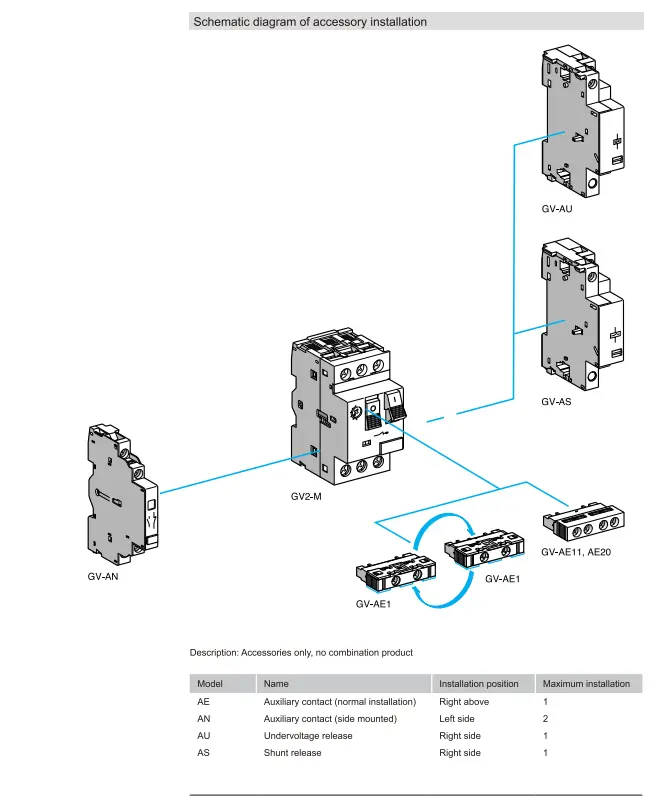

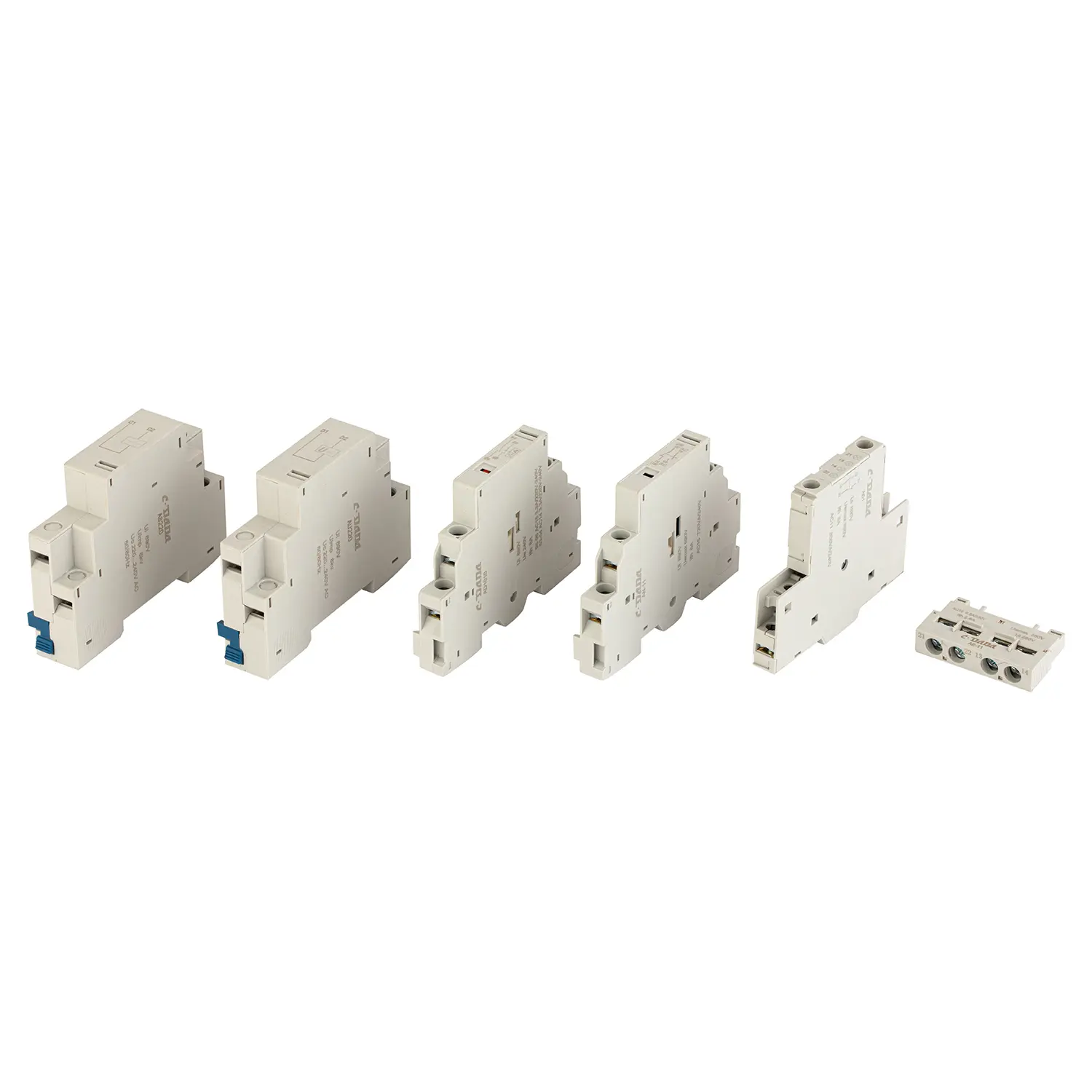

Waxay taageertaa AE (kaaliyaha hore), AN (kaaliyaha dhinaca), AU (sii daynta korontadu yar tahay), AS (safar shunt) — awood u yeelashada calaamadaynta fog, xidhidh, ama is dhexgalka PLC.

★  U hoggaansanaanta Caalamiga ah

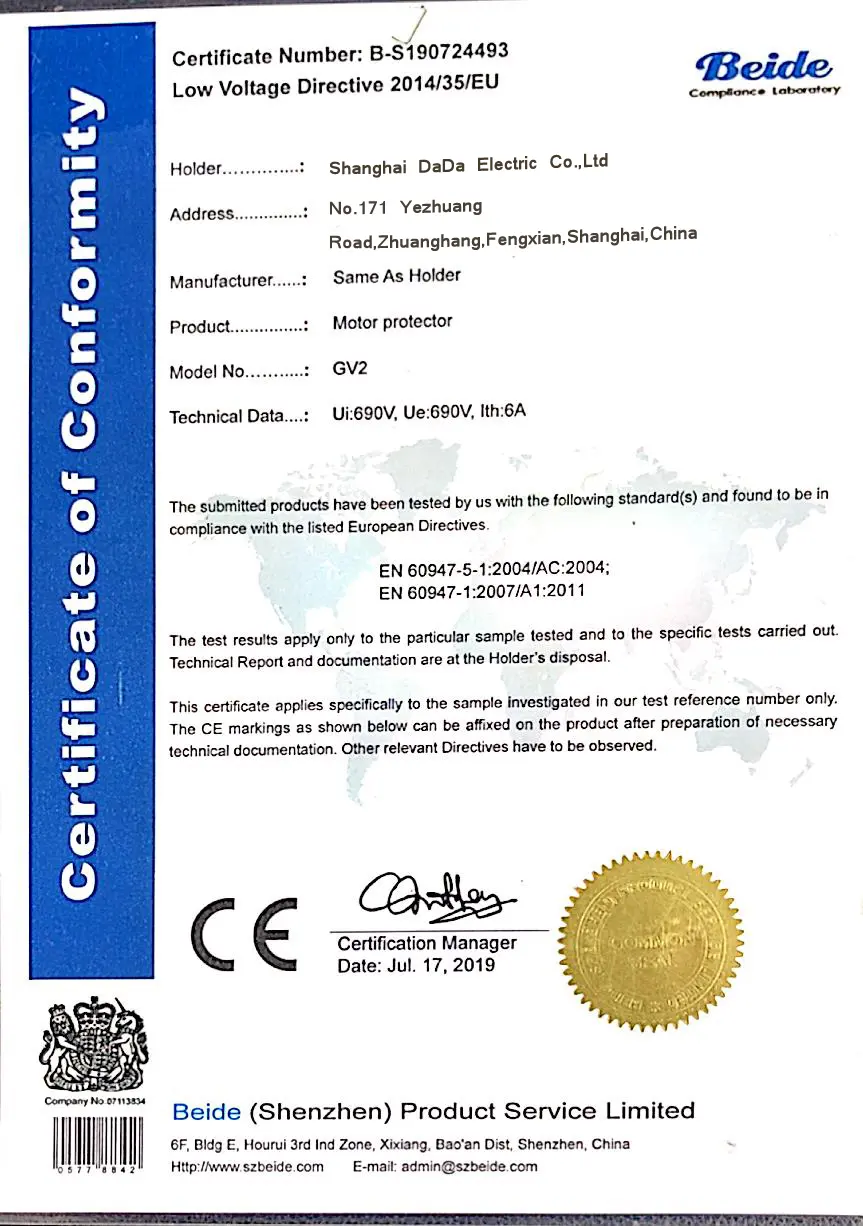

CE oo lagu shahaadeeyay 690V-ku habboon suuqyada Yurub, Aasiya, Afrika iyo Laatiin Ameerika.

Joogteynta waxaa lagu hubiyaa qalabka wax soo saarka ee otomaatiga ah, hababka hawlgalka ee caadiga ah, hubinta walxaha soo galaya ee adag, tijaabinta hawsha, iyo 100% ugu dambeeya ee tijaabada shaqaynta ee cabbirada muhiimka ah.

Codsiyada caadiga ah

Matoorada Hal-waji ah: Bambooyin, albaabbada garaashka, kombaresarada yaryar

Mashiinnada OEM: Mashiinnada baakadaha, qalabka cuntada lagu farsameeyo

Nidaamyada HVAC: Unugyada gariiradda taageere, qaboojiyeyaasha yaryar

Dhismaha Automation-ka: Kaaliyeyaasha wiishka, kontaroolada hawo-qaadista

Mashruucyada Dib-u-habaynta: Beddelida fiyuusyada + gudbinta kulaylka ee MPCB isku dhafan

Su'aalaha Inta Badan La Isweydiiyo

Q1: Waa maxay faraqa u dhexeeya MPCB iyo jabiyaha wareegga caadiga ah?

A1: Qalabka Ilaalinta Baabuurta (MPCB) sida GV2 ayaa bixiya:

● Ilaalinta culeyska kulaylka la hagaajin karo (oo ku habboon FLC)

● Ilaalinta wareegga gaaban ee magnetic

● Ogaanshaha khasaaraha wejiga (oo ku jira noocyada 3P)

● Shaqada go'doominta

→ Heerarka MCB-yada waxay bixiyaan oo kaliya ilaalinta wareegga-gaaban iyo ka-hortagga culayska xad-dhaafka ah-ma aha kuwa la hagaajiyay.

Q2: 2P GV2 ma ilaalin karaa mooto 3-waji ah?

J2: Keli ma aha. Matoorada 3-waji ah, waxaad u baahan tahay saddex qaybood oo GV2 ah (hal waji) oo la isku duway, ama isticmaal 3P MPCB. Si kastaba ha noqotee, 2P GV2 waxay ku fiican tahay matoorada hal-waji ah ama wareegyada xakamaynta.

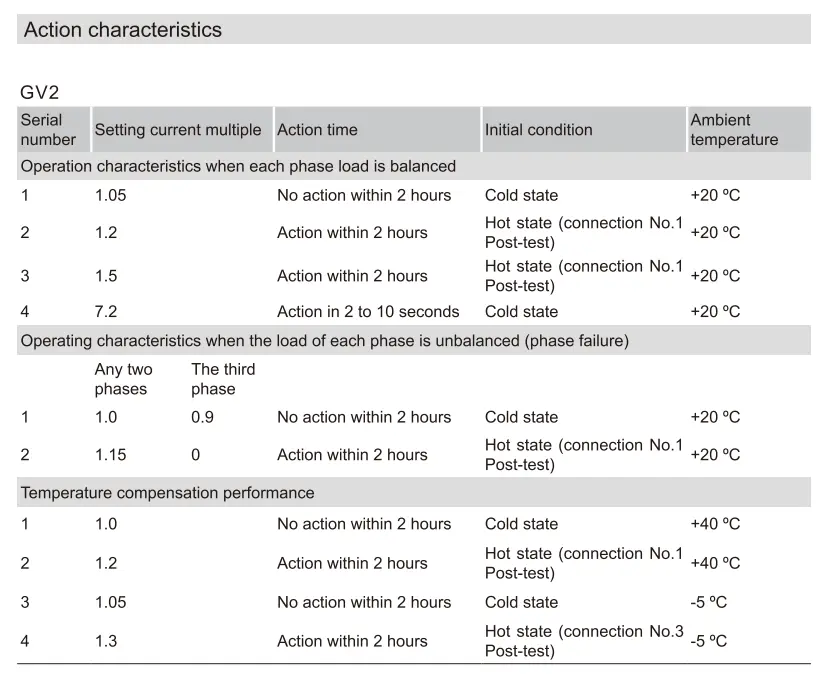

Q3: Waa maxay macnaha "Safarka Fasalka 10A"?

J3: Waxay qeexaysaa sida ugu dhakhsaha badan ee jabiyahu u socdaalo culayska xad dhaafka ah. Fasalka 10A macneheedu waxa weeye waxay ku socon doontaa 10 ilbiriqsi gudahood 7.2 × dejinta hadda - ku habboon matoorada qafiska dabaqa hoose ee caadiga ah iyada oo aan lahayn wax bilawga sare ah.

Q4: Runtii ma magdhabaa heerkulka?

A4: Haa! Xarigga bimetallic-ka ah ayaa si heerkul ah loo magdhabaa, sidaa awgeed jabiddu waxay ahaanaysaa mid sax ah haddii lagu rakibay bakhaar 0°C ah ama xero 50°C ah.

Q5: Maxaad CDADA GV2 uga doorataa noocyada kale?

A5: CDADA waxay bixisaa:

● Shahaadada saxda ah ee CE oo ay la socoto warbixinada imtixaanada

● Wax soo saar otomaatig ah → tayada joogtada ah & heerka cillad hoose

● Waafaqid agabka dheeriga ah (AE/AN/AU/AS)

● Qiimaha tartanka OEM-yada iyo qaybiyeyaasha

● Taageero farsamo oo degdeg ah iyo waraaqo Ingiriisi ah
