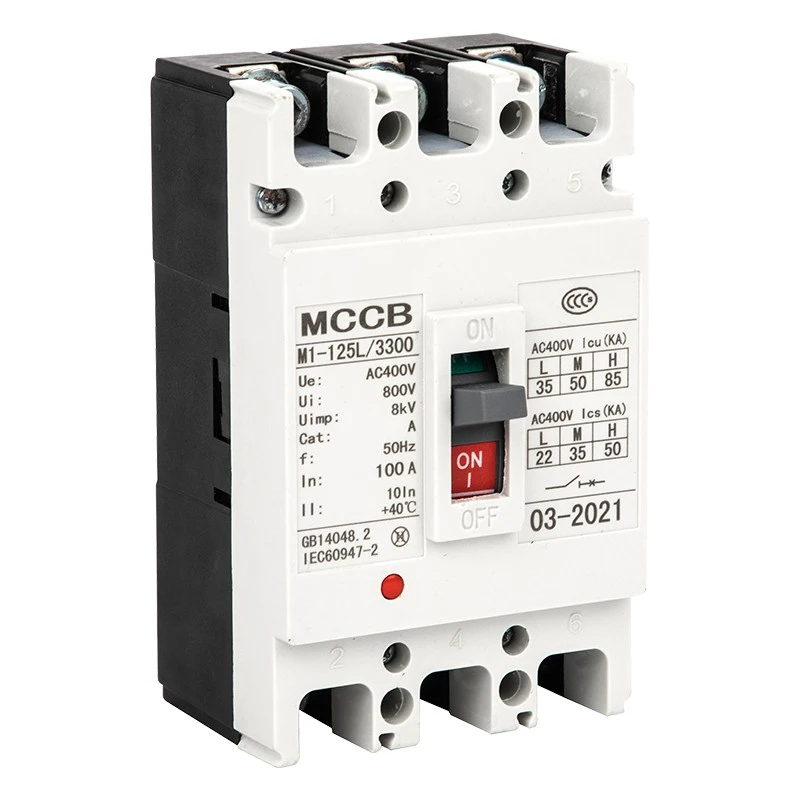

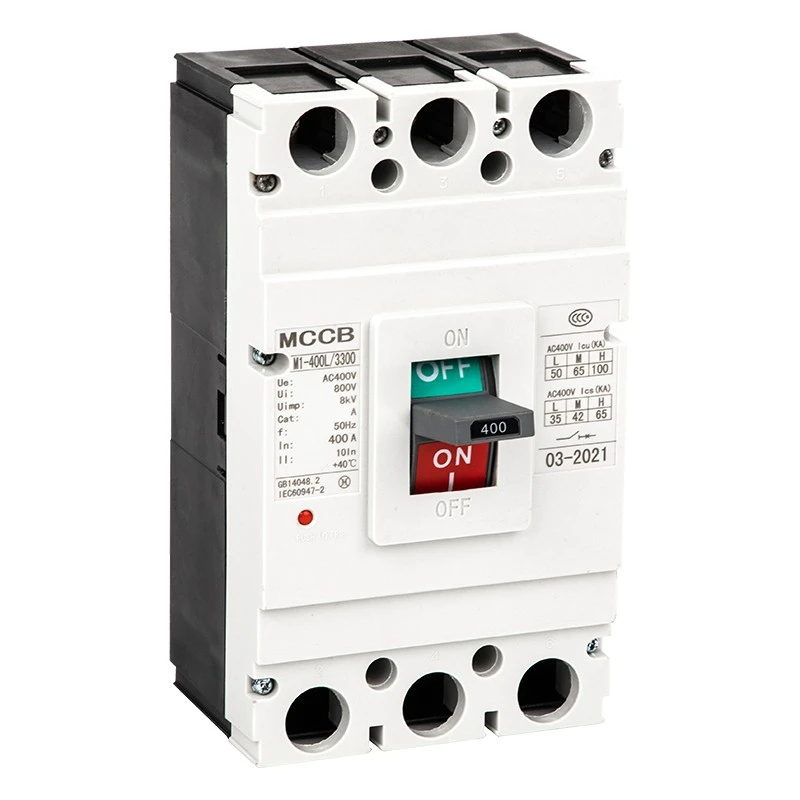

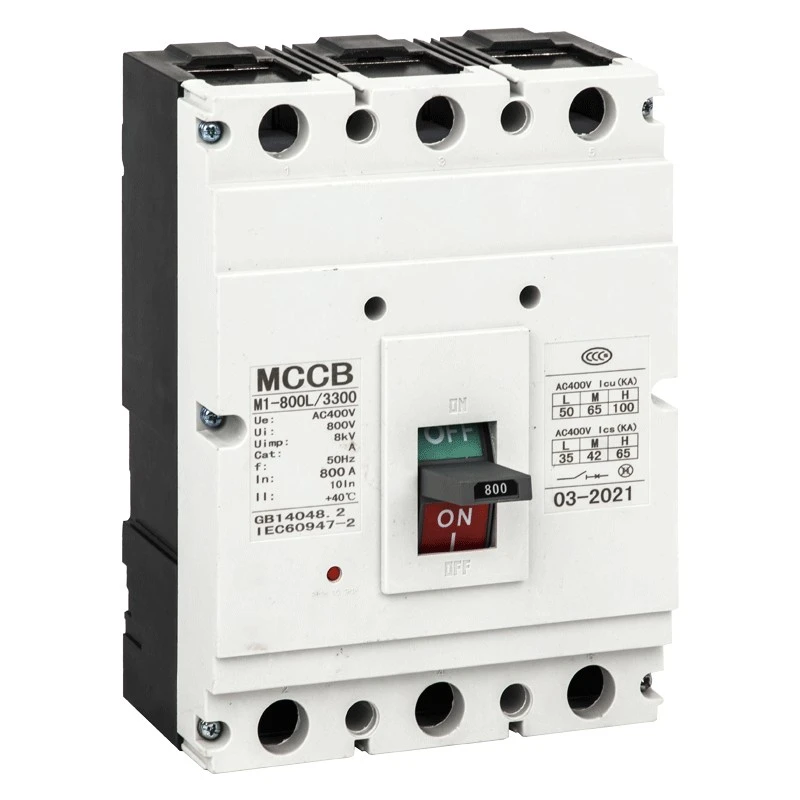

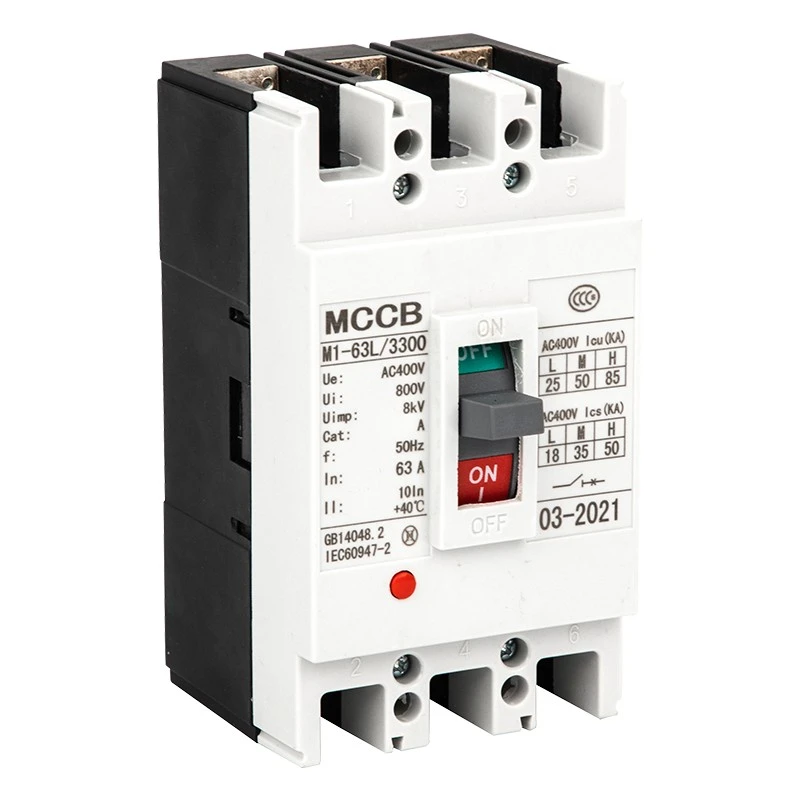

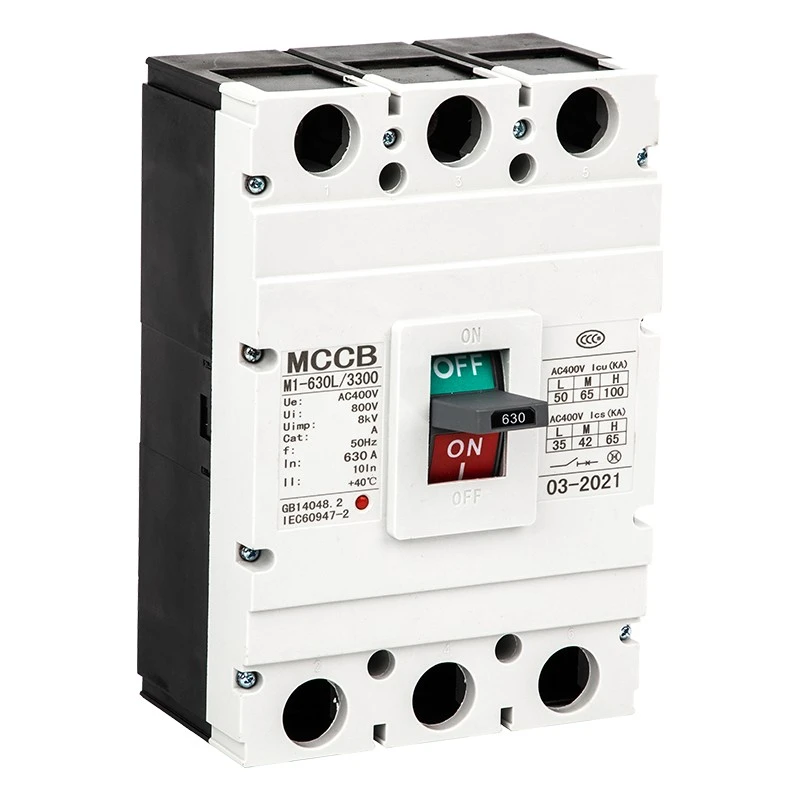

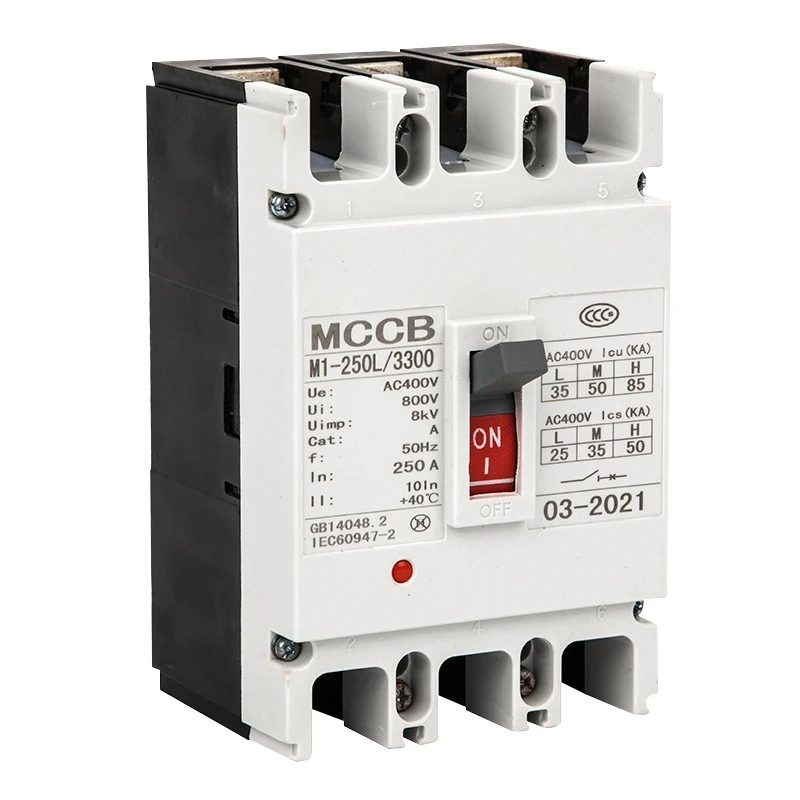

CM1 Case Wareega Jabiya
Model:DAM2 (CM1) Series
CDADA CM1 Molded Case Circuit Breaker (MCCB) waxaa loo dhisay wax soo iibsiga badan, oo leh shahaado IEC60947-2 iyo waxqabadka xasilloon ee nidaamyada tamarta warshadaha. CM1 MCCB waxay isticmaashaa qaab-dhismeed aad u sarreeya iyo hannaan la isku halayn karo, oo ay fududahay in la rakibo oo la ilaaliyo. Waxay isku daraysaa ilaalinta caqliga leh naqshad waara, hubinta nolosha adeegga dheer ee qaybinta awoodda iyo codsiyada warshadaha culus.
Taxanahan DAM2 (CM1) CM1 Molded Case Circuit Breaker waa qalab ilaalin hooseeya oo wax qabadkiisu sarreeyo oo ay soo saartay Shanghai DADA Electric Co., Ltd., soo saaraha iyo alaab-qeybiyaha la isku halayn karo ee Shiinaha. Iyada oo la qiimeeyay korantada dahaarka ilaa 800V, lagu qiimeeyay korantada shaqaynaysa 400V/690V, oo hadda lagu qiimeeyay 63A ilaa 1600A, waxaa si balaadhan loogu isticmaalaa qaybinta korantada, ilaalinta wareegga, kontoroolka mootada iyo wareejinta aan joogtada ahayn.
Taxanahan wuxuu taageerayaa rakibidda toosan iyo toosan, wuxuu u hoggaansamaa heerka IEC60947-2, wuxuuna bixiyaa culeys buuxa, wareeg-gaaban iyo ilaalinta korantada ee qalabka korontada.
Tilmaamaha Alaabta
★ danab dahaarka lagu qiimeeyay: 800V; Korantada shaqaynaysa: 400V/690V
★ Kala duwanaanshaha hadda: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Awoodda jebinta: Heerka L, dhexdhexaadka M, H nooca jabinta sare
Heerkulka-magnetic & electromagnetic hababka sii deynta laba-geesoodka ah
★ Rakibaadda toosan / toosan, oo ku habboon isticmaalka go'doominta
★ Heerkulka deegaanka oo ballaadhan: -5℃~+40℃
★ Dhererka ≤2000m, heerka wasakhowga 3
Codsiyada
CDADA CM1 Molded Case Circuit Breaker waxaa si weyn loogu dabaqay nidaamka qaybinta awooda warshadaha iyo madaniga, oo ay ku jiraan warshadaha, dhismayaasha, xarumaha xogta, saldhigyada korontada, kaabayaasha, qalabka farsamada, iyo armaajooyinka qaybinta awooda. Waxa kale oo loo isticmaalaa ilaalinta matoorka, beddelka wareegga, iyo sahayda korantada ee badbaadada leh ee dhismaha, birta, kiimikaalka petrochemical iyo warshadaha kale.
Qiyaasaha Farsamada
★ Heerarka: IEC60947-2, GB14048.2
★ inta jeer: AC 50Hz/60Hz
★ Tiirka: 1P,2P, 3P, 4P
★ Siideynta: Thermal-magnetic (laba-laab), elektromagnetic (isla markiiba)
★ Goobta degdega ah: Nooca qaybinta 10In ± 20%; Nooca baabuurka 12In ± 20%
★ Rakibaadda: Xadhkaha hore, fiilooyinka dambe, nooca fur-in
★ Hawlgalka: Buugga, farsamada hawlgalka korontada
|
Qaabka |
Tiirka |
Hadda la qiimeeyay (A) |
Lagu qiimeeyay hawlgelinta danab (V) |
Lagu qiimeeyay dahaarka danab (V) |
La qiimeeyay ugu dambaysta gaaban - awoodda jebinta wareegga (Icu) |
Fiirso fogaansho (mm) |
||
|
Tijaabi danab (V) |
Icu (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10, 16, 20, 25, 32,40,50,63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3,4 |
50 |
35 |
|||||
|
DAM2L-100 |
3,4 |
16,20,25,32,40, 50,63,80,100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2,3,4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3,4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2,3,4 |
20 |
10 |
|||||
|
DAM2L-225 |
3,4 |
100,125,140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2,3,4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3,4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2,3,4 |
20 |
10 |
|||||
|
DAM2L-400 |
3 |
225,250,315, 350,400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3,4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3,4 |
20 |
10 |
|||||
|
DAM2L-630 |
3 |
400,500,630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3,4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3,4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630,700,800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800,1000,1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Tilmaamaha & Cabirka Rakibaadda
Our CM1 MCCB wuxuu bixiyaa xogta cabbir dhamaystiran ee 63A-1600A moodooyinka, oo ay ku jiraan fiilooyinka hore, fiilooyinka dambe iyo nooca fur-in. Cabbirrada qaab-dhismeedka kala duwan (63/100/225/400/630/800/1250/1600) waxay la jaanqaadeen cabbirrada H, H1, H2 ee rakibidda golaha caadiga ah. Dhererka farsamada gacanta iyo korantada ayaa sidoo kale loo jaangooyay isu-ururinta fudud.
Agabka & Hawlaha
Qalabka Gudaha
Siidaynta shunt: 70%-110% danab lagu qiimeeyay jabka la isku halayn karo
Siidaynta korantada hooseysa: 35%-70% hoos u dhaca danab ilaalinta tooska ah
Xidhiidhka caawinta & xidhiidhka alaarmiga: jawaab celinta ishaarada iyo qaylo-dhaanta khaladka ah
mitirka lacagta hore loo sii daayay: Dib u dhigista 0.5-2s
Agabka dibadda
★ Habka hawlgalka ee gacanta
★ Habka hawlgalka ee korontada (motor).
★ Kala-saarayaasha wejiga, boolal korka, xirmooyinka baska

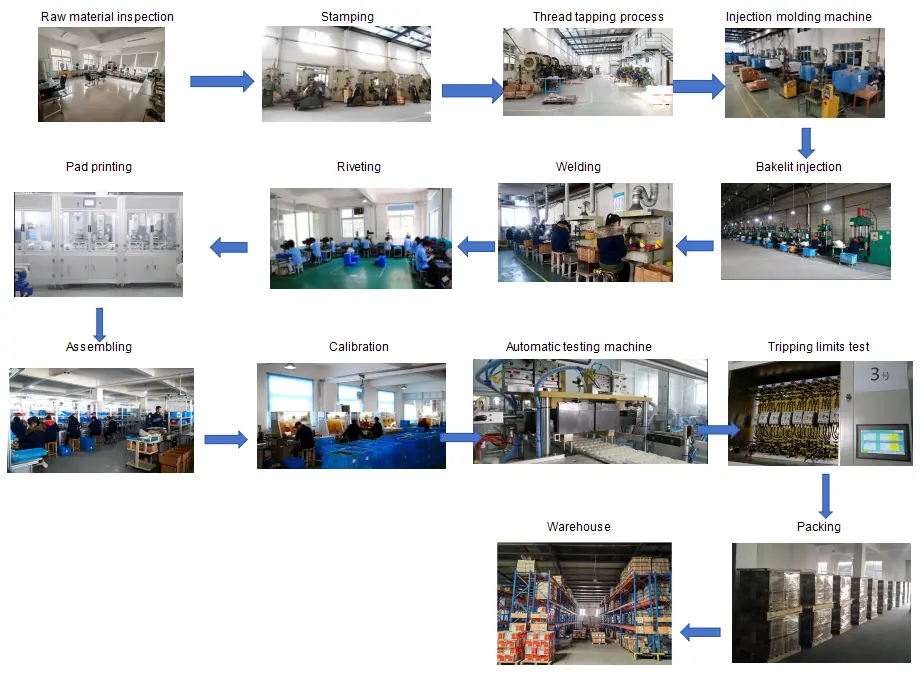

Socodka Xakamaynta Tayada
Kormeerka alaabta ceeriin → Habaynta wax soo saarka → Khadka shirarka → Tijaabada dabeecadda safarka → Tijaabada heerkulka heerkulka → Tijaabada gaaban ee → Tijaabada gabowga → Muuqaalka & cabbirka hubinta → Baakadaha → Kormeerka ugu dambeeya ka hor inta aan la dhoofin

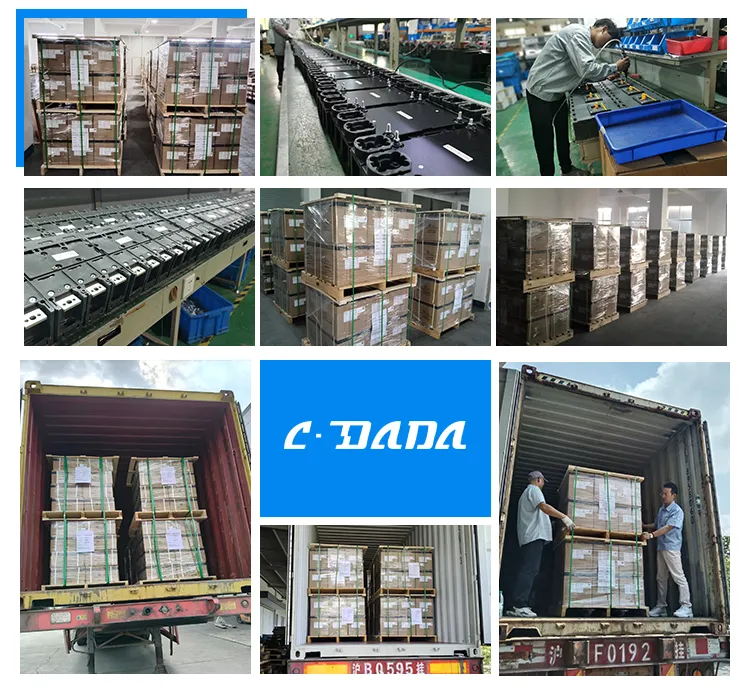

Baakadaha & Rarista
★ kartoon dhoofinta caadiga ah + sariiraha alwaax ee gaadiidka badbaadada leh
★ Sumadda: moodeel, hadda, tiir, tiro, shahaado
★ Ku haboon badda, hawada iyo saadka dhulka
Shahaadooyinka
IEC60947-2, GB14048.2, CE, CB, ROHS iyo oggolaanshaha kale ee caalamiga ah.

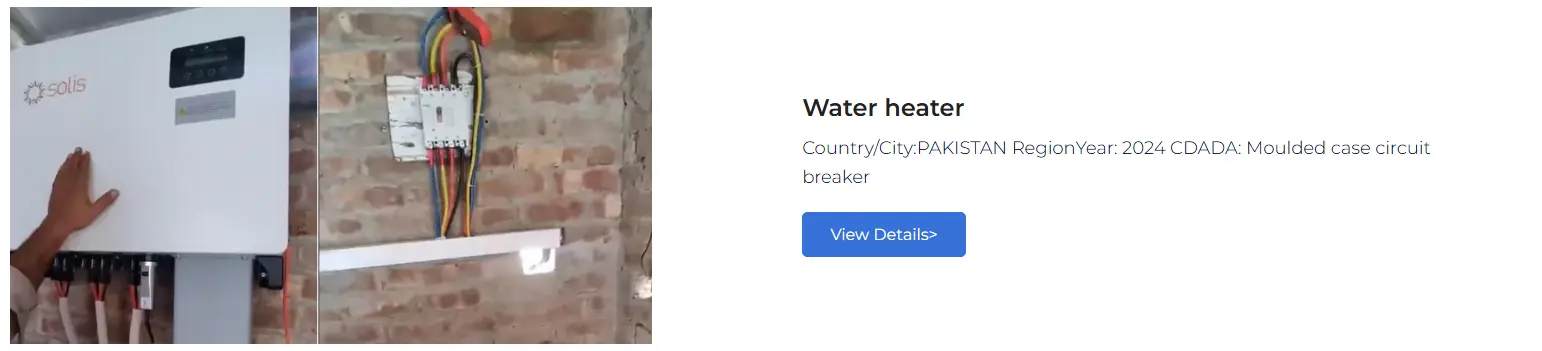

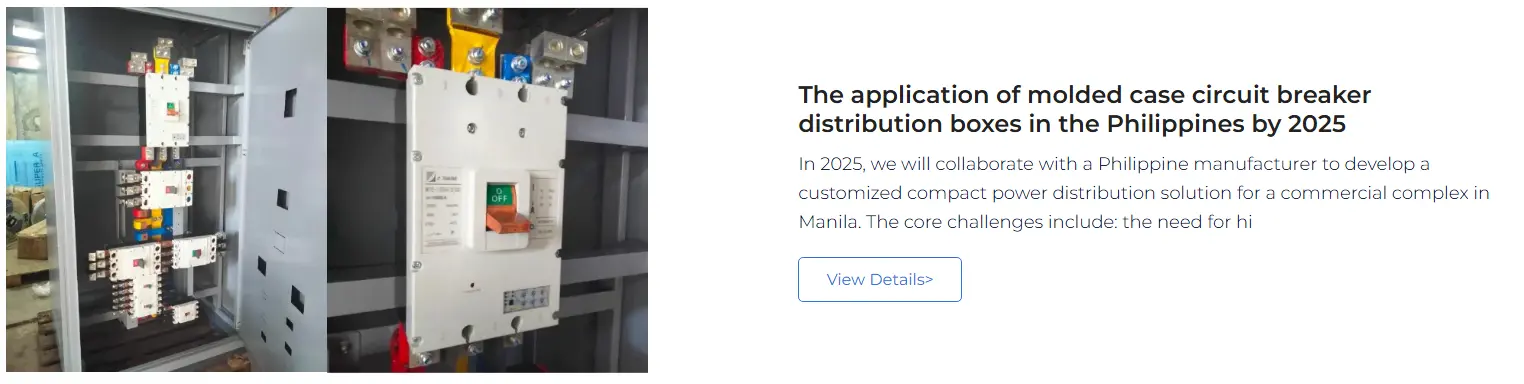

Kiisaska iskaashiga macaamiisha
CDADA DAM2 taxanaha MCCB waxaa la siiyay macaamiisha caalamiga ah, oo ay ku jiraan isku dhafka nidaamka qaybinta awoodda, warshadeeyayaasha qalabka warshadaha, warshadaha beddelka, qandaraaslayaasha dhismaha iyo noocyada OEM ee Yurub, Koonfur-bari Aasiya, Bariga Dhexe, Afrika iyo Koonfurta Ameerika. Waxaan bixinaa sahay badan oo xasilloon iyo xalal la habeeyey oo loogu talagalay la-hawlgalayaasha muddada-dheer.
