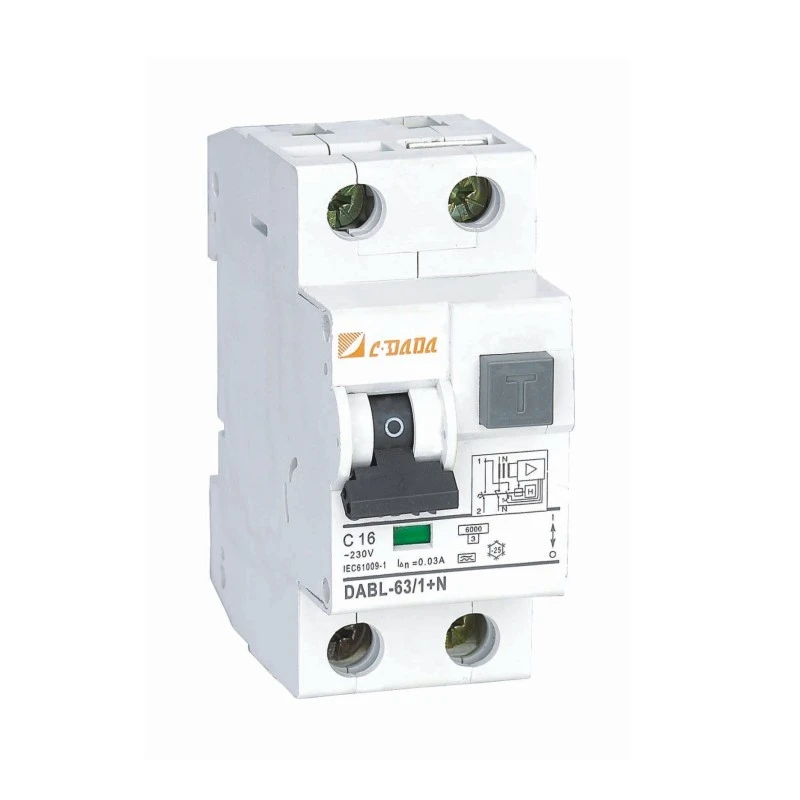

2P 4P Nooca Elektrooniga ah ee RCBO

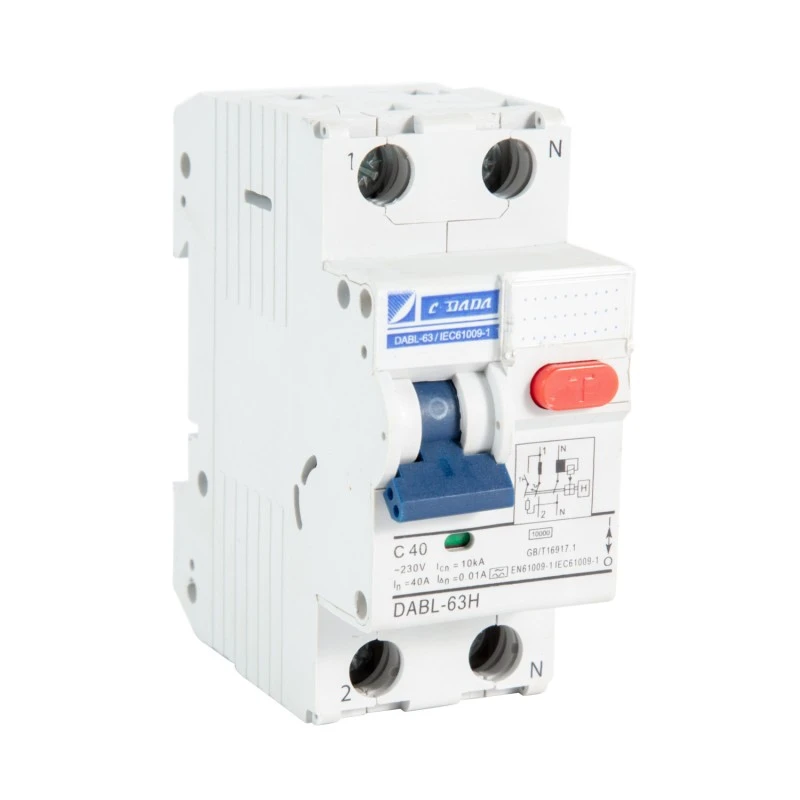

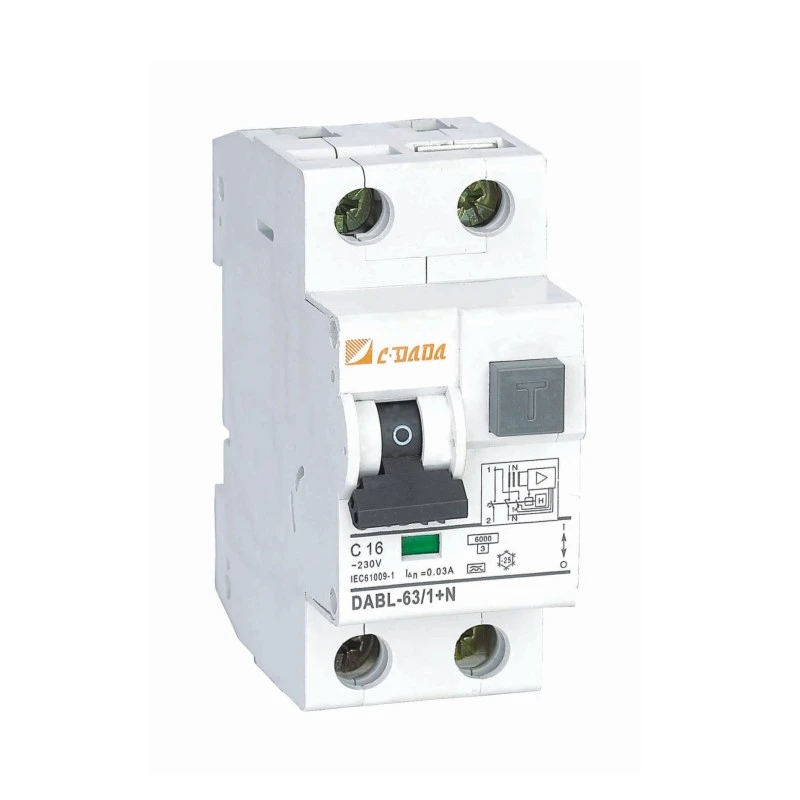

Ku sarraysii badbaadada qalabka korantada ee casriga ah CDADA DABL-63 2P 4P Nooca Elektrooniga ah RCBO — is haysta, garaadka hadhaaga wareegga hadda jira oo ilaalin xad dhaaf ah oo ay farsamaysay Shanghai DADA Electric CO., LTD. Loogu talagalay codsiyada 2P (1+N) iyo 4P (3+N), RCBO-dan elegtarooniga ah waxay bixisaa ilaalin afar-hal ah:

Kahortagga shoogga korontada (iyada oo loo marayo ogaanshaha hadda jira ee 30mA),

ilaalinta xad dhaafka ah,

Joojinta wareegga gaaban (awoodda jebinta 6kA),

Xakamaynta qalliinka (isku-dhafka D-class varistor).

Ku habboon saldhigyada bannaanka, nalka garaashka, wareegyada dhulka hoostiisa, iyo quudiyeyaasha qalabka, DABL-63 waxay la kulmeysaa heerarka CE, CB, iyo RoHS waxayna muujisaa moduleka kala duwanaanta elektiroonigga ah ee ogaanshaha cilladda xasaasiga ah. Iyada oo leh ballac DIN 2-module ah, tilmaame booska xidhiidhka madax banaan, iyo -25°C ilaa +40°C kala duwanaanta hawlgalka, waxa loo dhisay isku halaynta cimilada kala duwan iyo goobaha la dego/ganacsiga.

Tilmaamaha Muhiimka ah

Model: DABL-63 Taxanaha

Nooca: RCBO Elektaroonigga ah (Hadhaaga Jabiya Hadda oo leh Ilaalinta Joogtada ah)

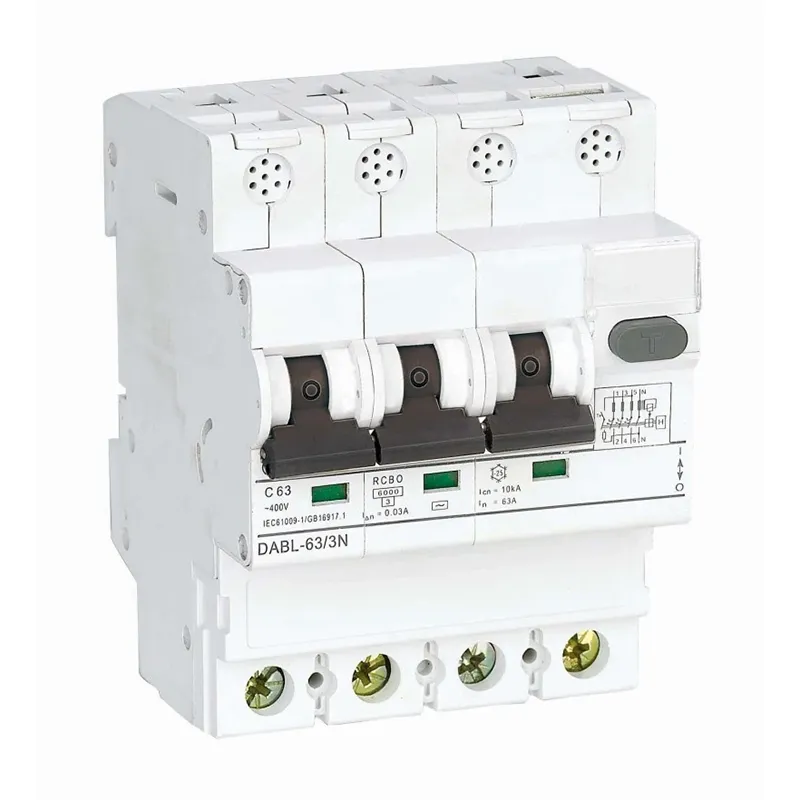

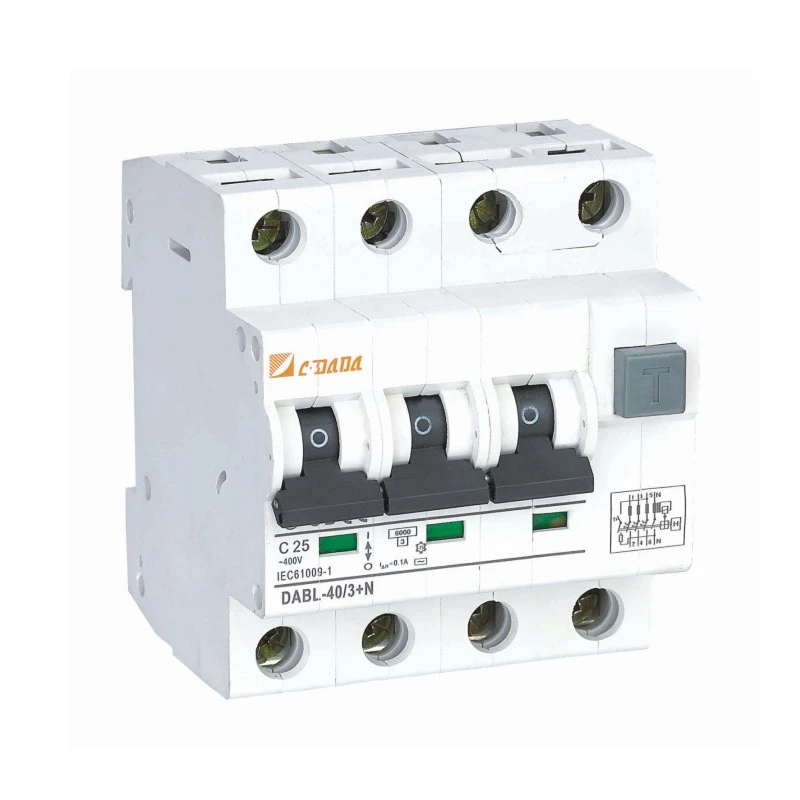

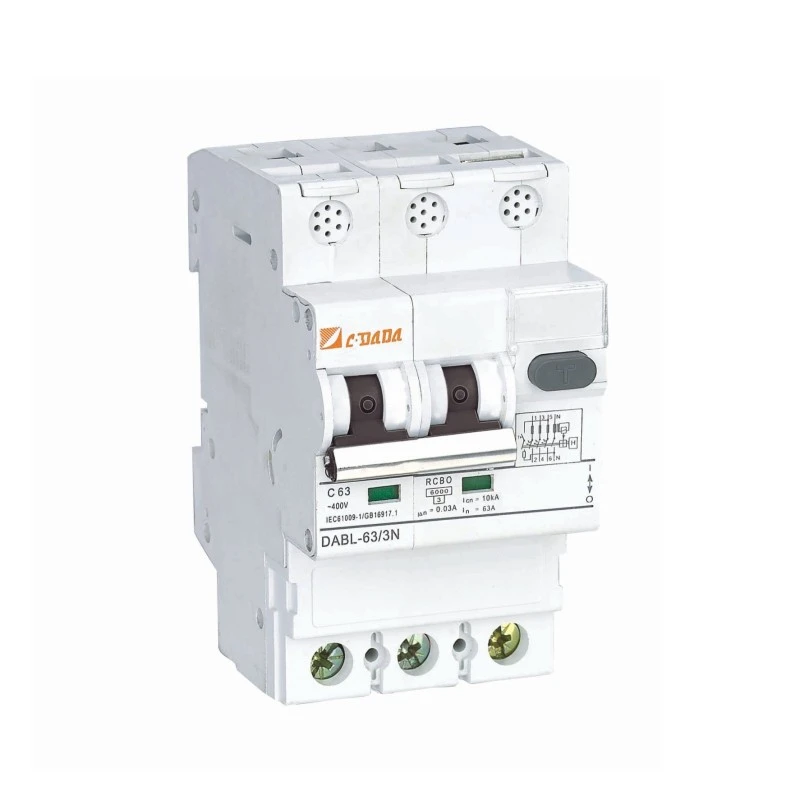

Tiirarka: 2P (1+N) ama 4P (3+N)

Hadda lagu qiimeeyay (gudaha): Caadi ahaan 6-63A (ku salaysan DAB7-63 madal)

Dareenka Hadhaaga (I△n): 30mA (heerka ilaalinta shakhsi ahaaneed)

Jebinta Awoodda: 6kA,10kA

Hawlaha Ilaalinta:

Hadhaaga hadda (daaqid)

Culays badan (kuleyl)

Wareeg gaaban (electromagnetic)

Korontada kor u kaca (iyada oo loo marayo varistor-ka-D-ku-dhisan)

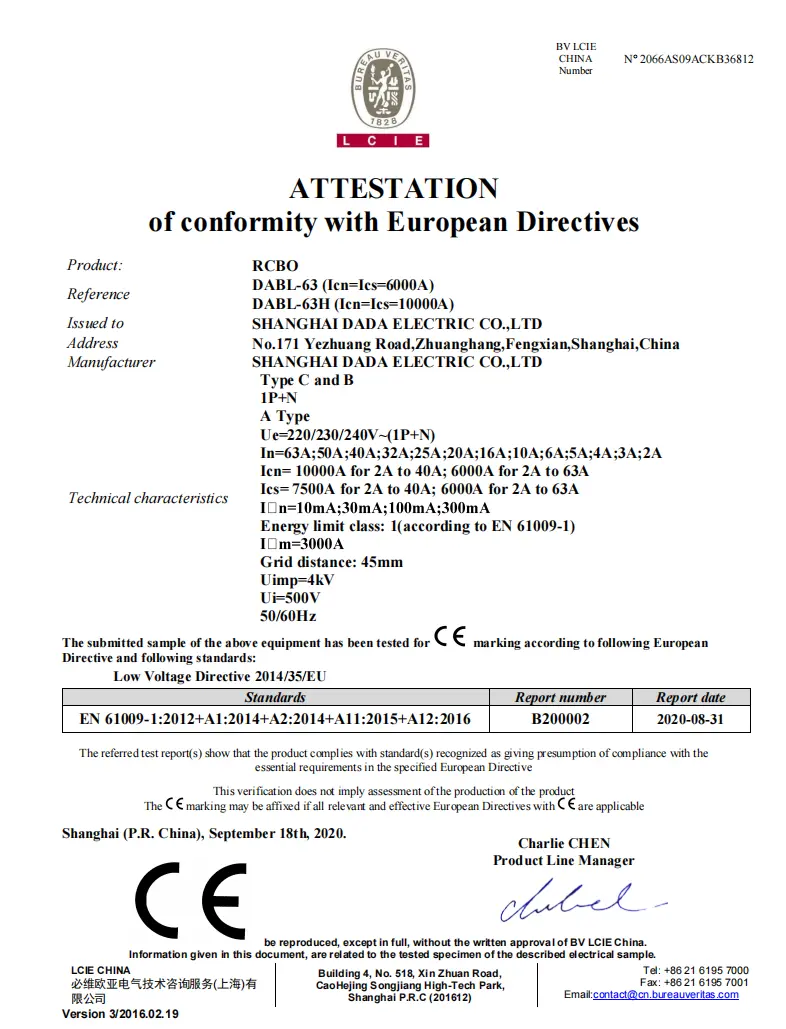

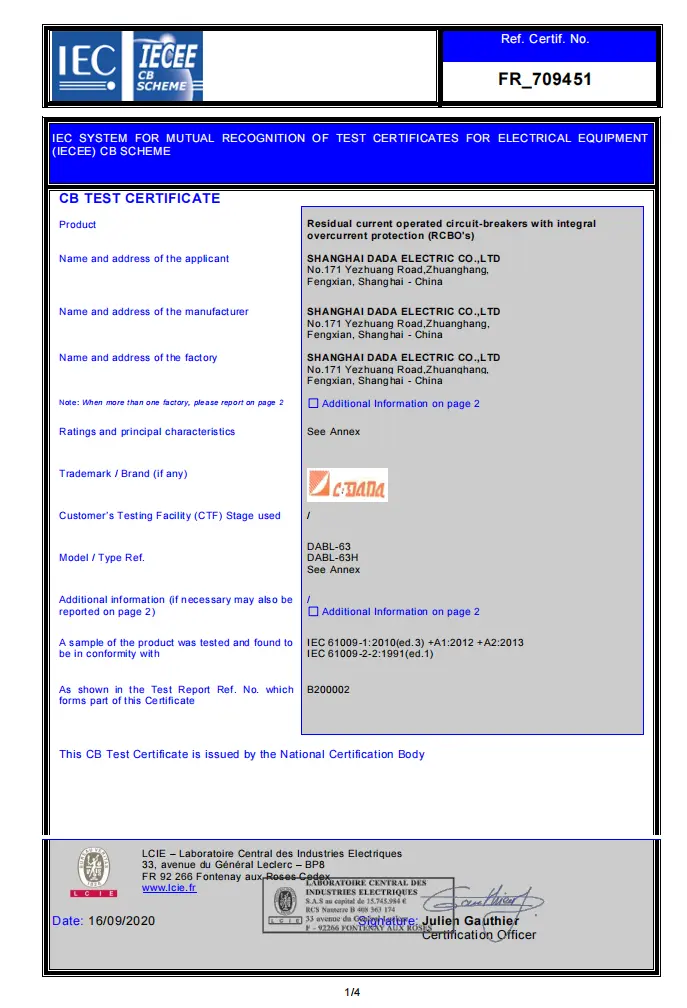

Shahaadooyinka: CE, CB, RoHS

Heerkulka shaqada: -25°C ilaa +40°C

Ku dhejinta: 2-module balac ah oo ku yaal 35mm tareenada DIN

Xaashida Xogta Farsamada

Astaamaha Muhiimka ah:

★ Qaabka kala duwanaanta elegtarooniga → dareen sare & jawaab degdeg ah

Tilmaamaha xidhiidhka madax-banaan (wuxuu muujinayaa DAN/dami/dhammaan xaalada safarka)

★ badhanka "TEST" ee hubinta shaqeynta bishii

Xajiyeyaasha terminalka ee la fiirsaday → kulayl hoose, xajin xoog badan

Qalabka isdhaafsiga ah (+/-) → rakibid sahlan, ma jiraan qaybo la tuuray

★ Daawaha xidhiidhka lacag-qaadka ah → cimri dheer, iska caabin hoose

Maxaad u doorataa CDADA Electronic RCBO?

★ All-in-One Ilaalinta ee 2 Modules

Beddela MCB + RCCB + ilaaliyaha qalliinka - kaydinta booska, qiimaha, iyo kakanaanta fiilooyinka.

★ Badbaadada la xoojiyey ee lagu xakameynayo qalliinka

Wareegga isku dhafan ee leh moduleka elektarooniga ah ee ilaalinta kala duwan, D-class varistor iyo jebinta wareegga isku dhafan ee taxanaha DAB7-63 waxay hubisaa 4 nooc oo ilaalin ah: laga bilaabo hadda haraaga (hadda daadinta), wareegga gaaban; culayska xad-dhaafka ah iyo kororka kororka.

★ Aragtida Xaaladda Dhabta ah

Si ka duwan jabiyayaasha caadiga ah, tusaha xidhiidhka madaxa banaan wuxuu muujinayaa xaalada dhabta ah ee xidhiidhka—xitaa haddii gacanta gacanta lagu hayo ON.

★ Naqshadeeye Saaxiibtinimo

● Heerkul ballaaran → ku haboon garaashyada aan kululayn ama saqafyada kulul

● Garoomada la jeexjeexay → ammaan ah, isku xirka iska caabbinta hooseeya

● Laba-drive → wuxuu ku shaqeeyaa qalab flat ama Phillips ah

★ shahaado caalami ah

Ansixinta CE, CB, iyo RoHS waxay xaqiijiyaan u hoggaansanaanta Yurub, Aasiya, Afrika, iyo wixii ka dambeeya — ku habboon xirmooyinka dhoofinta.

★ Ku Fiican Goobaha Khatarta Sarreya

Lagu taliyay meelaha bannaanka ah, meelaha qoyan, garaashyada, iyo saqafka hoose ee ay khatarta shoogga iyo dabku kor u kacdo.

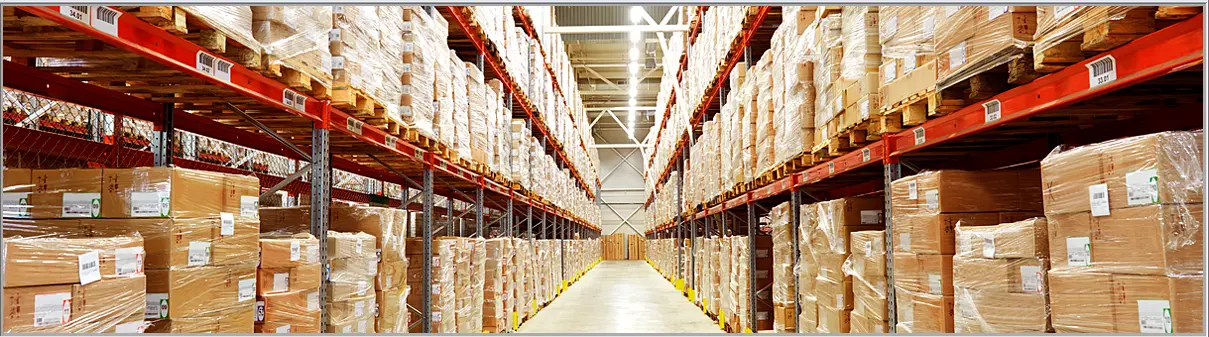

★ Iyada oo sannado badan oo waayo-aragnimo ah u raridda Ruushka iyo dalka Yurub marka lagu daro dhammaan Koonfurta Ameerika, Yurub, Aasiya, iyo Australia, CDADA ayaa daboolay!

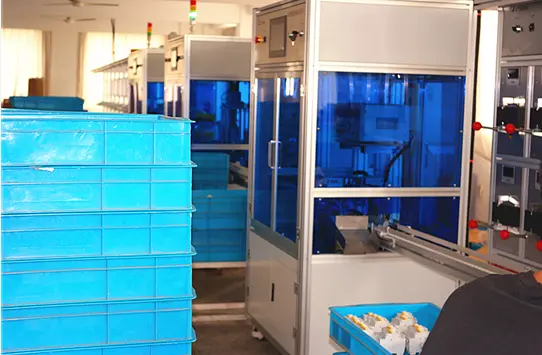

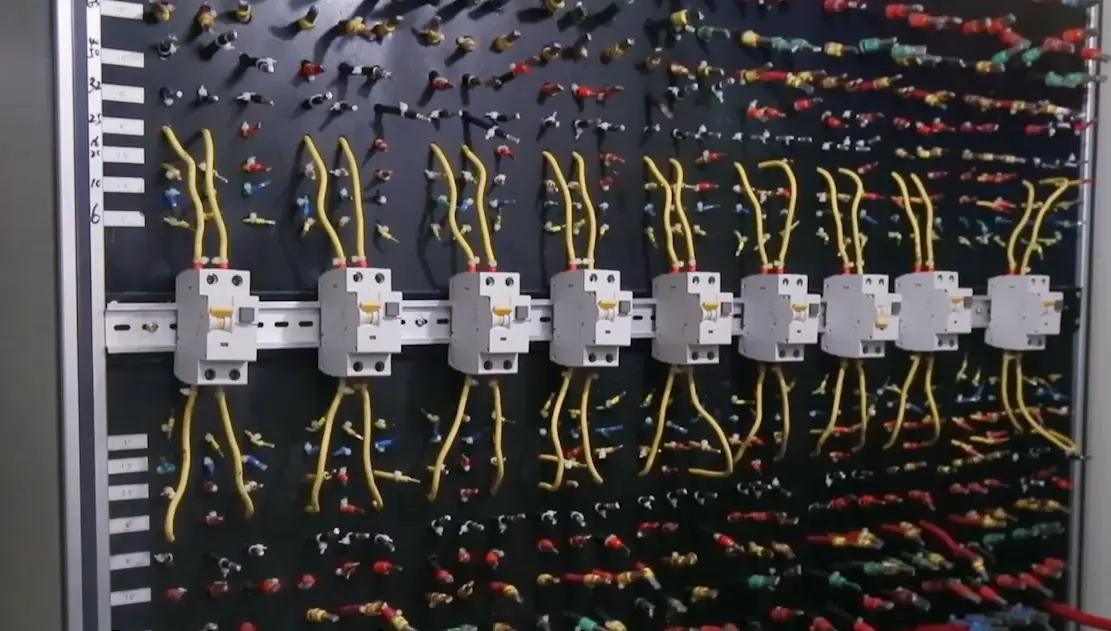

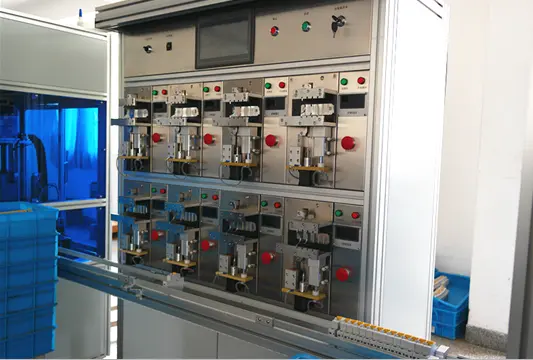

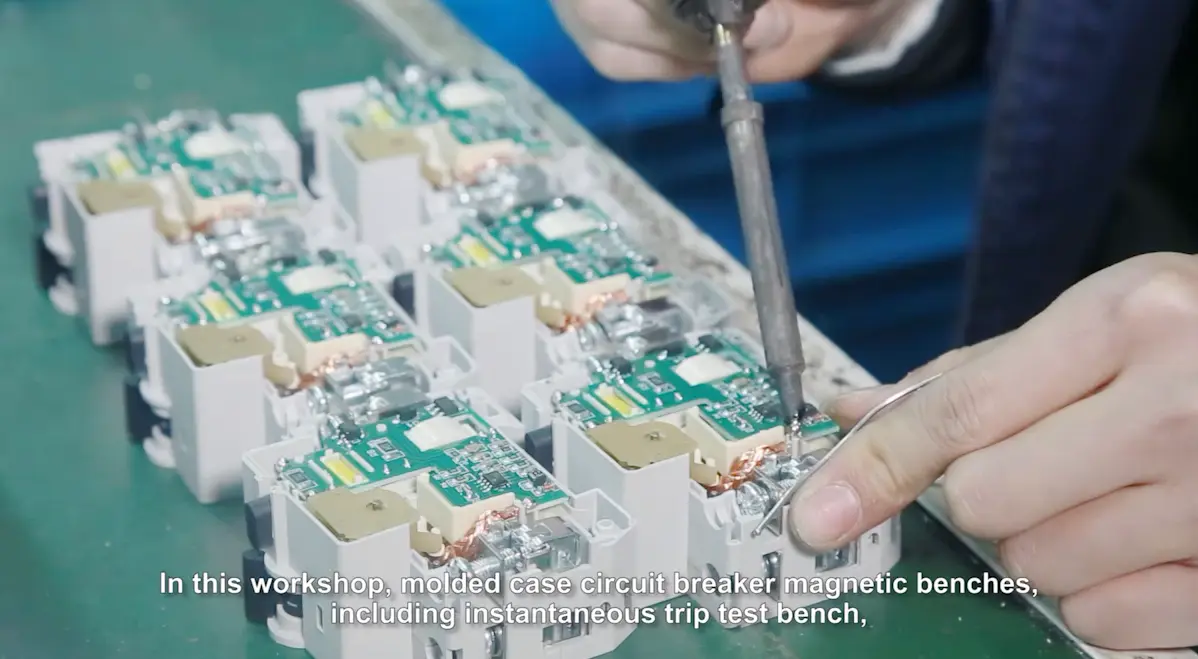

Maaddaama ay siyaasaddeenu tahay in 100% aan kormeerno dhammaan alaabooyinka ka taga xaruntayada, waxaan ku dammaanad qaadi karnaa si hubaal ah in alaabtu tahay mid shaqaynaysa 100% sax ka hor inta aanay ka bixin xaruntayada.

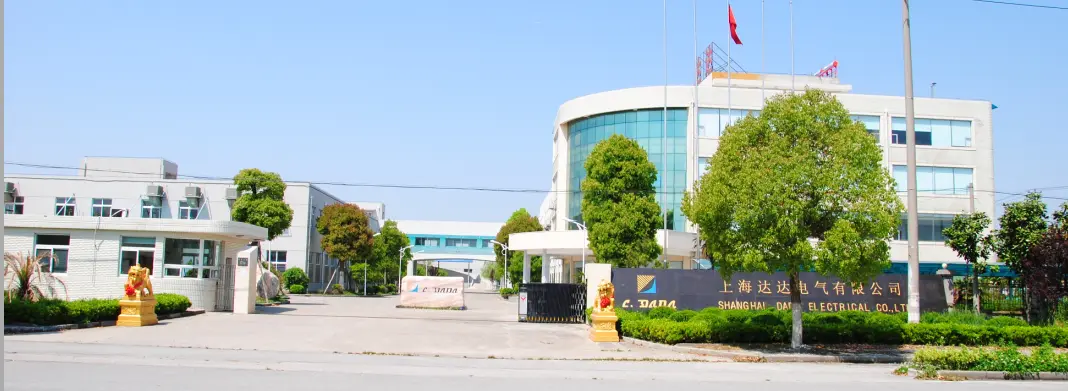

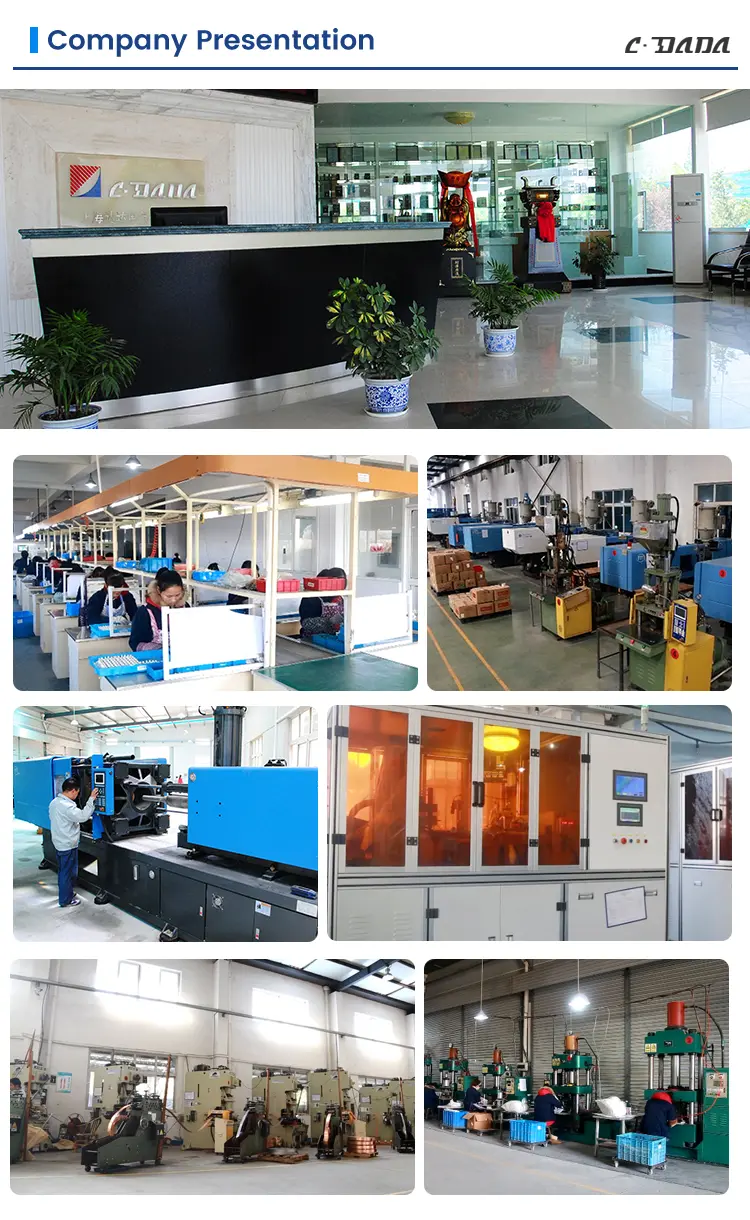

★ Waan ku faraxsanahay inaad na soo booqato wakhti kasta! Tani waa habka kaliya ee aan ku yeelan karno xakameyn buuxda oo ku saabsan waqtiyada wax soo saarka iyo habka wax soo saarka.

Codsiyada caadiga ah

Sockets Bannaanka: Qalabka beerta, dabaylaha EV, nalalka fasaxa

Garaashka & Iftiinka Qeybta Hoose: Qoyan, deegaan qabow

Wareegyada Qalabka: Mashiinnada dharka, makiinada weelka dhaqda, talaajadaha

Awoodda Aqoon-is-weydaarsiga: Meesha qalabka iyo qoyaanku ku wada nool yihiin

Guddi-hoosaadyada deegaanka: is haysta, xal ilaalin badan

Su'aalaha Inta Badan La Isweydiiyo (FAQ)

Q1: Waa maxay faraqa u dhexeeya RCCB iyo RCBO?

J1: RCCB kaliya waxay ogaataa haraaga (dhaqashada) hadda - kama ilaalinayso culeyska xad dhaafka ah ama wareegyada gaaban. RCBO (sida DABL-63) waxay ku daraysaa RCCB + MCB hal qalab — oo bixiya daadinta + culayska xad dhaafka ah + ilaalinta wareegga gaaban.

Q2: RCBO-dan runtii ma ka ilaalisaa qalliinka?

J2: Haa! Waxa ku jira varistor-class-D-ku dhex-dhisan oo xakamaynaya koronto-dhaafka ku-meel-gaadhka ah (tusaale, hillaaca ama beddelidda kor u kaca) — sifo naadir ah oo ku jirta heerka RCBO-yada.

Q3: Waa maxay sababta RCBO-ga elegtarooniga ah looga dooranayo mid elektromagnetic ah? A3:

RCBO-yada elegtarooniga ah waxay bixiyaan dareen sare, cabbir yar, waxayna isku dari karaan hawlo dheeraad ah (sida ilaalinta qalliinka).

● Waxay u baahan yihiin danab xariiq ah si ay u shaqeeyaan-sidaas daraadeed ma fiicna haddii dhexdhexaadku yahay mid aan la isku halayn karin.

Noocyada Electromagnetic waxay ku shaqeeyaan 0V laakiin way ka weyn yihiin oo ma laha astaamo caqli-gal ah.
→ Shabakado deggenaansho leh, RCBO-yada elegtarooniga ah sida DABL-63 ayaa ugu fiican.

Q4: 30mA ma ku filan yahay ilaalinta shakhsi ahaaneed?

J4: Haa. 30mA waa heerka caalamiga ah (IEC) ee ilaalinta naxdinta naf-badbaadinta ee wareegyada la deggan yahay.

Q5: Maxaad CDADA ugu doorataa RCBO elegtaroonig ah?

A5: CDADA way soo baxaysaa sababtoo ah:

● Runta 4-in-1 ilaalinta ( daadinta + culeyska xad dhaafka ah + wareegga gaaban)

● Naqshadaynta 2-module ee is haysta waxay badbaadisaa booska guddida

● Tilmaamaha xiriirka madax-bannaan ayaa hubinaya heerka saxda ah

● Shahaadooyinka caalamiga ah (CE/CB/RoHS)

● OEM-diyaar u ah: tayada joogtada ah, taageerada Ingiriisiga, qiimaha badan
