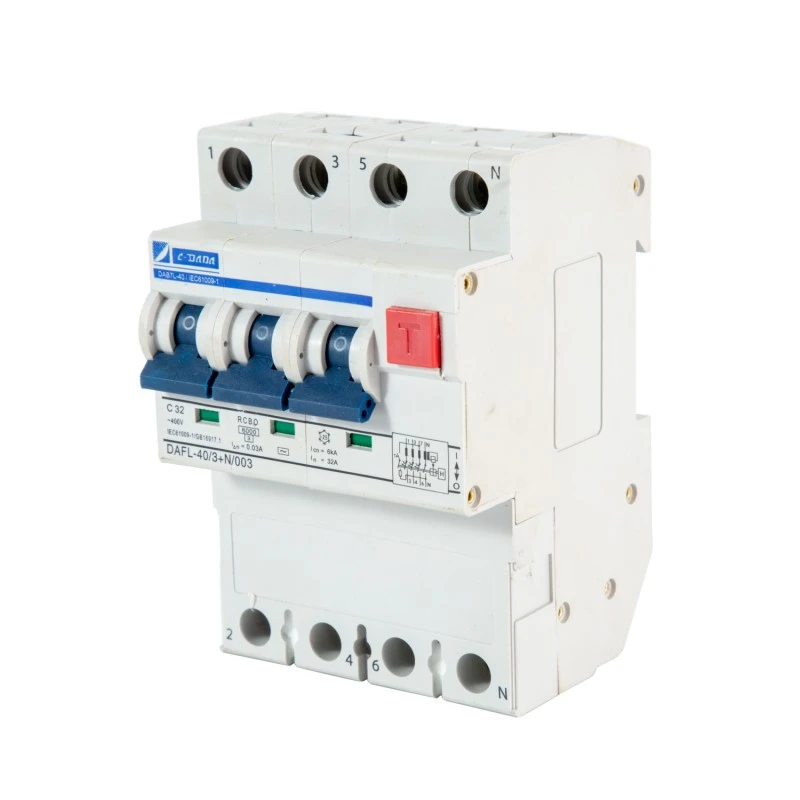

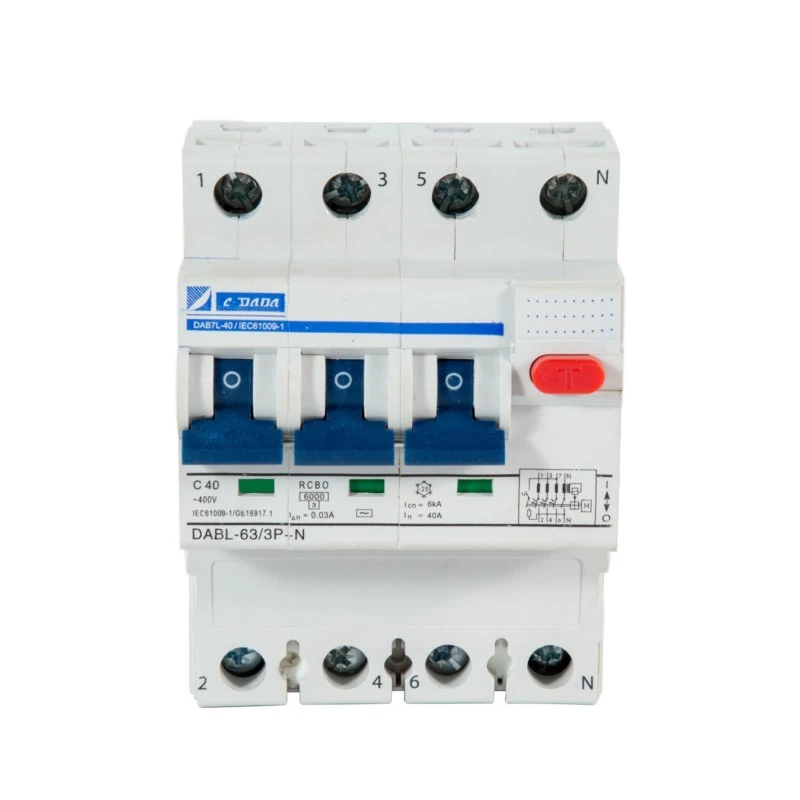

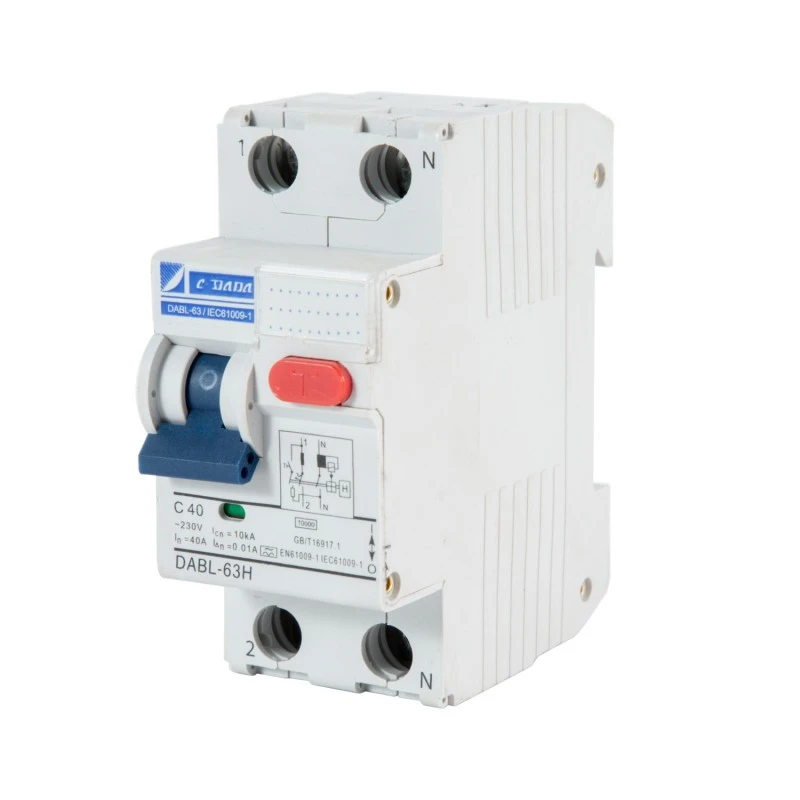

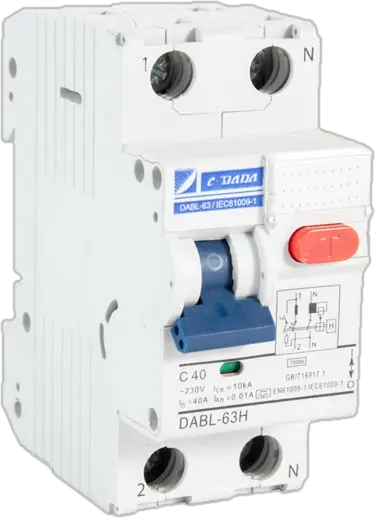

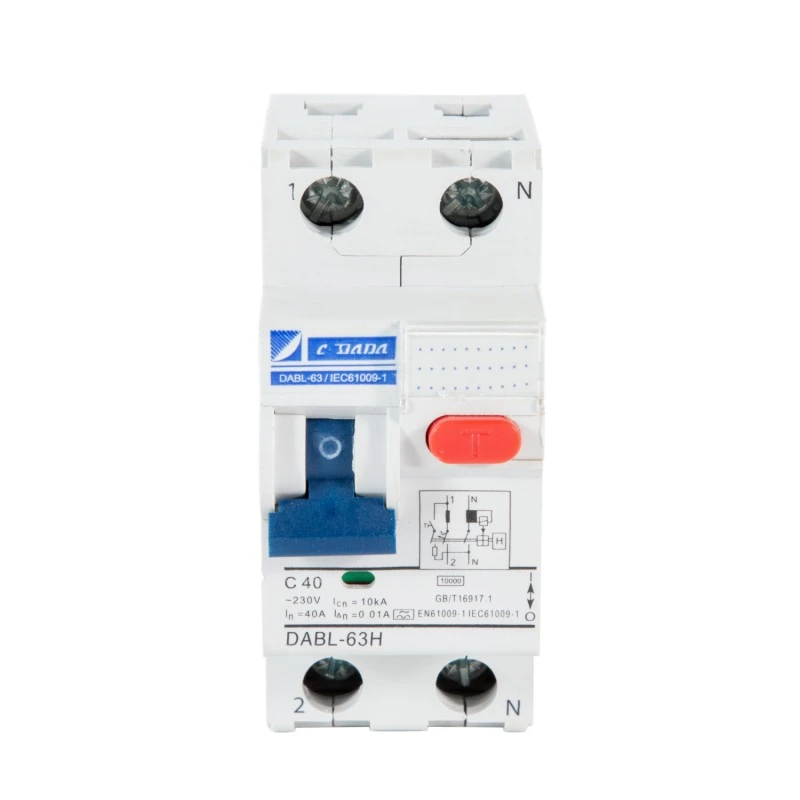

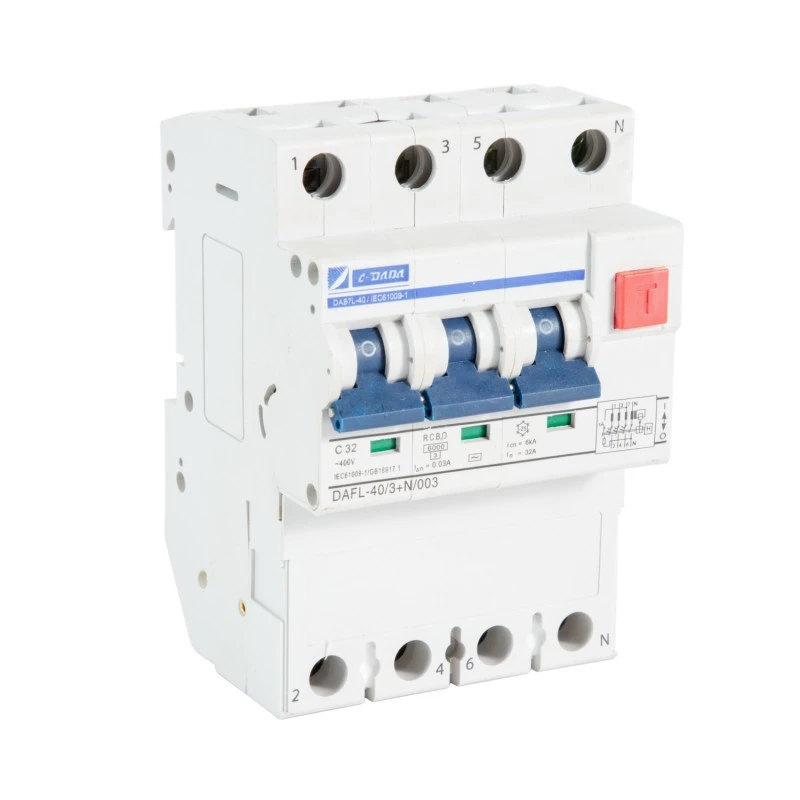

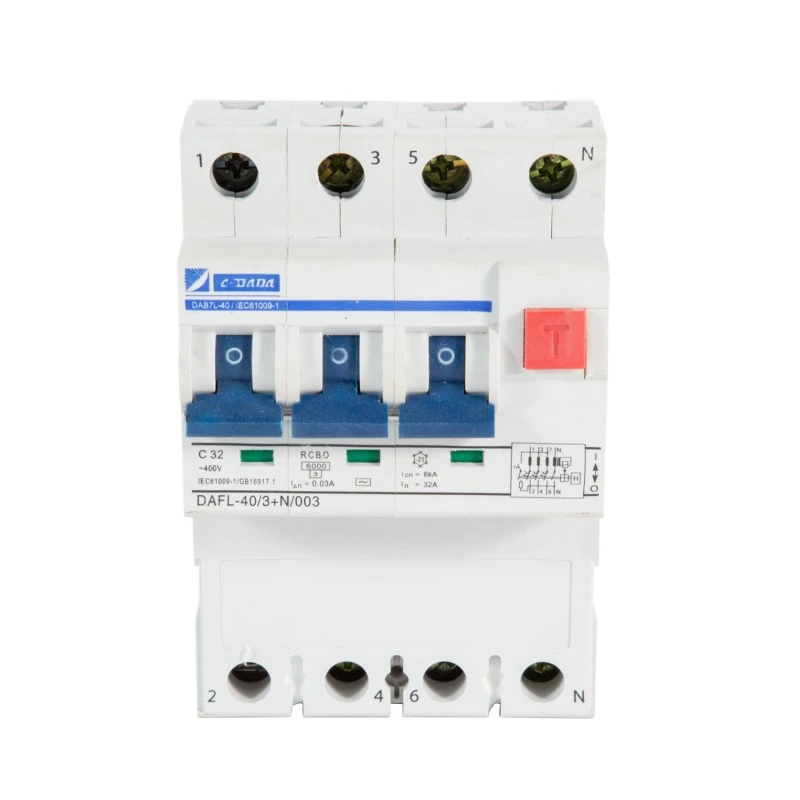

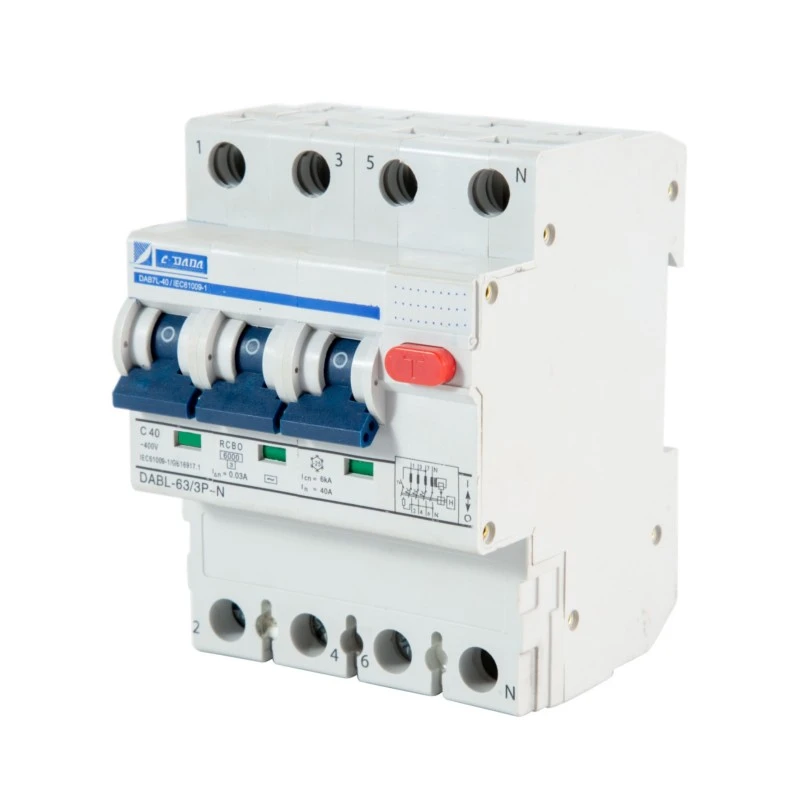

2P 4P Electromagnetic RCBO

Badbaadada aan xumaanta lahayn ee deegaanka aan la hubin isku halaynta awooda, Shanghai DADA Electric CO., LTD. waxay soo bandhigaysaa CDADA DABF-63 2P 4P Electromagnetic RCBO ah 2P/4P electromagnetic residual circuit breaker oo run ah oo leh ilaalin xad dhaaf ah oo ku shaqeeya iyada oo aan lahayn qalab elektaroonik ah ama koronto dibadeed. Naqshadeynta heerarka IEC, RCBO-dan waxay ku bixisaa saddex difaac oo muhiim ah hal qalab:

★ Kahortagga shoogga korontada (iyada oo loo marayo ogaanshaha hadda jira ee 30mA),

★ ilaalinta xad-dhaafka ah (habka kulaylka),

★ hakad gaaban oo wareeg ah (sii dayn magnetic, 6kA).

Lagu taliyay in bannaanka, garaashyada, sagxadaha hoose, iyo rakibaadda miyiga, DABF-63 way sii shaqaynaysaa xataa haddii dhexdhexaadku lumo, korontadu burburto, ama xilliga mugdiga-faa'iido muhiim ah oo ka duwan beddelka elektaroonigga ah. Iyada oo leh tilmaame madax banaan oo meel la xidhiidha, -25°C ilaa +40°C kala duwanaanta hawlgalka, iyo nakhshad terminal adag, waxa ay keentaa waxqabad ammaan darro ah halka ay ugu muhiimsan tahay.

Tilmaamaha Muhiimka ah

Model: DABF-63 Taxanaha

Nooca: Electromagnetic RCBO (Ma jiro qalab elektaroonig ah, looma baahna koronto kaalmeed)

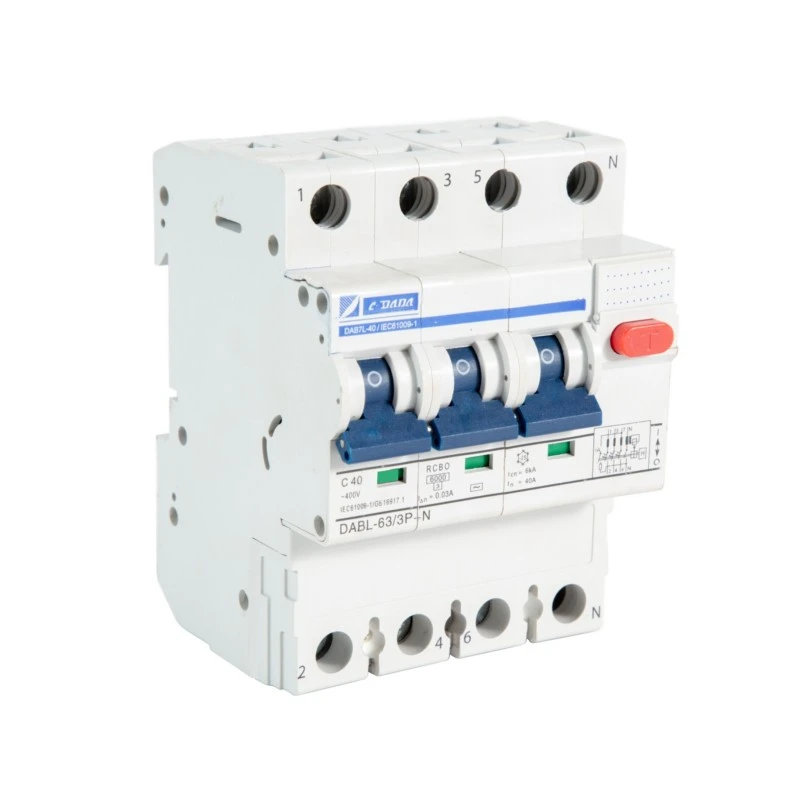

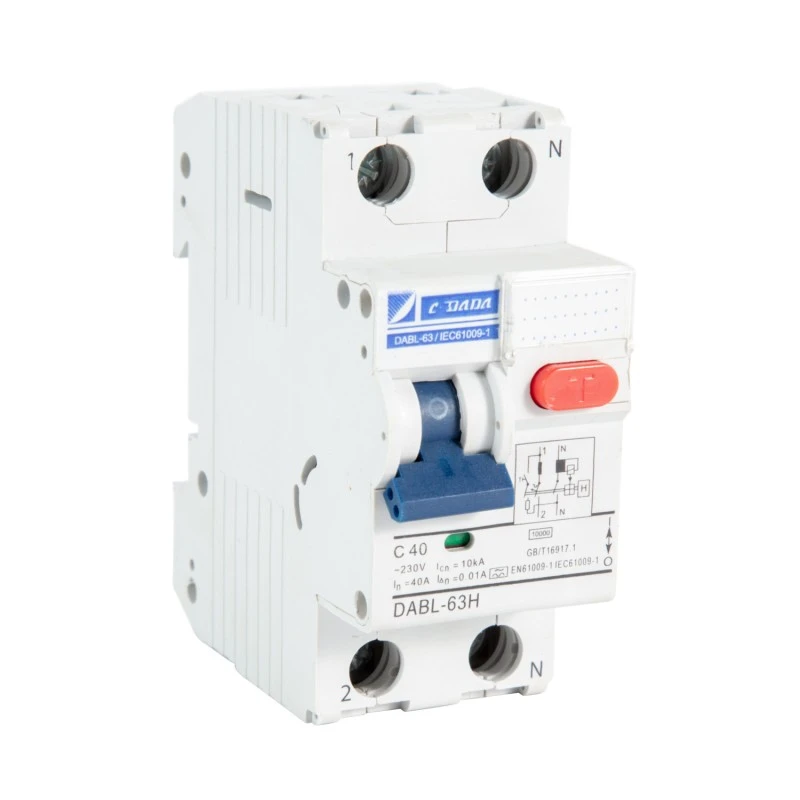

Tiirarka: 2P (1+N) ama 4P (3+N)

Hadda lagu qiimeeyay (gudaha): 6-63A (kala duwanaansho caadi ah oo ku salaysan madal DAB7)

Dareenka Hadhaaga (I△n): 30mA (heerka ilaalinta shakhsi ahaaneed; 100mA ikhtiyaari ah)

Hadda Socod La'aan: 0.5 × I△n

Waqtiga safarka ee I△n: ≤ 0.1s

Awoodda Jebinta: 6kA

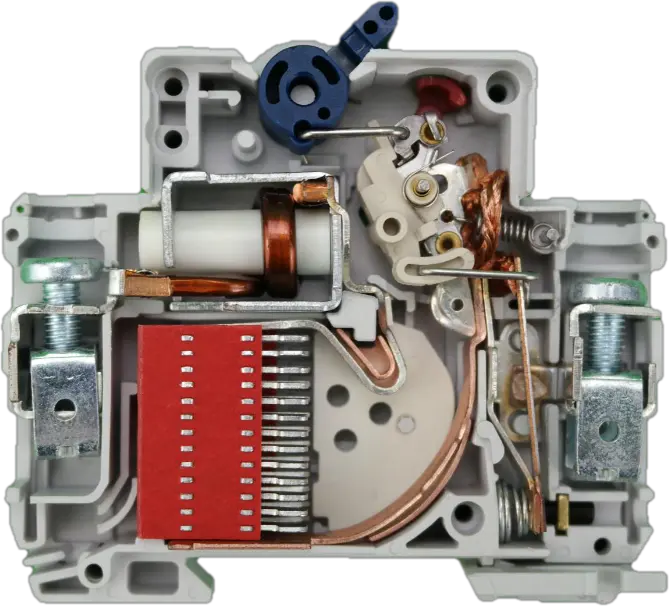

Hawlaha Ilaalinta:

Hadhaaga hadda (daadiska) - dareenka korantada

Culayska xad-dhaafka ah - kulaylka bimetallic

★ Wareeg gaaban - siidaynta magnetic

Heerkulka shaqada: -25°C ilaa +40°C

Ku dhejinta: 2-module balac ah oo ku yaal 35mm tareenada DIN

Astaamaha Muhiimka ah:

★ Farqiga kala duwanaanshaha elektromagnetic ee saafiga ah

Tilmaamaha booska xiriirka madax banaan (dhabta ON/off/hadda safarka)

★ badhanka "TEST" ee hubinta shaqeynta bishii

Xidhiidhada terminalka ee la fiirsaday → hoos u dhaca kulaylka, xajin xoog leh

★ Xidhiidhada lacagta leh → adkeysiga sare, iska caabbinta hooseeya

★ Boolal iskutallaab ah (+/-) → rakibid fudud

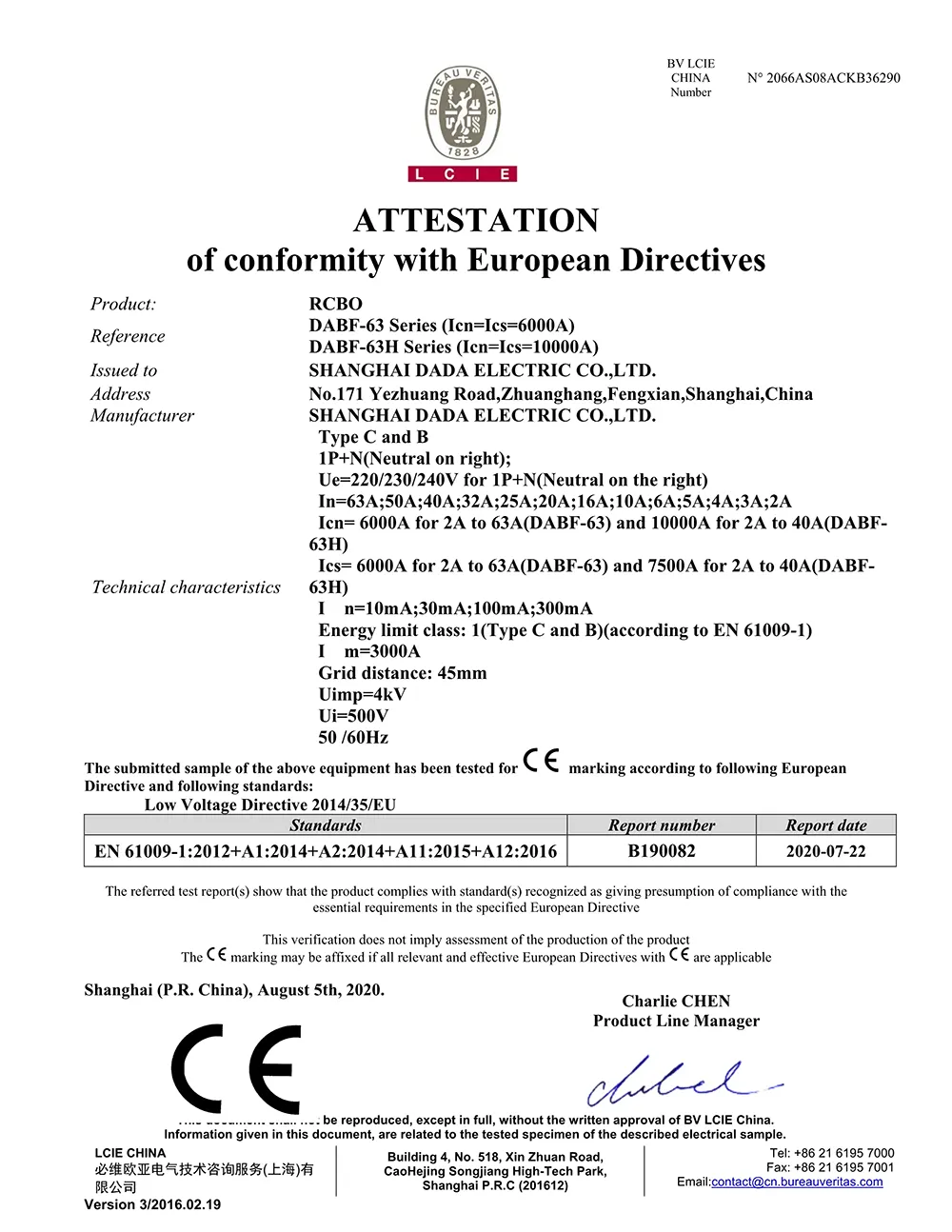

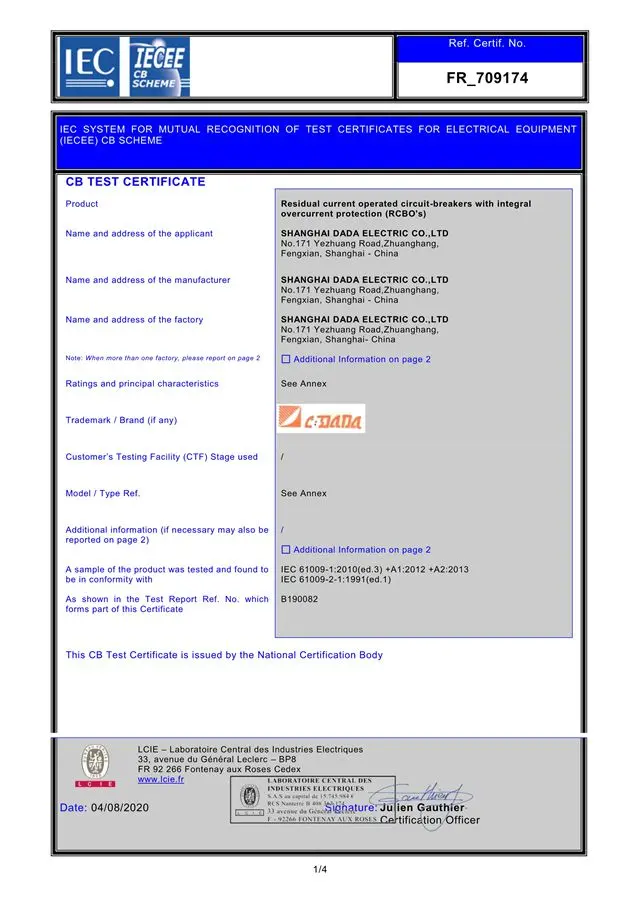

Shahaadooyinka: CE, CB (Qalabka u hoggaansan RoHS)

Maxaad u doorataa CDADA Electromagnetic RCBO?

★ Wuxuu ku shaqeeyaa Awood La'aan - Weligeed

Si ka duwan RCBO-yada elegtarooniga ah,  2P 4P Electromagnetic RCBO uma baahna danab xariiq ah si loo ogaado daadinta—hubinta ilaalinta inta lagu jiro guuldarada dhexdhexaadka ah, kabaxsan, ama maqnaansho dhammaystiran.

★ Ku habboon meelaha adag ama meelaha fog

Ku fiican aagagga miyiga, goobaha dhismaha, beeraha, tunnelyada, iyo gobollada leh shabakado aan degganayn oo qalabka elektarooniga ah ay cilladi karaan.

★ Fail-Badbaado

Ma jiro semiconductors = gaboobay, ma jiraan khaladaad software, ma jiro dareenka EMI. Fiisigiska elektromagnetic ee la xaqiijiyay.

★ Nadiifi Xaalada Hawleed

Tusiyaha xiriirka madaxa banaan wuxuu muujinayaa xaalada dhabta ah ee xiriirka - oo muhiim u ah dayactirka iyo xisaabinta badbaadada.

★ is haysta oo la isku halayn karo

Cabbirka 2-module wuxuu badbaadiyaa booska guddiga, halka xiriirada daawaha qalinka ah iyo terminalka adag ay xaqiijinayaan nolosha adeeg dheer.

★ U Hogaansanaanta Caalamiga ah

shahaado siisay heerarka IEC, CE, iyo CB-oo lagu aaminay dhoofinta iyo mashaariicda caalamiga ah.

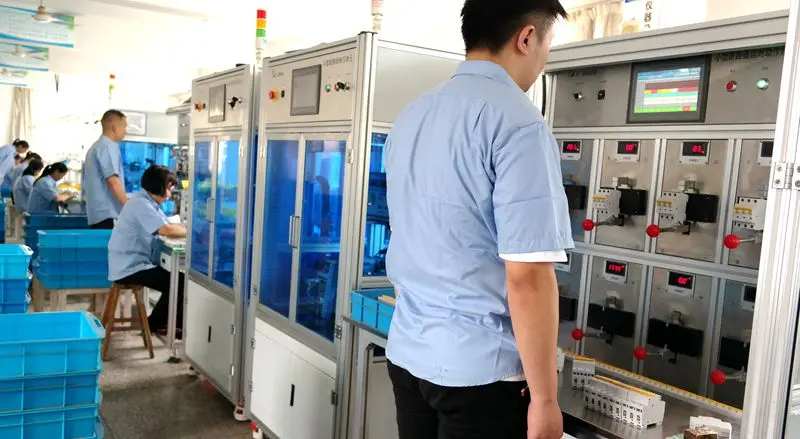

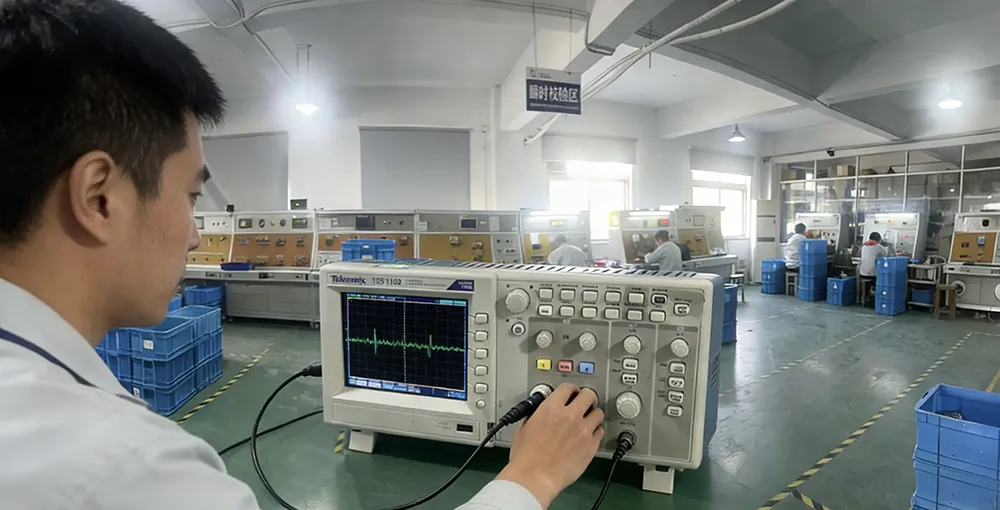

Maaddaama ay siyaasaddeenu tahay in 100% aan kormeerno dhammaan alaabooyinka ka taga xaruntayada, waxaan ku dammaanad qaadi karnaa si hubaal ah in alaabtu tahay mid shaqaynaysa 100% sax ka hor inta aanay ka bixin xaruntayada.

★ Waxaan sii wadi doonaa inaan dhisno khibradeena tignoolajiyada anagoo ku maalgelinayna qalabka, hababka, dadka, iyo shahaadooyinka kuwaas oo ka muuqan doona badeecadeena iyo ugu dambeyntii qancinta macaamiishayada.

Codsiyada caadiga ah

Mashaariicda Korontada Miyiga

Sockets Outdoor & EV Points Charging (lakabka aasaasiga ah)

Garaashyada, Saqafka hoose iyo goobaha waxbarashada (qoyan, jawi qabow)

TT Earthing Systems (halka daacadnimada dhexdhexaadka ah ay liidato)

Soo-celinta Wareegyada & Guddiyada Gurmadka

Su'aalaha Inta Badan La Isweydiiyo

Q1: Waa maxay faraqa u dhexeeya elektaroonigga iyo korantada RCBOs?

A1:

Q2: Kani RCBO ma bixiyaa difaac qalliin ah?

J2: Maya Haddii loo baahan yahay ka-hortag qalliin, ku dheji SPD gaar ah (qalabka ilaalinta qalliinka).

Q3: 30mA ma ku filan yahay ilaalinta naxdinta shakhsi ahaaneed?

J3: Haa. 30mA waa heerka heerka IEC ee ilaalinta nafta-badbaadinta ee ka dhanka ah xiriirka tooska ah ee wareegyada deegaanka iyo ganacsiga.

Q4: Ma loo isticmaali karaa ilaalinta ugu muhiimsan ee dakhliga soo gala?

A4: Haa-oo leh 6kA jabinta awoodda, DABF-63 waxay u adeegi kartaa ilaalinta soo socota ee looxyada qaybinta yaryar, gaar ahaan nidaamyada TT.

Q5: Maxaad CDADA ugu doorataa RCBO korantada?

A5: CDADA waxay bixisaa:

● Naqshad elektromagnetic oo dhab ah (oo aan lahayn qalab elektaroonik ah oo qarsoon)

● Awoodda hawlgalka 0V ee runta ah

● Cabbirka is haysta ee 2-module- naadir ku ah noocyada korantada

● Tilmaamaha xiriirka madax banaan ee xaqiijinta badbaadada

● Shahaadooyinka caalamiga ah (CE/CB) iyo taageerada OEM-diyaar u ah
