D Xiriiriyaha

Model:LC1-D Series

Shanghai DADA Electric waa soo-saare la isku halayn karo, waxaanan leenahay noocyo noo gaar ah, CDADA. Xiriiriyahayaga D (Taxanaha LC1-D) waa IEC 60947-4-1 shahaado, 3P/4P, ilaa 620A, AC-3/AC-4 la qiimeeyay. Fursadaha korantada gariiradda ballaaran. Waxaan kugula talineynaa badeecadan xakameynta mootada & automation warshadaha, nala soo xiriir si aad u hesho xigasho.

Soo dir weydiin

Sharaxaada Alaabta

Injineer lagu kalsoonaan karo oo kontoroolka mootada ah iyo beddelka awoodda CDADA LC1-D Taxanaha D Xiriiriyaha ah xiriiriyaha AC-waxqabad sare leh oo ay naqshadeysay Shanghai DADA Electric CO., LTD si uu ula kulmo heerarka IEC/EN 60947-4-1. Waxaa loo dhisay codsiyada warshadaha, ganacsiga, iyo kaabayaasha, taxanaha LC1-D wuxuu taageeraa 3-cirif ama 4-tile qaabeyn oo leh qulqulo la qiimeeyay laga bilaabo 9A ilaa 95A (ilaa 620A ee kala duwanaanshiyaha waajibaadka culus) wuxuuna koontaroolaa matoorada 3-wejiga-squirrel-cage motors ilaa 45kW (at 380 AC-4).

Ku qalabaysan xidhiidhada caadiga ah ee 1NO+1NC, waxay si aan kala go 'lahayn ula midowdaa xadhkaha kululaynta kulaylka si loo ilaaliyo mootada buuxda. Ikhtiyaarada AC ama DC (24V-600V), AC-3 iyo AC-4 qaybaha isticmaalka, iyo naqshad adag oo lagu qiimeeyay dahaarka 690V, CDADA D Contactor wuxuu keenaa waxqabad la isku halayn karo ee wareegyo joogsi joogta ah, nidaamyada gaadiidka, bambooyin, kombaresarada, iyo unugyada HVAC-xitaa baahida bay'ada ilaa 40m heerkulka

D Contactor

Tilmaamaha Muhiimka ah

Taxanaha: D Contactor

Sumadda: CDADA | Soo saaraha: Shanghai DADA Electric CO., LTD

Heerka: IEC/EN 60947-4-1

Shahaadada: CE

Tiirarka: 3P ama 4P (la dooran karo)

Xilliga Hawlgelinta (AC-3): 9A - 95A (ilaa 620A oo baaxad leh)

Xakamaynta Awooda Baabuurta (AC-3):

380/415V: 4kW - 45kW

660/690V: ilaa 45kW

Qaybaha ka faa'iidaysiga: AC-3 (matoorada qafiska dabaqa hoose), AC-4 (ku xidhid & inching)

Korontada dahaarka ee la qiimeeyay: 690V AC

Heerkulka deegaanka: -5°C ilaa +40°C

Joog: ≤ 2000m

Koritaanka: Diyaarad toosan ±5°, Koritaanka Qaybta III

Xidhiidhada kaalmaynta: 1NO + 1NC (heerka dhammaan noocyada)

Ikhtiyaarada gariiradda:

Gariiradda AC: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V

Gariirada DC: 24V, 36V, 48V, 110V, 220V

Xaashida Xogta Farsamada

Walxaha		Qaabka	LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32
Tiirka			3/4	3/4	3/4	3/4	3/4
Xiriirka kaaliyaha			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Kuleylinta caadiga ah ee hadda (A) AC-1			20	20	30	40	50
Lagu qiimeeyay shaqeyn hadda (A)	380/400V	AC-1 AC-4	9	12	18	25	32
	380/400V	AC-1 AC-4	3.5	5	7.7	8.5	12
	660/690V	AC-3 AC-4	6.6	8.9	12	18	21
	660/690V	AC-3 AC-4	1.5	2	3.8	4.4	7.5
Korontada dahaarka ee la qiimeeyay (V AC)			690	690	690	690	690
Awoodda la xakameeyey 3-waji mashiinka qafiska (AC-3)	kW	220/230V AC 380/415V AC 660/690V AC	2.2	3	4	5.5	7.5
			4	5.5	7.5	11	15
			5.5	7.5	10	15	18.5
Gariiradda AC (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
Gariiradda DC (V)			24,36,48,110,220

Walxaha		Qaabka	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Tiirka			3/4	3/4	3/4	3/4	3/4
Kaaliyaha Wareegga Wareegga:AC-15,Ue=4 15V le=0.95A Ith=10A			1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC	1NO+1NC
Kuleylinta caadiga ah ee hadda (A) AC-1			60	80	80	110	110
Lagu qiimeeyay shaqeyn hadda (A)	380/400V	AC-3 AC-4	40	50	65	80	95
	380/400V	AC-3 AC-4	18.5	24	28	37	44
	660/690V	AC-3 AC-4	34	39	42	49	49
	660/690V	AC-3 AC-4	9	12	14	17.3	21.3
Korontada dahaarka ee la qiimeeyay (V AC)			690	690	690	690	690
Awoodda la xakameeyey 3-waji mashiinka qafiska (AC-3)	KW	220/230V AC 380/415V AC 660/690V AC	11	15	18.5	22	25
			18.5	22	30	37	45
			30	37	37	45	45
Gariiradda AC (V)			24,36,48,110,127,220,240,380,415,440,480,500,600
Gariiradda DC (V)			24,36,48,110,220

Walxaha			Qaabka		LC1-D115		LC1-D150		LC1-D170		LC1-D205		LC1-D245
Tiirka					3		3		3		3/4		3/4
Kuleylinta caadiga ah ee hadda (A) AC-1					200		200		200		275		280
Lagu qiimeeyay shaqeyn hadda (A)	380/400V		AC-3 AC-4		115		150		170		205		245
					50		65		70		75		85
	660/690V		AC-3 AC-4		70		90		100		108		115
					25		32		35		38		40
Korontada dahaarka ee la qiimeeyay (V AC)					690		690		690		690		690
Awoodda la xakameeyey 3-waji mashiinka qafiska (AC-3)	kW		380/415V AC 660/690V AC		55		75		75		90		110
					80		100		100		110		140
Gariiradda AC (V)					110,127,220,240,380,415,440,480,500,600
Walxaha				Qaabka		LC1-D300		LC1-D410		LC1-D475		LC1-D620
Tiirka						3/4		3/4		3/4		3/4
Kuleylinta caadiga ah ee hadda (A) AC-1						360		430		580		850
Lagu qiimeeyay shaqeyn hadda (A)		380/400V		AC-3 AC-4		300		410		475		620
						124		150		185		188
		660/690V		AC-3 AC-4		190		235		290		360
						60		72		85		170
Korontada dahaarka ee la qiimeeyay (V AC)						690		690		690		690
Awoodda 3-waji ee gacanta lagu hayo mashiinka qafiska (AC-3)		kW		380/415V AC 660/690V AC		160		200		250		335
						220		280		330		450
Gariiradda AC (V)						110,127,220,240,380,415,440,480,500,600

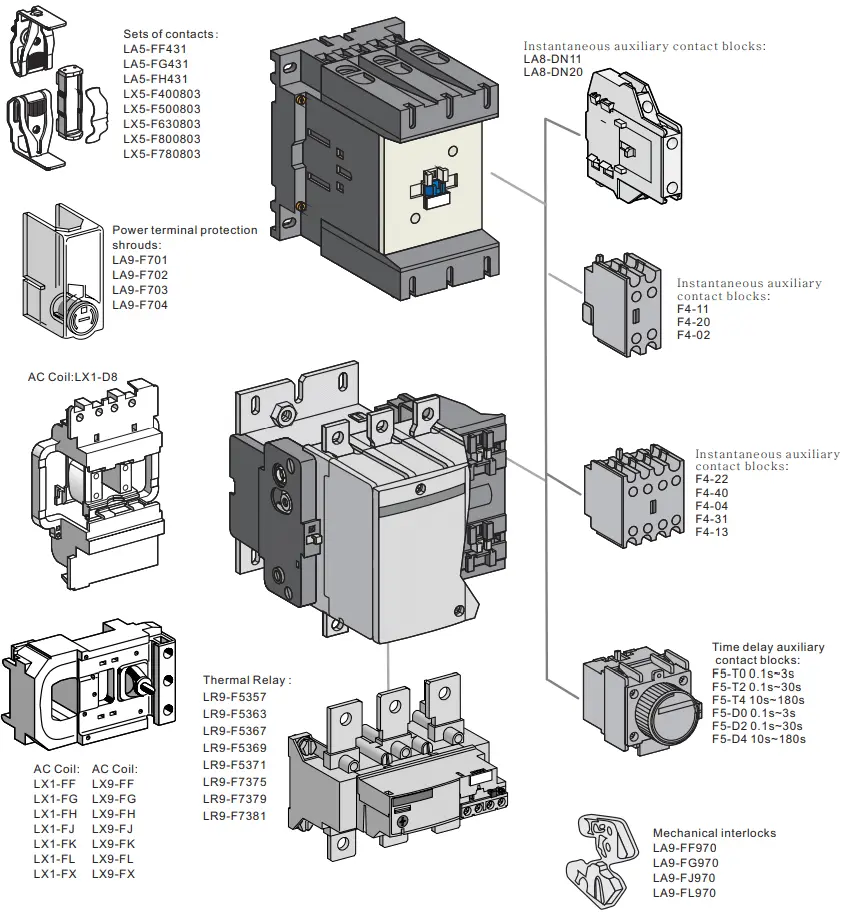

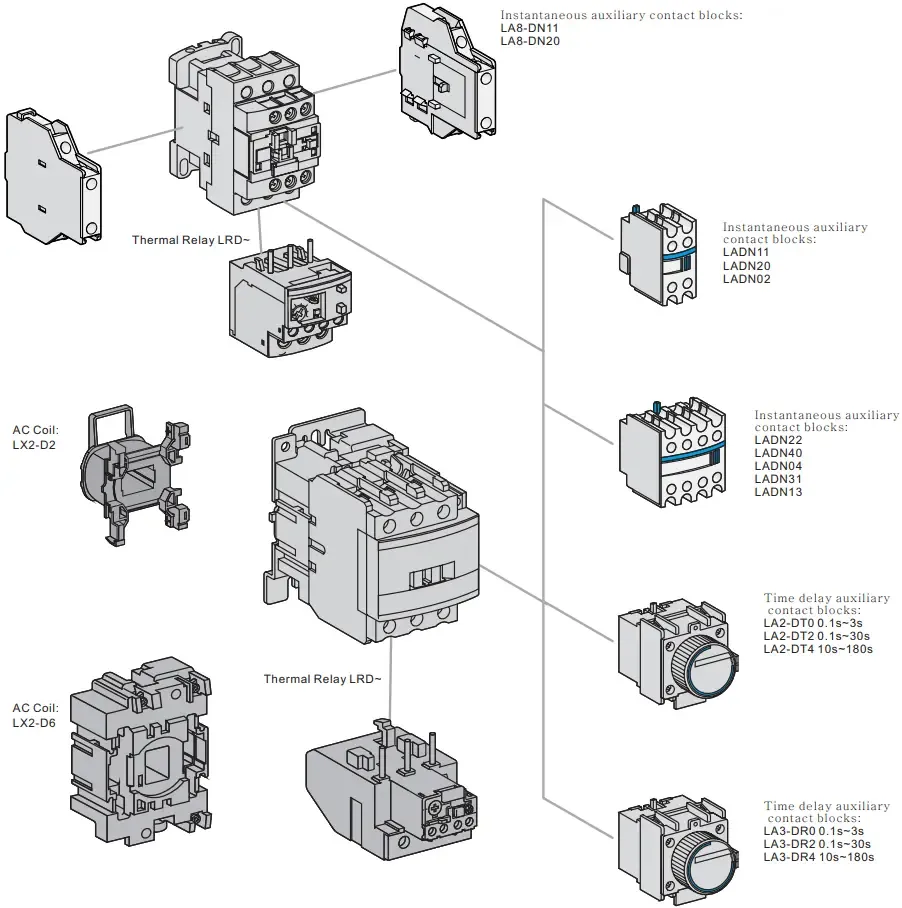

Agabka

D Contactor

Waa maxay sababta loo dooranayo CDADA D Contactor?

★ Waafaqsanaanta dhabta ah ee IEC

Naqshadeeyay oo lagu tijaabiyay IEC/EN 60947-4-1 - hubinta aqbalaada caalamiga ah iyo wada shaqaynta.

★ Xalka Xakamaynta Baabuurta oo Buuxa

Ku darso wareejinta kuleyliyaha CDADA ee buux-dhaafka ah ee shirarka bilowga ah - culeyska xad dhaafka ah + wareegga gaaban + go'doominta.

★ Dabacsanaanta Korantada ee ballaaran

Ka dooro 13 AC iyo 5 DC gariiradda danab-ku habboon mashaariicda caalamiga ah ama muraayadaha korantada ee isku dhafan.

★ Waajib culus oo u adag

Waxay taageertaa waajibaadka AC-4 (dib-u-noqosho/xirid soo noqnoqda)—oo ku habboon wiishashka, wiishashka, iyo gaadiidleyda.

★ Is-dhexgalka Plug-iyo-Play

Heerarka 1NO+1NC xidhiidhada kaalmaynta waxa ay sahlaysa isku xidhid fudud, calaamadayn, ama jawaab celin PLC.

★ Isku hallaynta Fasalka Warshadaha

Lagu tijaabiyay adkaysiga korantada oo sarreeya, iska caabbinta xidhiidhka hoose, iyo xakamaynta dhididka oo xasiloon — yaraynta wakhtiga hoos u dhaca.

★ Faa'iidooyinkayada muhiimka ah waa: 1) Shahaadooyin caalami ah oo dhammaystiran, 2) Awoodda OEM / ODM xooggan, 3) Qiimaha wax-qabadka sarreeya, 4) Awood wax-soo-saar ballaaran oo la isku halleyn karo, 5) khibrad dhoofinta oo ballaaran.

D Contactor

★ Alaabtayadu si guul leh ayaa loogu dhoofiyaa Koonfur-bari Aasiya, Bariga Dhexe, Koonfurta Ameerika, Afrika, Yurub, iyo wadamada CIS, iyada oo diiradda la saarayo suuqyada Belt iyo Road.

D Contactor

Codsiyada caadiga ah

D Contactor Matoorada Bilaabayaasha: Bambooyin, taageereyaal, kombaresarada, qasayaasha

D Contactor Nidaamyada HVAC: Qaboojiyaha & xakamaynta afuufiyaha

D Contactor Automation Warshadaha: Khadadka gudbinta, mashiinnada baakadaha

D Contactor Maareynta Dhismaha: Xakamaynta wiishka, bangiyada iftiinka

D Contactor Tamarta & Biyaha: Daaweynta biyaha wasakhda ah, hababka waraabka

Su'aalaha Inta Badan La Isweydiiyo

Q1: Waa maxay macnaha "D Contactor"?

A1: "D" waxaa loola jeedaa magacaabista taxanaha ah (LC1-D) ee caalami ahaan loo isticmaalo qalabkan xiriiriyaha AC ee caadiga ah. Ma aha kala-soocidda farsamo-laakiin si weyn ayaa looga aqoonsaday dhismaha guddida la jaanqaadkeeda agabka sida is-dhaafsiga xad-dhaafka ah iyo isku-xirnaanta farsamada.

Q2: Waa maxay faraqa u dhexeeya AC-3 iyo AC-4 waajibaadka?

A2:

● AC-3: Bilawga/joojinta caadiga ah ee matoorada qafiska Dabagaale (tusaale, bambooyin, marawaxadaha). Cadaadiska hoose.

● AC-4: Ku xidhid joogto ah, taako, ama rogaal celis ah (tusaale, wiishashka, kor u qaadida). Cadaadis koronto oo sarreeya → wuxuu u baahan yahay xiriiryo adag. → CDADA LC1-D waa lagu qiimeeyay labadaba, taasoo ka dhigaysa mid la taaban karo.

Q3: Ma isticmaali karaa xiriiriyahan iyada oo aan la hayn culeys xad dhaaf ah?

A3: Laguma talinayo culeyska matoorka. Xiriiriyaha kaliya ayaa dami awooda — kama ilaalinayo culeyska xad dhaafka ah. Had iyo jeer ku lamaanso kuleyl ama koronto gudbinta culeyska xad dhaafka ah ee badbaadada gawaarida.

Q4: Ma jiraan noocyo 4-tile ah?

A4: Haa! Dhammaan moodooyinka LC1-D waxay taageeraan isku xidhka 3P ama 4P-ku habboon codsiyada beddelka dhexdhexaadka ah ama nidaamyada 4-siliga.

Q5: Maxaad CDADA uga doorataa kuwa kale ee la xidhiidha taxanaha D?

A5: CDADA waxay bixisaa:

IEC 60947-4-1 u hoggaansanaanta warbixinnada imtixaanka

● Kala duwanaanshaha korantada gariiradda ballaaran (oo ay ku jiraan 415V, 480V, 600V ee dhoofinta)

● Tayo joogta ah oo leh xiriiryo daawaha qalinka ah iyo cawska qaansada

● Qiimaynta OEM-saaxiibtinimo iyo muunad si degdeg ah u soo jeedin

● Shahaadooyinka caalamiga ah (CE) iyo waraaqaha Ingiriisiga
