Hagahan waxa uu sharxayaa sida 6kA AC miniature circuit breaker u shaqeeyo, waxa qiimaynta 6kA dhab ahaantii ka dhigan tahay, sida B, C, iyo D qaloocayada safarka u saameeyaan waxqabadka, iyo sida loo doorto qaabaynta hadda iyo tiirka ku habboon. Waxa kale oo ay aqoonsataa khaladaadka wax iibsiga ee caadiga ah waxayna siisaa liis hubineed wax ku ool ah injineerada, qandaraaslayaasha, iyo iibsadayaasha qiimeeya xalalka MCB ee soosaarayaasha sidaHal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Shanghai DaDa Electric Co., Ltd.
Tusmada Tusmada
- Waa maxay 6kA AC Miniature Circuit Breaker?
- Maxay tahay sababta 6kA jebinta awoodda ay muhiim u tahay?
- Sidee buu u yareeyaa AC-yaraha wareegga wareegga?
- Halbeegyada Farsamo ee ay tahay inay iibsadayaashu hubiyaan?
- Sidee B, C, iyo D Curfyada Safarku u saameeyaan doorashada?
- Halkee 6kA AC yar-yar ee jebiyeyaasha sida caadiga ah loo isticmaalo?
- Dhibaatooyinkee MCB-da Saxda ahi Ka Hortagi Karaa?
- Sidee Iibsadayaasha u dooran karaan MCB 6kA ku habboon?
- Khaladaadka Xulashada Caadiga ah ee Laga Fogaado
- Maxay tahay sababta loola shaqeeyo soo saaraha MCB ee khibradda leh?
- Su'aalaha Inta Badan La Isweydiiyo
- La xiriir Hal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Shanghai DaDa Electric Co., Ltd.

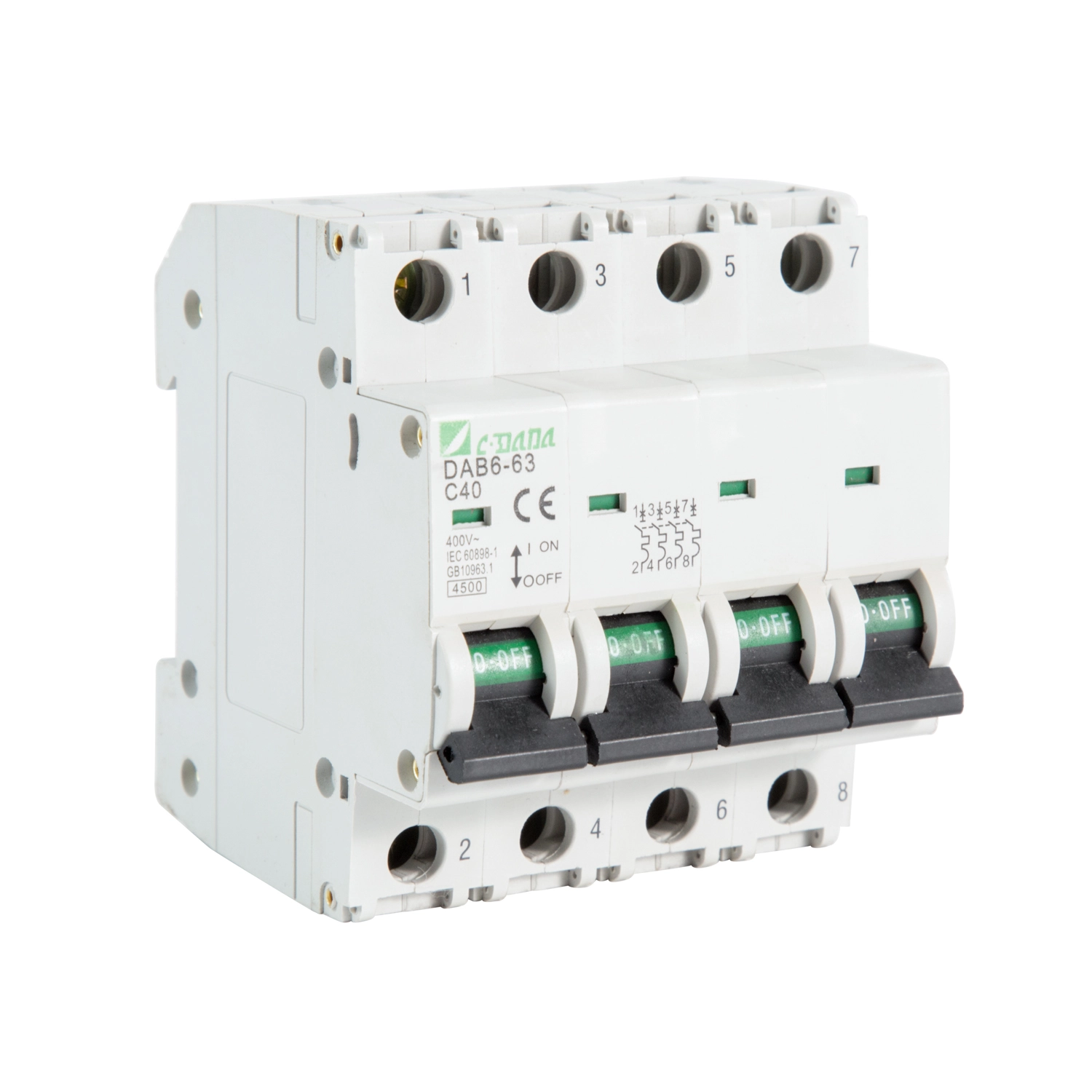

Waa maxay 6kA AC Miniature Circuit Breaker?
Xakamaynta wareegga yar, oo caadi ahaan loo yaqaan MCB, waa qalab beddelaad ilaalin ah oo loogu talagalay in si toos ah loo gooyo wareegga korantada marka xaalado aan caadi ahayn ay dhacaan. Si ka duwan fiyuuska dhaqameed, MCB caadiyan dib ayaa loo dajin karaa ka dib markii cilladda la nadiifiyo, taasoo ka dhigaysa mid ku habboon hawlgalka iyo dayactirka soo noqnoqda.
Erayga6kArefers to the breaker's rated short-circuit breaking capacity under the applicable test conditions. Erayada fudud, 6kA MCB waxaa loogu talagalay in uu si badbaado leh u joojiyo socodka gaaban ee socda ilaa 6,000 amperes marka shuruudaha la cayimay la buuxiyo.
Alaabooyinka u hoggaansamaya IEC/EN 60898-1 waxay si caadi ah u qeexaan cabbirrada sida hadda la qiimeeyay, danab la qiimeeyay, soo noqnoqoshada, awoodda jabinta, iyo sifooyinka degdegga ah. Heerarka ganacsiga ee MCB waxa laga yaabaa inay bixiyaan 6kA qiimayno kala duwan oo hadda jira iyo qaabaynta tiirka.
6kA ma aha hadda hawlgalka caadiga ah ee jabiyaha. 16A MCB, tusaale ahaan, waxaa loogu talagalay in lagu qaado hadda lagu qiimeeyay shuruudo la cayimay, halka jaantuska 6kA uu qeexayo awooddeeda kala goynta wareegga gaaban. Labadan tilmaamood ayaa ka jawaabaya su'aalaha injineernimada gebi ahaanba kala duwan.
Maxay tahay sababta 6kA jebinta awoodda ay muhiim u tahay?
Wareegyada gaaban waxay soo saari karaan qulqulo aad u sarreeya muddo aad u gaaban gudaheed. Haddii aaladda ilaalintu aysan si badbaado leh u joojin karin ciladda hadda jirta ee meesha lagu rakibo, cawaaqibta waxaa ka mid noqon kara dhaawac daran oo taabasho ah, kulaylka xad dhaafka ah, cilladda qalabka, ama daloolin koronto oo khatar ah.
Sidaa darteed, awoodda jebinta waa in aan la dooran oo keliya sababtoo ah 6kA waa qeexid caadi ahaan la heli karo. Xilliga hadda socda ee gaaban ee goobta rakibaadda waa in la qiimeeyaa, jabiyaha la doortayna waa inuu lahaadaa awood ku filan oo hakad u ah nidaamkaas.
| Halbeegga | Maxaa looga jeedaa | Maxaa Sabab U Ah |
|---|---|---|
| 6kA | Lagu qiimeeyay awooda jabinta wareega-gaaban | Wuxuu go'aamiyaa in jabiyuhu si badbaado leh u joojin karo heerka cilada- hadda la cayimay |
| Hadda Lagu Qiimeeyay | Qiimaynta caadiga ah ee hadda ee MCB | Waa in uu isku xidhaa awoodda kaari iyo culayska la filayo |
| Korontada la qiimeeyay (Ue) | Danab shaqaynaya ee codsiga | Waa in uu la jaanqaadaa nidaamka korontada |
| Curve Safarka | Qeexayaa kala goynta birlabeedka degdega ah | Waxay ka caawisaa ka-hortagga qaska iyadoo la ilaalinayo ilaalinta khaladka |
| Tirada Tiirarka | Tirada kirishbooyada la damiyay/ilaartay | Waa in uu u dhigmaa qaabeynta wareegga |
Tilmaamaha soo saaraha ayaa muujinaya in 6kA MCBs ay diyaar u yihiin qiimeyno kala duwan oo hadda jira iyo qaabeynta korantada, oo ay ku jiraan nidaamyada qaybinta 230V iyo 400V AC ee caadiga ah.
Sidee buu u yareeyaa AC-yaraha wareegga wareegga?
MCB-ga caadiga ah wuxuu isku daraa hababka ilaalinta kulaylka iyo magnetka. Labadan hawlood ayaa wax ka qabta dhibaatooyinka koronto ee kala duwan.
- Ilaalinta kulaylka:Culayska xad dhaafka ah ee joogtada ahi waxa uu kululeeyaa curiyaha bimetallic. Marka heerkulku gaadho heerka shaqada, farsamadu way sii daysaa oo furtaa wareegga.
- Ilaalinta magnetka:Xilliga wareegga gaaban ee sarreeya wuxuu abuuraa saameyn xoog leh oo birlab ah oo dhaqaajisa habka safarka degdegga ah, si degdeg ah u gooya wareegga.
- Beddelka gacanta:MCB sida caadiga ah gacanta ayaa lagu beddeli karaa go'doominta wareegga inta lagu jiro dayactirka ama shaqada rakibidda.
Isku-dhafkan ayaa ka dhigaya MCB mid ku habboon wareegyada halkaasoo labadaba culeyska muddada dheer iyo cilladaha wareegga gaaban ee degdega ah loo baahan yahay in wax laga qabto. Badeecada casriga ah ee MCB waxay caadi ahaan isku daraysaa kuleyl iyo birlab waxayna bixin karaan sifooyin B, C, ama D iyadoo ku xiran culeyska loogu talagalay.
Halbeegyada Farsamo ee ay tahay inay iibsadayaashu hubiyaan?
Iibsadayaashu waxay inta badan diiradda saaraan qiimeynta hadda iyo qiimaha iyagoo iska indhatiraya cabbirrada kale. Si loo helo qeexid mashruuc oo la isku halayn karo, sifooyinka soo socda waa in si wadajir ah loo hubiyaa.
| Tilmaamid | Tixgelinta Caadiga ah | Isbaarada iibsada |
|---|---|---|
| Jebinta Awoodda | 6kA | Xaqiiji inay ku filan tahay cilladda hadda jirta |
| Lagu qiimeeyay Hadda | Codsigu wuxuu ku xiran yahay | Isku-dubbarid la leh culeyska iyo awoodda kirishbooyada |
| Voltage lagu qiimeeyay | Voltage qaybinta AC Common | Isku dhig tamarta nidaamka |
| Soo noqnoqoshada | 50/60Hz inta badan la cayimay | Xaqiiji ku waafaqid shabkada deegaanka |
| Sifada Safarka | B/C/D | Ku dhig qalooca si aad ugu shubto sifooyin degdeg ah |
| Habaynta Cirifka | 1P, 1P+N, 2P, 3P, 4P iyada oo ku xidhan badeecada | Is waafaji habka fiilooyinka |
| Koritaanka | tareenada DIN waa wax caadi ah | Xaqiiji waafaqid guddiga qaybinta |
| Heerarka | IEC/EN 60898-1 ama heer kale oo lagu dabaqi karo | Codso dukumeenti farsamo iyo shahaado marka loo baahdo |
Dukumeentiyada badeecada ee soosaarayaasha la aasaasay waxay si caadi ah u siiyaan halbeegyadan halkii ay ula dhaqmi lahaayeen awoodda jebinta si gaar ah.
Sidee B, C, iyo D Curfyada Safarku u saameeyaan doorashada?
Qalooca safarka waa mid ka mid ah go'aamada ugu muhiimsan marka la qeexayo MCB. Warqaddu waxay qeexaysaa qiyaasta qiyaasta ah ee siidaynta degdega ah ee magnetic u shaqaynayso marka loo eego hadda la qiimeeyay jabiyaha.
| Qallooca | Xaddiga Safarka Birlabka Caadiga ah | Codsiga caadiga ah |
|---|---|---|
| B | 3–5 × gudaha | Culayska qulqulka hooseeya, iftiinka, wareegyada iska caabinta |
| C | 5–10 × gudaha | Culaysyada guud-ujeedada iyo dhexdhexaadka ah |
| D | 10–20 × gudaha | Culaysyada degdega ah ee sarreeya sida matoorada qaarkood iyo transformers |
Kala duwanaanshahan waxaa badanaa lala xiriiriyaa sifooyinka IEC 60898-1 MCB.
Tusaale ahaan, haddii matoorku uu soo saaro ku-meel-gaar ah bilawga dhawr jeer oo ka sarreeya kan caadiga ah ee hadda shaqeeya, qalooca xasaasiga ah ayaa laga yaabaa inuu si aan loo baahnayn u dhaqaaqo inta lagu jiro bilowga. Qalabka C-curve ama D-curve ayaa laga yaabaa inuu ku habboon yahay, iyadoo ku xiran qalabka iyo naqshadeynta wareegga oo dhammaystiran.
Halkee 6kA AC yar-yar ee jebiyeyaasha sida caadiga ah loo isticmaalo?
Xakamaynta wareegga yar ee 6kA AC waxay ku habboonaan kartaa codsiyo badan oo korantada yar marka heerka qaladka dhabta ah, korantada, hadda, iyo shuruudaha rakibaadda ay ku dhacaan sifooyinka qalabka.
- Qaybinta deegaanka:wareegyada iftiinka, wareegyada godka, qalabka guriga, iyo wareegyada laanta.
- Dhismayaasha ganacsiga:looxyada qaybinta xafiisyada, nidaamyada nalka, xarumaha tafaariiqda, iyo wareegyada qalabka yar yar.
- Xakamaynta warshadaha:wareegyada kaalmeeya, qalabka xakamaynta, matoorada yaryar, iyo kuwa kale oo ku haboon culayska korantada yar.
- Adeegyada dhismaha:Wareegyada caawiyaha ah ee laxidhiidha HVAC, bambooyin, laydh, iyo qaybinta awooda guud halka tilmaamuhu ku haboon yihiin.
- Armaajooyinka qaybinta korantada:ilaalinta laanta-wareega iyo hababka qaybinta modular.
Codsiga dhabta ah waa in had iyo jeer lagu xaqiijiyaa ka soo horjeeda dukumeentiyada alaabta soo saaraha iyo shuruudaha rakibida. Qiimaynta 6kA waa in aan marnaba loo qaadan in ay ku haboon tahay deegaan kasta oo koronto.
Dhibaatooyinkee MCB-da Saxda ahi Ka Hortagi Karaa?
Mid ka mid ah walaacyada wax iibsiga ee ugu weyn maahan si fudud in jabiyaha uu shaqeeyo, laakiin haddii uu si joogto ah ugu shaqeeyo shuruudaha lagu doortay.
1. Culayska joogtada ah
Wareegga sidda qulqulka xad-dhaafka ah muddo aad u dheer wuxuu sababi karaa kuleyliyaha kirishbooyada iyo qalabka oo dhicisoobay oo xumaada. Siideynta kulaylka waxaa loogu talagalay inay ka jawaabto xaaladaha culeyska xad dhaafka ah ee joogtada ah.
2. Burbur-gaaban
Awoodda jabinta ku habboon waxay u oggolaanaysaa MCB inuu joojiyo cilada xad-dhaafka ah ee hadda jirta iyada oo aan ka badnayn awoodda goynta ee la cayimay.
3. Rabshadaha
Qalooca safarka ee aan ku haboonayn wuxuu keeni karaa kala go'o aan loo baahnayn marka qalabku bilaabo. Ku-habboonida astaamaha B, C, ama D ee culeyska waxay caawinaysaa wax ka qabashada dhibaatadan.
4. Dayactirka adag
MCB-ga qaabaysan waxa uu bixin karaa go'doon ku habboon gacanta, ka caawinta koronto-yaqaannada in ay aqoonsadaan oo ay ka shaqeeyaan wareegyada shaqsiga ah iyada oo aan qasab ahayn in la xiro dhammaan nidaamka qaybinta.
5. Hubsiimo la'aanta wax iibsiga
Mashruucyada B2B, qeexitaannada farsamo ee aan dhamaystirnayn waxay u horseedi karaan badeecooyin khaldan, oggolaanshaha daahista, ama kharashka beddelka. Xaashida xogta badeecada oo cad iyo cabbiro farsamo oo qeexan waxay yareeyaan khatarahaas.
Sidee Iibsadayaasha u dooran karaan MCB 6kA ku habboon?
Habka xulashada dhabta ah waxaa loo qaybin karaa dhowr tillaabo. Tani waxay ka caawisaa injineerada iyo kooxaha wax iibsanaya inay iska ilaaliyaan inay doortaan badeecada cinwaanka buugaag.
-
Go'aami tamarta nidaamka.
Xaqiiji tamarta AC ee magaca ah iyo in codsigu yahay hal-waji ama saddex waji. -
Xisaabi ama xaqiiji naqshadaynta hadda.
Hadda la qiimeeyay ee MCB waa in lagu xidhaa culayska wareegga la filayo iyo hadda la oggol yahay ee kaariyaha. -
Go'aanso wakhtiga wareega gaaban ee mustaqbalka.
Hubi cilada hadda jirta ee meesha rakibaadda oo xaqiiji in awoodda jebinta 6kA ee la doortay ay ku filan tahay. -
Qiimee qulqulka culeyska.
Aqoonso in wareeggu ka kooban yahay matoor, Transformers, qalab awood leh, beddelaadda sahayda korontada, ama culaysyo kale oo soo saara xawliga bilowga ah ee muhiimka ah. -
Dooro qalooca safarka ku habboon.
Dooro B, C, ama D iyadoo lagu saleynayo culeyska dhabta ah iyo shuruudaha ilaalinta halkii aad si fudud u dooran lahayd ikhtiyaarka ugu caansan. -
Dooro qaabeynta tiirka.
Xaqiiji in mashruucu u baahan yahay 1P, 1P+N, 2P, 3P, 3P+N, ama qaabayn kale oo ay taageerto taxanaha alaabta. -
Xaqiiji heerarka iyo dukumentiyada.
Codso xaashida xogta ee lagu dabaqi karo, macluumaadka tijaabada, shahaadooyinka, sawirada cabbirka, iyo tilmaamaha rakibida. -
Hubi in guddiga waafaqsan yahay.
Xaqiiji cabbirka DIN-tareenka, habaynta terminalka, kala duwanaanshaha kirishbooyada, agabka, iyo booska rakibaadda ee la heli karo.
- □ Danab la qiimeeyay ayaa la xaqiijiyay
- □ Hadda la qiimeeyay waa la xaqiijiyay
- □ 6kA awoodda jebinta waa la xaqiijiyay
- □ Qallooca B/C/D ee lagu doortay si waafaqsan rarka
- □ Qaabeynta tiirka waa la xaqiijiyay
- □ Heerka lagu dabaqi karo waa la xaqiijiyay
- □ Cabbirrada iyo kor-u-qaadista tareenada DIN waa la hubiyay
- □ shahaado iyo dukumeenti imtixaan la codsaday
- □ Deegaanka shaqada dib loo eegay
- □ Isku-dubbarididda ilaalinta korka/hoose ee la tixgeliyey
Khaladaadka Xulashada Caadiga ah ee Laga Fogaado
Xitaa marka qeexitaannada aasaasiga ahi u muuqdaan kuwo sax ah, khaladaad dhowr ah ayaa abuuri kara dhibaatooyin ka dib marka la rakibo.
| Qalad | Dhibaato iman karta | Dhaqanka Wanaagsan |
|---|---|---|
| Doorashada kaliya ee amperage | Halbeegyada kale ee muhiimka ah lagama yaabo inay iswaafaqaan | Si wada jir ah u qiimee danab, qalooca, awoodda jebinta, tiirarka, iyo halbeegyada |
| Iyadoo loo maleynayo in 6kA kasta oo jabiya uu yahay mid la beddeli karo | Alaabooyin kala duwan ayaa laga yaabaa inay leeyihiin cabbiro kala duwan iyo qeexitaanno waxqabad | Is barbar dhig xaashida xogta oo dhammaystiran |
| Isticmaalka qalooca safarka khaldan | Qalalaasaha dhibka ama ku habboonaanta codsiga | Qiimee qulqulka dhabta ah |
| Iska indha tiraya cilada hadda jirta | Awood jebintu waxay noqon kartaa mid aan ku filnayn | Xaqiiji heerka cilladda barta rakibidda |
| Isku-dubbaridka kormeeraha oo il-duufay | Ilaalintu waxa laga yaabaa inaanay si sax ah u waafaqin nidaamka fiilooyinka | Isku-dubbarid qiimeynta MCB oo leh awoodda kaari |
| Iibsashada dukumeenti la'aan | Ansixinta iyo rakibidda waxay noqon kartaa mid adag | Codso dukumeenti farsamo iyo u hoggaansanaan ka hor intaadan iibsan |
Isku-dubbaridka saxda ah ee u dhexeeya hadda la qiimeeyay, awoodda kaari, dabeecadda safarka, iyo heerka cilladdu waxay udub dhexaad u tahay xulashada MCB ee la isku halayn karo.
Maxay tahay sababta loola shaqeeyo soo saaraha MCB ee khibradda leh?
Soo iibsiga mugga weyn, mashaariicda OEM, iskaashiga qaybinta, iyo soo saaridda guddi koronto, tayada alaabta waa hal tixgelin kaliya. Iibsadayaashu waxa kale oo ay u baahan yihiin tilmaamo joogto ah, wax soo saar deggan, xidhiidh farsamo oo ka jawaabaya, iyo dukumeenti taageeraya ansixinta mashruuca.
Hal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Shanghai DaDa Electric Co., Ltd.waxaa loo tixgelin karaa shuraako wax soo saar oo loogu talagalay macaamiisha raadinaya xalal yar oo wareeg ah iyo alaabooyinka ilaalinta korantada ee hooseeya ee la xidhiidha. Iibsadayaasha B2B, qiimaynta alaab-qeybiyaha ugu faa'iidada badan waa in ay diiradda saaraan macluumaadka farsamada la cabbiri karo halkii ay ka ahaan lahaayeen sheegashooyinka suuqgeyneed oo keliya.
- Nadiifi qeexitaannada alaabta iyo cabbirrada farsamada
- Qeexitaanka hadda la qiimeeyay iyo kala duwanaanta danabka
- Ikhtiyaarada awooda jabinta ee la heli karo
- Macluumaadka safarka-curve ee xaaladaha culeyska kala duwan
- Sawirada alaabta iyo macluumaadka rakibaadda
- shahaado la dabaqi karo iyo dukumeenti u hogaansanaan
- Nidaamyada wax-soo-saarka iyo xakamaynta tayada deggan
- Isgaarsiinta farsamada ee shuruudaha mashruuca gaarka ah
- Taageerada OEM/ODM halka ay khuseyso
Soo-dejiyaasha iyo qaybiyeyaasha korontada, arrimahan ayaa si gaar ah muhiim u ah marka alaabada loo baahan yahay in lagu daro habab qaybin kala duwan ama lagu iibiyo suuqyo badan.
Su'aalaha Inta Badan La Isweydiiyo
6kA waxa loola jeedaa awooda jabinta wareega-gaaban ee lagu qiimeeyay shuruudaha tijaabada ee lagu dabaqi karo. Waxay ka dhigan tahay 6,000 amperes oo waa in aan lagu khaldin heerka caadiga ah ee MCB.
Maya. Ku habboonaanta waxay ku xiran tahay mustaqbalka gaaban ee hadda jira, korantada nidaamka, hadda la qiimeeyay, dabeecadda safarka, qaabeynta tiirka, shuruudaha rakibida, iyo xeerarka lagu dabaqi karo. The available fault current should be checked before selecting the breaker.
Labada lambar ayaa qeexaya cabbirro kala duwan. 6kA waa qiime jabinta awoodda, halka 6A ay tahay qiime la qiimeeyay- hadda. Jebiye waxa laga yaabaa in uu haysto 6A oo hadda lagu qiimeeyay iyo 6kA oo jabin ah.
Waxay aqoonsadaan sifooyin kala duwan oo degdeg ah oo magnetic. Marka loo eego IEC 60898-1, B guud ahaan waxay la xiriirtaa qiyaastii 3-5 jeer oo hadda lagu qiimeeyay, C oo leh qiyaastii 5-10 jeer, iyo D oo leh ku dhawaad 10-20 jeer.
Matoorada waxay yeelan karaan hadda bilow la taaban karo, markaa sifooyinka C ama D ayaa laga yaabaa inay ku habboon yihiin iyadoo ku xiran matoorka iyo wareegga. Xulashada kama dambaysta ahi waa inay tixgelisaa bilawga hadda, hadda cilladaysan, xannibaadda fiilada, iyo isku-dubbaridka aaladaha kale ee ilaalinta.
Si toos ah uma aha. Haddii wakhtiga wareega gaaban ee la filayo uu ka sarreeyo jabiyaha awoodiisa lagu qiimeeyay, qalabka 6kA waxa laga yaabaa in aanu ku haboonayn. Jebinta waa in lagu doortaa iyadoo loo eegayo heerka qaladka iyo shuruudaha rakibida ee lagu dabaqi karo.
Iibsadayaashu waa inay caadi ahaan codsadaan xaashi xog tifaftiran, tilmaamo farsamo, sawiro cabbir ah, hab-raacyada rakibida, dukumeentiyada imtixaanka ama shahaadaynta khuseeya, iyo heerarka badeecada khuseeya. Project-specific requirements may require additional documentation.
Joogteynta u dhexeeya qaybaha wax soo saarka, raadinta, dukumentiyada farsamada, xakamaynta tayada, awoodda bixinta, iyo taageerada farsamada iibka kadib waxay si weyn u saameyn kartaa wadarta qiimaha iyo isku halaynta mashruuca korontada ee B2B.
Dhis Xalka Ilaalinta Wareega ee la isku halleyn karo
Doorashada a6kA AC Miniature circuit Breakershould begin with the electrical conditions of the application rather than the product label alone. Hadda la qiimeeyay, awoodda jabinta, qalooca safarka, korantada, qaabeynta tiirarka, deegaanka rakibaadda, iyo dukumeentiyada farsamada dhamaantood waxay gacan ka geystaan xallinta ilaalinta la isku halleyn karo.
Haddii aad u soo raadinayso MCB-yada mashaariicda qaybinta korantada, kontaroolada, dhismayaasha ganacsiga, codsiyada deegaanka, ama qaybinta jumlada,Hal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Hal qayb oo ka mid ah Shanghai DaDa Electric Co., Ltd.waxay kaa caawin kartaa inaad qiimeyso sifooyinka alaabta ku habboon iyadoo loo eegayo shuruudaha mashruucaaga.
Ma u baahan tahay tilmaamo farsamo, macluumaadka alaabta, ama taageerada mashruuca iibka badan?Nala soo xidhiidhsi aad ugala hadasho codsigaaga oo aad u hesho xal wareeg yar oo ku haboon.
