Hagaha Waxqabadka ee Jabiyayaasha Wareega ee Hadhaaga ah oo leh Ilaalin hadda ka badan

Waa maxay RCBO?

AnRCBO- Xakamaynta wareegga hadda jirta ee leh ilaalinta hadda ka badan - waa qalab ilaalin yar oo korantada ah oo isku darka ilaalinta culeyska, ilaalinta wareegga gaaban iyo ogaanshaha hadda (daadiska) hadda jira ee hal unug oo qaabaysan. Guryaha is haysta gudihiisa, habka safarka kuleyl-magnetic wuxuu qabtaa culeysyada xad dhaafka ah iyo wareegyada gaaban, halka koronto-bixiye eber ah oo hadda socda uu si joogto ah u barbar dhigo socodka hadda socda ee kirishbooyada tooska ah iyo kuwa dhexdhexaadka ah. Marka faraqa u dhaafo hadhaaga la qiimeeyay (IΔn), qalabku wuxuu ku socdaa millise seconds, isagoo jaraya sahayda ka hor inta aanay daadadku dadka wax yeelin ama keenin dab.

Goorta la dooranayo RCBO: wareeg-hoosaadyada ugu dambeeya ee u baahan labadaba ilaalinta hadda iyo ilaalinta daadinta shakhsi ahaaneed - weelasha dibadda, wareegyada qalabka, garaashyada, qolalka hoose, musqulaha iyo qoyaanka kale ama meelaha si fudud loo heli karo.

DABL-63 waxaa iska leh fasalka RCBO: hal qalab, saddex ilaalin - doorashada ugu bannaan iyo kharashka ugu badan ee wareegyada ugu dambeeya ee qoyska ee hal waji ah.

Sidee loo doortaa RCBO saxda ah?

1. Hadda la qiimeeyay (In): waafaqid culayska joogtada ah ee wareegga, oo leh qolka hore ee qulqulka qalabka (tusaale 40A waxay dabooshaa wareegyada qalabka guriga ee caadiga ah).

2. Awoodda jebinta (Icn): waa in ay ka sarraysaa wakhtiga wareegga gaaban ee la filayo marka la rakibo; 6kA waxay dabooshaa guryaha caadiga ah iyo heerarka cilladaha ganacsiga fudud.

3. Tiirarka: 1P + N loogu talagalay wareegyada ugu dambeeya ee hal-waji ah oo leh dhejinta DIN-tareenka.

4. Sifada Socodka: C-curve (5-10× In) ee culayska guud ee guriga iyo qalabka; B-curve ee qalabka elektiroonigga ah ee xasaasiga ah; D-curve ee bilawga mootada.

5. Heerarka iyo shahaado: IEC/EN 61009-1 u hoggaansanaanta iyo calaamadaynta CE waa saldhigga mashaariicda caalamiga ah.

6. Codsiga: weelasha bannaanka, wareegyada qalabka iyo garaash/nalalka dhulka hoostiisa waxa laga yaabaa inay u baahdaan dareen sare marka loo eego wareegyada gudaha ee guud.

Sida uu u eg yahay RCBO si wanaagsan loo cayimay

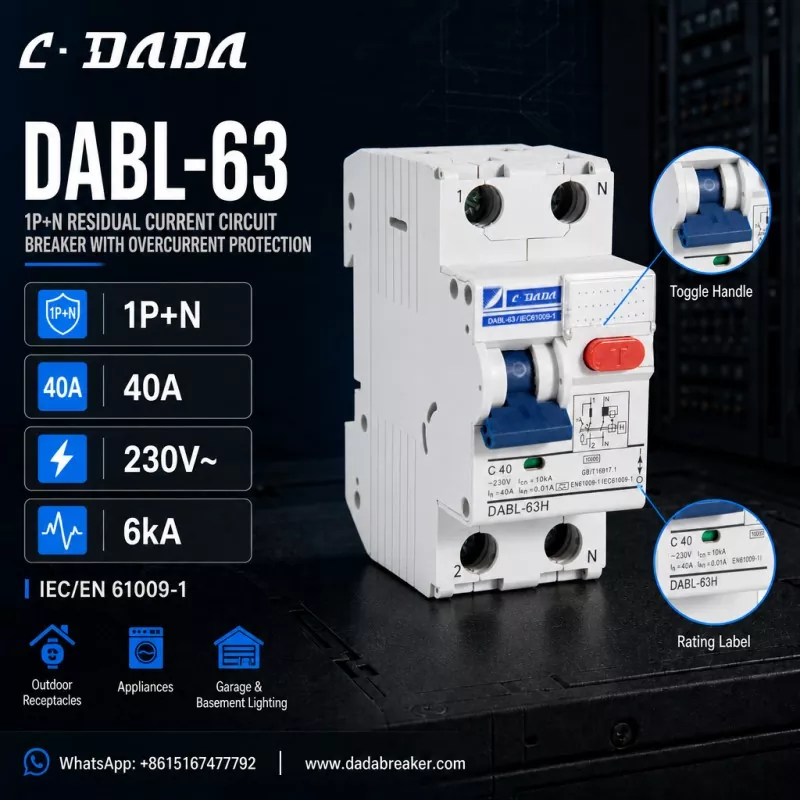

Si loo sameeyo tan la taaban karo, tixgeli DABL-63 kaDADA Electric, 1P+N hadhaaga wareegga hadda jira oo leh ilaalin hadda ka badan oo sharraxaysa waxa laga raadinayo fasalkan aaladda: 1P+N qaabaynta

● Tiirka tooska ah oo damay oo dhexdhexaad ah ayaa la raacay, is haysta ee loox qaybinta DIN-tareenka caadiga ah 40A hadda lagu qiimeeyay (In)

● Iyadoo C-curve tripping (C40) 230V~ danab lagu qiimeeyay

6kA jebinta awoodda (Icn)

● IΔn = 0.01A (10mA) ilaalinta hadda jirta ee xasaasiga ah

IEC/EN 61009-1 waafaqsanaanta

● Badhanka T-ga cas ee hubinta shaqada xilliyeedka, terminal ku calaamadsan 1/2/N, calaamadda qiimeynta iyo jaantuska wareegga oo ku daabacan guriga

● Loo dhisay weelasha bannaanka, qalabka guriga, garaash iyo nalka dhulka hoostiisa

Caqliga ka dambeeya qeexitaankan

40A, 1P + N oo leh 10mA ilaalinta xasaasiga sare ee ilaalinta ayaa daboolaysa inta badan wareegyada ugu dambeeya ee deegaanka: 40A waxay la mid tahay culeyska qalabka caadiga ah iyo wareegyada godadka, 1P + N waxay ku ilaalisaa qalabka qalabaysan ee looxyada qaybinta, iyo 10mA dareenka waxay bixisaa lakab dheeraad ah oo ilaalin shakhsi ah, waxay u baahan tahay meel ka baxsan IEC.

FAQ

S: Waa maxay RCBO?

J: RCBO - jebinta wareegga hadda jirta ee leh ilaalinta hadda - waa dib-u-dejinta miis-ka-hortagga korantada hoose ee isku-darka ilaalinta culeyska, ilaalinta wareegga-gaaban iyo ilaalinta hadda (dhaqashada) ee hadda jirta ee hal cutub, sida caadiga ah ilaa 63A wareegyada ugu dambeeya.

S: Waa maxay faraqa u dhexeeya RCBO iyo MCB?

J: MCB waxa ay bixisaa culays xad dhaaf ah iyo ilaalin gaaban oo gaaban. RCBO-du waxay ku darsataa ogaanshaha hadda (dhaqashada) ee hadhaaga ah ee korka, iyada oo ka jaraysa wareegga marka qulqulka qulqulaya uu dhaafo IΔn - ilaalinta dadka iyo ka hortagga dabka korontada.

S: Waa maxay macnaha IΔn = 10mA?

J: IΔn waa inta hadda shaqaynaysa ee la qiimeeyay. 10mA waa qiimeynta dareenka sare: qalabku wuu safraa marka qulqulka hadda uu gaaro 10mA, isagoo siinaya ilaalin shaqsiyeed ka dhakhso badan 30mA qiimeynta ujeedada guud.

S: Waa maxay DABL-63 RCBO?

A: DABL-63 waa 1P + N hadhaagii wareegga hadda jira oo leh ilaalin ka badan DADA Electric - 40A, C-curve, 230V ~, 6kA jabinta awoodda iyo 10mA ilaalinta dheecaanka xasaasiga ah, u hoggaansan IEC/EN 61009-1, weelasha dibadda iyo alaabta guriga.
