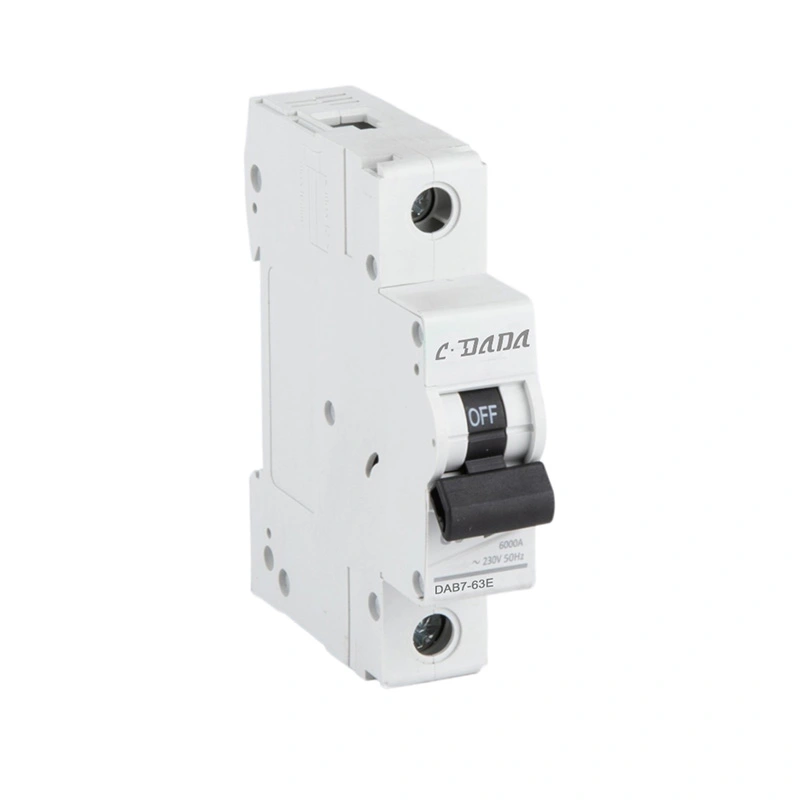

1P 6kA AC Miniature circuit Breaker
Model:CDADA Series AC MCB
Dareen xor u ah inaad la xiriirto CDADA, oo hel 1P 6kA AC Miniature Circuit Breaker oo leh qiime toos ah warshad, oo bixisa culeys xad dhaaf ah oo la isku halleyn karo iyo ilaalin gaaban oo gaaban oo leh nashqada DIN-tareen is haysta. Alaabtani waxay ka kooban tahay kuleyl-magnetic-ku-dhac sax ah iyo tilmaam xaalad cad, fududahay in la rakibo lana ilaaliyo. Waxay bixisaa waxqabad deggan oo loogu talagalay wareegyada ganacsiga deegaanka iyo iftiinka, hubinta bixinta koronto badbaado leh oo leh nolol adeeg dheer.
CDADA 1P 6kA AC Miniature Circuit Breaker waa mid tayo sare leh hal tiir yar oo wareeg ah oo loogu talagalay nidaamyada korantada yar ee AC. Waxay bixisaa difaac la isku halayn karo oo ka dhan ah culeysyada xad dhaafka ah iyo wareegyada gaaban, iyadoo si wax ku ool ah u ilaalinaysa wareegyada korantada iyo qalabka ku xiran. Lagu soo saaray heerar caalami ah oo adag, AC MCB waxay ku habboon tahay qaybiyeyaasha, OEM-yada iyo qandaraaslayaasha korantada ee raadinaya xalal ilaalin waara, kharash-ool ah.
Tilmaamaha Alaabta & Faa'iidooyinka
★ Nakhshad is haysta: Qaab-dhismeedka meel-badbaadinta oo ku habboon looxyada qaybinta caadiga ah
Awood Jebinta Sare: 6kA awoodda joojinta wareegga gaaban ee badbaadada la xoojiyey
Safarka Saxda ah: Cutubka safarka kul-magnetic-ku waxay hubisaa culays xad-dhaaf ah oo sax ah & ilaalinta wareegga gaaban
Tilmaanta Heerka: Daaqadda damisan ee muuqata si loo xaqiijiyo heerka wareegga degdegga ah
★ Xadhkaha Sugan: Terminal tayo sare leh oo leh xidhiidh deggan, yaraynta caabbinta xidhiidhka
★ Dhisme waara: Guryo ololaya oo leh iska caabin heerkul sare ah
★ Rakibaadda Fudud: Heerka 35mm DIN-tareen Buurta loogu talagalay kulan degdeg ah
★ Tayada la isku halayn karo: 100% kormeer buuxa ka hor inta aan la dhoofin, waxqabad joogto ah
Codsiyada
CDADA 1P 6kA AC Miniature Circuit Breaker ayaa si weyn loogu isticmaalaa:
★ Dhismayaal la deggan yahay, aqalo iyo fillo
★ Dhismayaasha xafiisyada, xarumaha ganacsiga iyo goobaha ganacsiga
★ Aqoon-is-weydaarsiyo warshadeed oo fudud iyo warshado wax-soo-saar
★ Xarumaha wax iibsiga, huteelada iyo makhaayadaha
★ dhismayaasha guud iyo mashaariicda kaabayaasha
★ Wareegyada iftiinka iyo ilaalinta qalabka korontada yar
Qiyaasaha Farsamada
|
Shayga |
Tilmaamid |
|
Qaabka |
CDADA Taxanaha AC MCB |
|
Heerka |
IEC60898 |
|
Nooca |
AC MCB (Jabinta Wareega yar) |
|

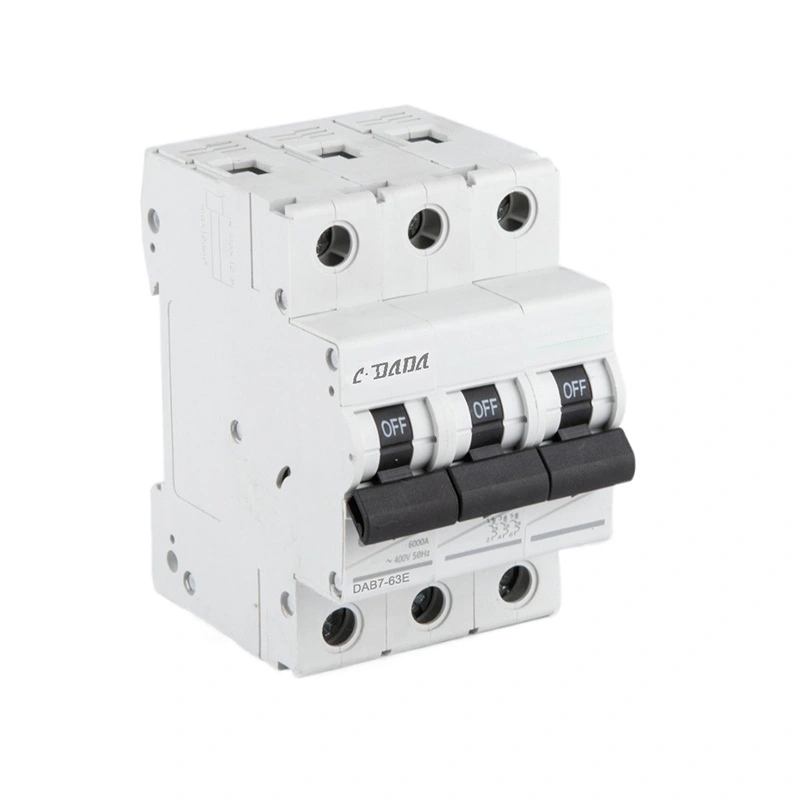

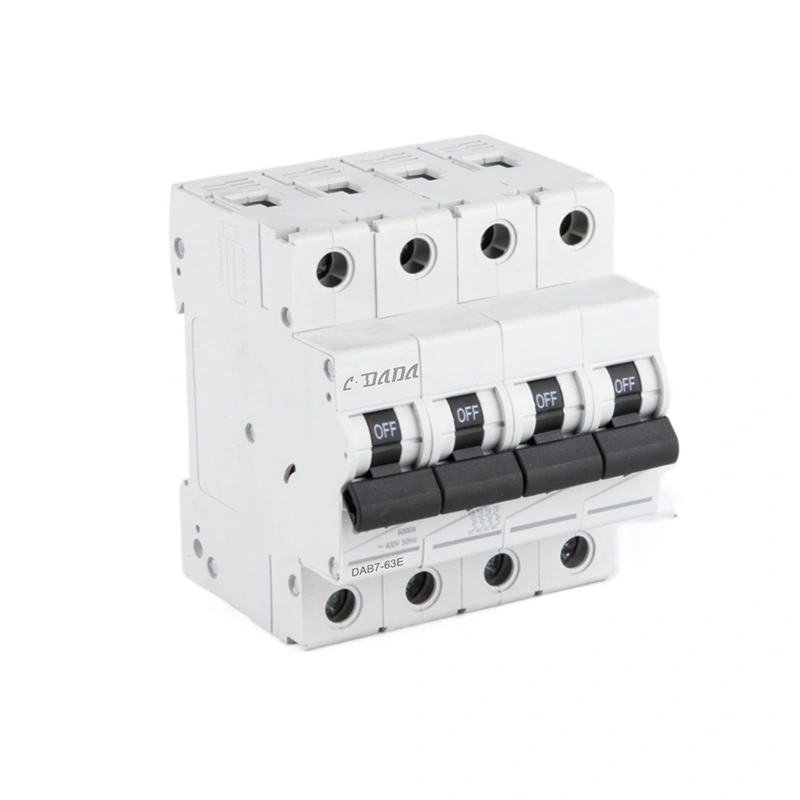

Tiirarka |
1P,2P,3P,4P |
|
Jebinta Awoodda |
6kA |
|
Lagu qiimeeyay Hadda |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Qallooca |
B, C, D (ikhtiyaar) |
|
Voltage lagu qiimeeyay |
AC 230V, 400V |
|
Korontada dahaarka |
600V |
|
Qulqulka Voltage |
6kV |
|
Degree ilaalinta |
IP20 |
|
Rakibaadda |
35mm DIN Tareenka |
|
Heerkulka shaqada |
-5 ℃ ~ +40 ℃ |
|
Nolosha Makaanikada |
≥20,000 hawlgal |
|
Nolosha Korontada |
≥4,000 hawlgal (oo hadda la qiimeeyay) |
|
U Hogaansanaanta Heerarka |
IEC60898-1, IEC60898-2 |
Qeexidda Cabbirrada
★ Ballaca: 17.8mm tiirkiiba (xajmiga hal cidhif ah)
★ Dhererka: Qiyaastii 85-92mm (waxay ku kala duwan tahay qiimaynta hadda)
★ Qoto dheer: Qiyaastii 68-72mm
Awoodda Xadhkaha: 1.5-16mm² fiilo dabacsan ama adag
Waafaqsanaanta caadiga ah: Ku habboon dhammaan nidaamyada tareenada ee 35mm DIN (TS35/7.5, TS35/15)
IEC 60898-1

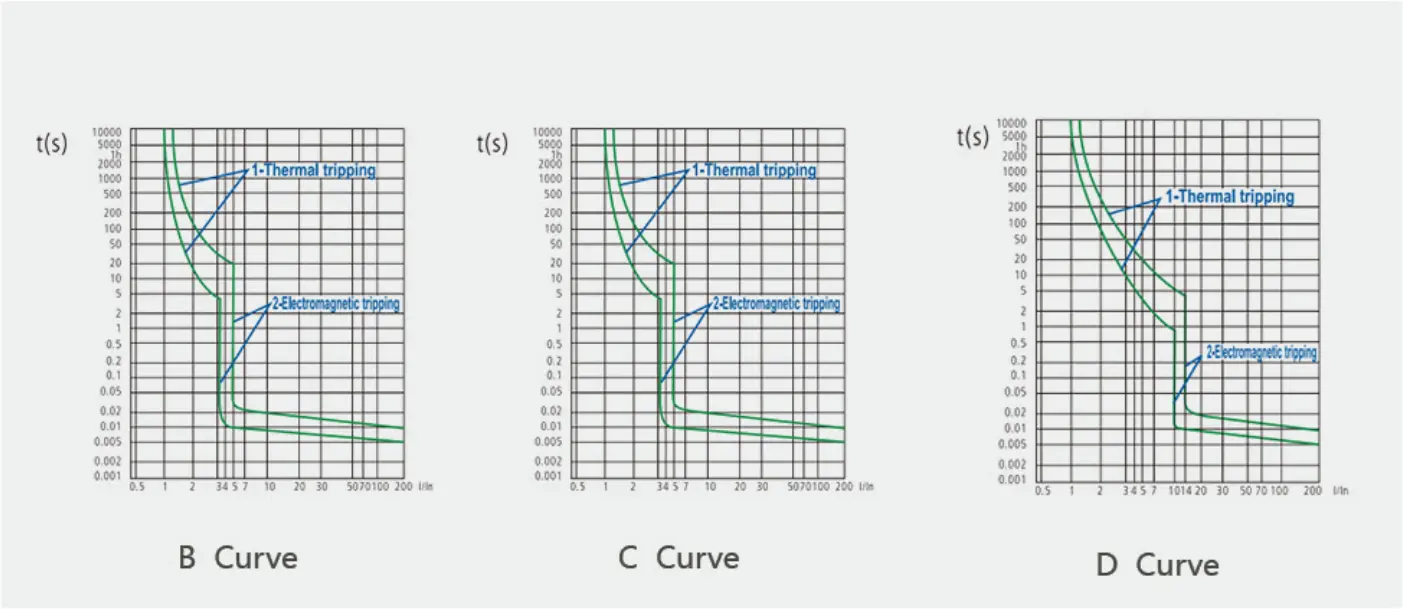

Siidaynta Magnetka
Marka wareegga gaaban ee wareegga uu dhaco, degdegga degdega ah waxaa lagu gaaraa magnet leh xudunta birta. Marka loo eego heerka 1EC60898, alaabtan waxaa loo qaybin karaa saddex nooc: B, C, iyo D.
|
|
Tijaabi hadda |
Waqtiga safarka |
Codsiyada |
|
B Curve |
3ln 5ln |
0.1 |
Nooca B waxa kaliya oo lagu dabaqi karaa culaysyada firfircoon: -Kuleyliyaha korantada-Kuleyliyaha biyaha - Foornada korontada |
|
C Curve |
5In 10ln |
0.1 |
Nooca C wuxuu ku habboon yahay rarka caadiga ah: -Laambad -Bakeda tamarta -Matoorka tamarta yar |
|
D Qalooca |
10ln 20In |
0.1 |
Ku xakamee oo ilaali wareegyada iyadoo la adeegsanayo qulqulka degdega ah (matoorada waaweyn) |
Siidaynta kulaylka
●Marka culeyska xad dhaafka ah uu ku yimaado wareegga, xariiqda bimetallic ee qalabka wareegga ayaa laalaabsan doona kulayl awgeed, taasoo keenaysa in xiriirada ay go'aan oo ay keenaan kulaylka;
●Heerka IEC wuxuu qeexayaa kala duwanaanshaha wakhtiga safarka ee qulqulka culayska badan ee kala duwan;
●Heerkulka deegaanka tijaabada tixraacu waa 30 °C.
|
Tijaabi hadda |
Waqtiga safarka |
|
1.13ln |
t z 1h (gudaha ≦ 63A) |
|
1.45 ln |
t <1saac (guda ≦ 63A) |
|
2.55ln |
1s<1s<60s(In≤32A)1s |

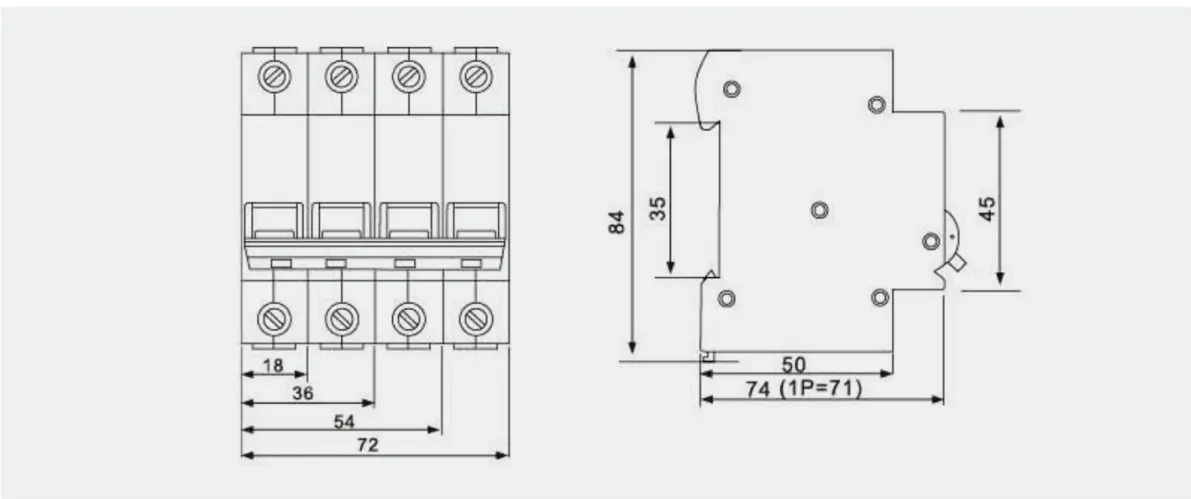

●Qalabka badeecada iyo rakibaadda (MM)
Alaabta waxaa lagu rakibay biraha hagaha oo leh awoodda ugu badan ee isku xirka 25mm2.
Xakamaynta tayada
★ ISO9001 Wax Soo Saarka Shahaadaysan: Nidaamka maaraynta tayada adag ee wax soo saarka oo dhan
★ Tijaabooyin Dhameystiran: 100% kormeer oo ay ku jiraan sifooyin jaban, kor u kaca heerkulka iyo tijaabooyinka tamarta
★ Wax-soo-saarka Gudaha: 90% qaybaha muhiimka ah ee gudaha lagu soo saaray tayada tayada
★ Tijaabada Deegaanka: Hawlgalka heerkulka sare/hoose, xaqiijinta iska caabinta huurka
Hubinta Kalsoonida: Tijaabada adkeysiga muddada-dheer ee nolosha adeega dheer
Baakadaha & Rarista
Baakadaha Dhoofinta caadiga ah: kartoonnada jiingadaha leh ee ilaalinta
★ Calaamaynta cad: Nambarka moodeelka, qiimaynta hadda, tirinta tiirka, tirada iyo macluumaadka caddaynta
Xirmooyinka Ilaalinta: sanduuqa kooxda ee 12 unug si looga hortago burburka inta lagu jiro safarka
★ Ikhtiyaarada rarka: Ku haboon gaadiidka badda, hawada iyo dhulka; diyaar u ah shixnad badan
Xirmooyinka Gaarka ah: Xulashada baakadaha OEM ee ay heli karaan la-hawlgalayaasha astaanta
Kiisaska Guusha Macmiilka
CDADA 1P 6kA AC Miniature Circuit Breaker waxa ay wada shaqayn wakhti dheer ah la samaysay macaamiisha aduunka oo dhan:
★ Mashaariicda Deganaanshaha: Waxaa la siiya horumarinta guryeynta Koonfur-bari Aasiya, Bariga Dhexe iyo Koonfurta Ameerika
★ Rakibaadaha Ganacsiga: Waxa ay iskaashi la sameeyeen qandaraaslayaasha korontada ee Yurub, Afrika iyo Aasiya mashaariicda dhismaha ganacsiga
★ Iskaashiga OEM: La kaashaday noocyada korantada caalamiga ah ee calaamadaynta gaarka ah iyo xalalka la habeeyey
Codsiyada Warshadaha: Waxaa la siiyaa tas-hiilaadka wax soo saarka ee ilaalinta mashiinada iyo qalabka
Shabakadda Qaybiyaha: La shaqaynta qaybiyeyaasha gobolka ee in ka badan 30 waddan si ay ula kulmaan suuqa maxalliga ah
