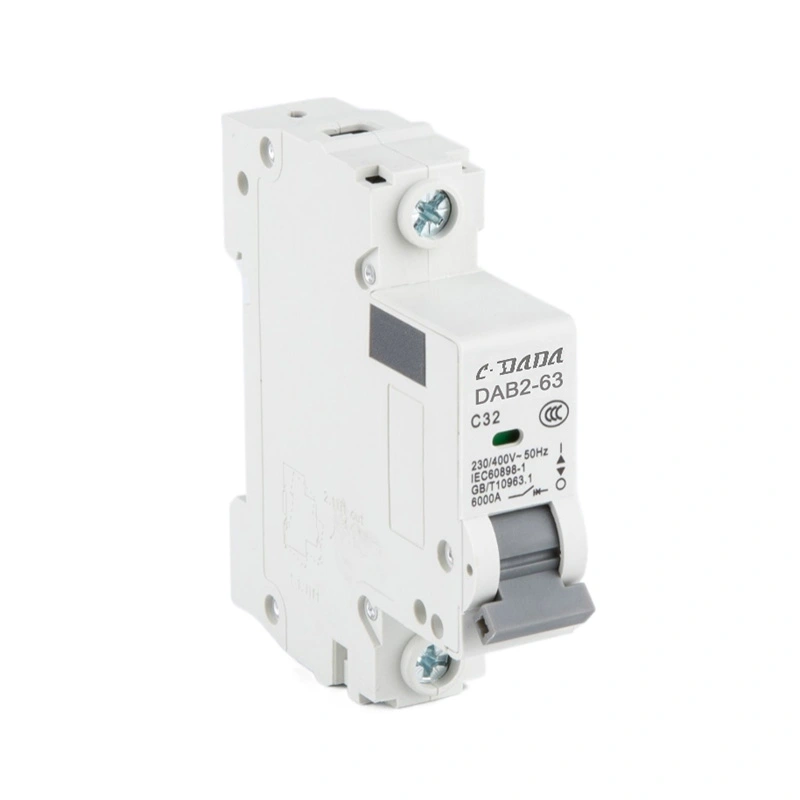

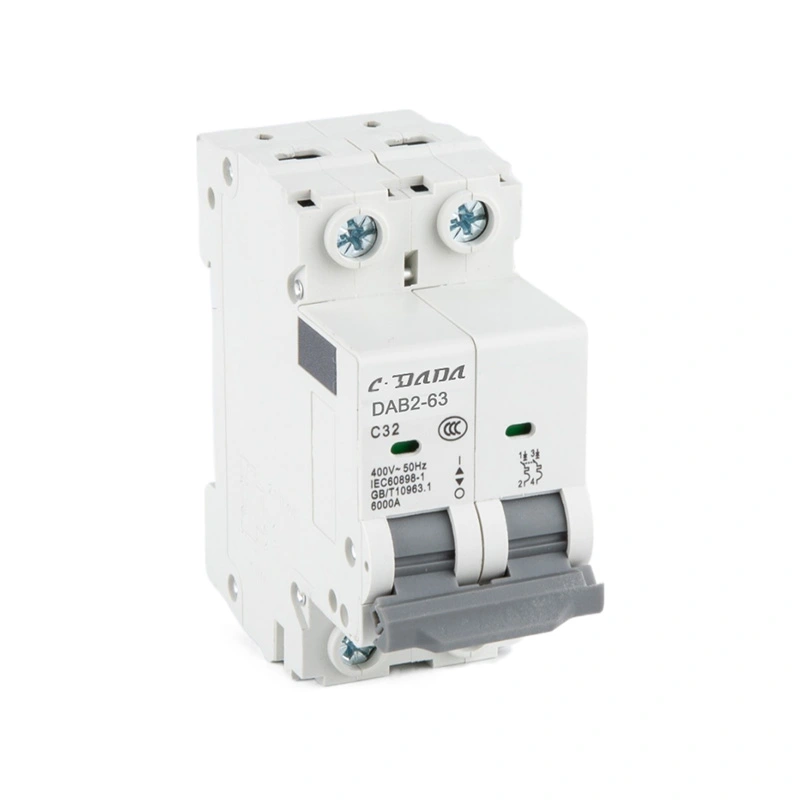

3 Waji jabiye MCB
Model:DAB2-63
Dooro CDADA inay noqoto soo saaraha iyo alaab-qeybiyahaaga, oo hel 3 Waji-jabiyaha MCB, CE CB CCC oo leh 6kA jabinta awoodda qaybinta tamarta warshadaha iyo ganacsiga. Alaabtani waxay isticmaashaa qolof ololka celisa iyo kuleyl-magneeteedka saxda ah, way fududahay in lagu dhejiyo tareenka DIN waana fududahay in la ilaaliyo. Waxay isku daraysaa waxqabadka xasilloon oo leh nolol farsamo iyo koronto oo dheer, hubinta ilaalinta wareegga badbaadada ee nidaamyada korantada ee saddexda weji.

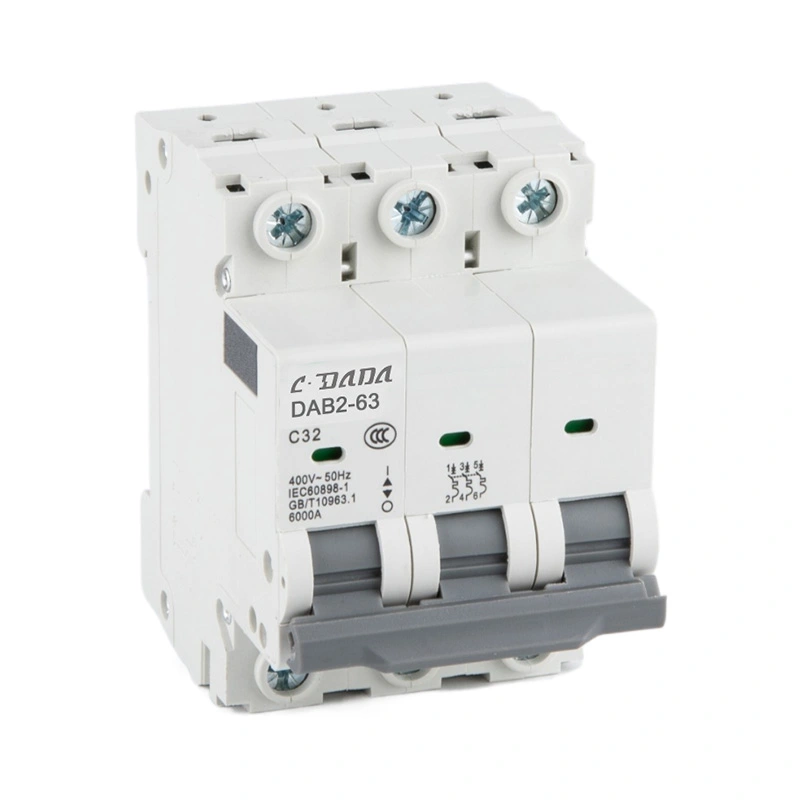

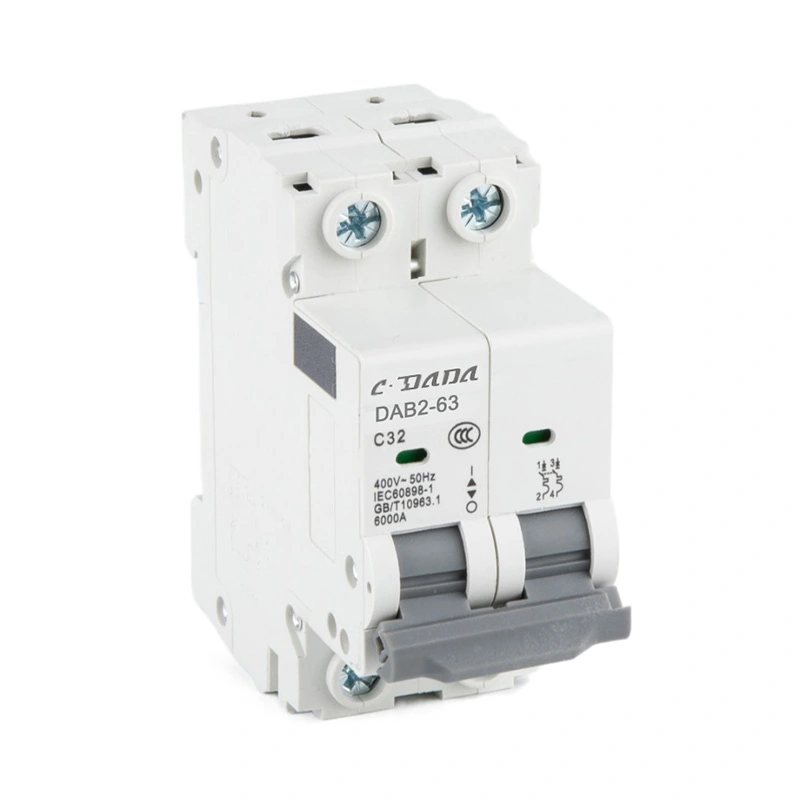

CDADA DAB2-63 3 Wajiga MCB Breaker waa jebiye wareeg yar oo tayo sare leh oo loogu talagalay nidaamyada qaybinta tamarta AC ee saddex-waji ah. Waxay bixisaa culeys buuxa iyo ilaalin wareeg-gaaban, oo leh B/C/D qalooca si ay ugu dhigmaan culeysyo kala duwan.
Lagu dhisay walxo ololka celinaya iyo qaybo sax ah, 3-weji MCB ayaa si weyn loogu isticmaalaa looxyada qaybinta, qalabka warshadaha, iyo dhismaha nidaamyada korantada.
Faa'iidooyinka Muhiimka ah
★ Naqshad is haysta oo 3-waji ah, oo ku habboon sanduuqyada qaybinta caadiga ah
★ 6kA awoodda jabinta sare ee ilaalinta wareegga gaaban ee la isku halayn karo
★ Daaqadda tilmaanta muuqaalka: gaduudan ON/Cagaar dami si loo helo xaalad cad
★ Qabasho balaadhan oo loogu talagalay hawlgal xasiloon iyo xidhiidh sugan
• Xakamaynta terminaalka oo la jeexjeexay si loo yareeyo kulaylka loona hagaajiyo xasilloonida fiilooyinka
DIN clip-ka tareen ee labajibbaaran ee xidhidhiyaha si degdeg ah, rakibid adag
★ qolof ololka celisa, iska caabin heerkul sare ah
★ 100% tijaabada warshada buuxda ka hor inta aan la rarin
Codsiyada
CDADA 3 Wajiga MCB Breaker si weyn ayaa loogu isticmaalaa:
★ Guryaha qaybinta guryaha, ganacsiga iyo dhismaha dadweynaha
★ Aqoon-is-weydaarsiyo warshadeed, warshado, iyo qalab koronto oo yaryar
★ marawaxadaha, kombaresarada, bambooyin, mishiinada kor u qaadida
★ Nidaamyada iftiiminta, saldhigyada korontada, iyo wareegyada mootada saddex-waji ah
★ Kaabayaasha, korantada, iyo mashaariicda golaha korantada
Qiyaasaha Farsamada
|
Shayga |
Tilmaamid |
|
Qaabka |

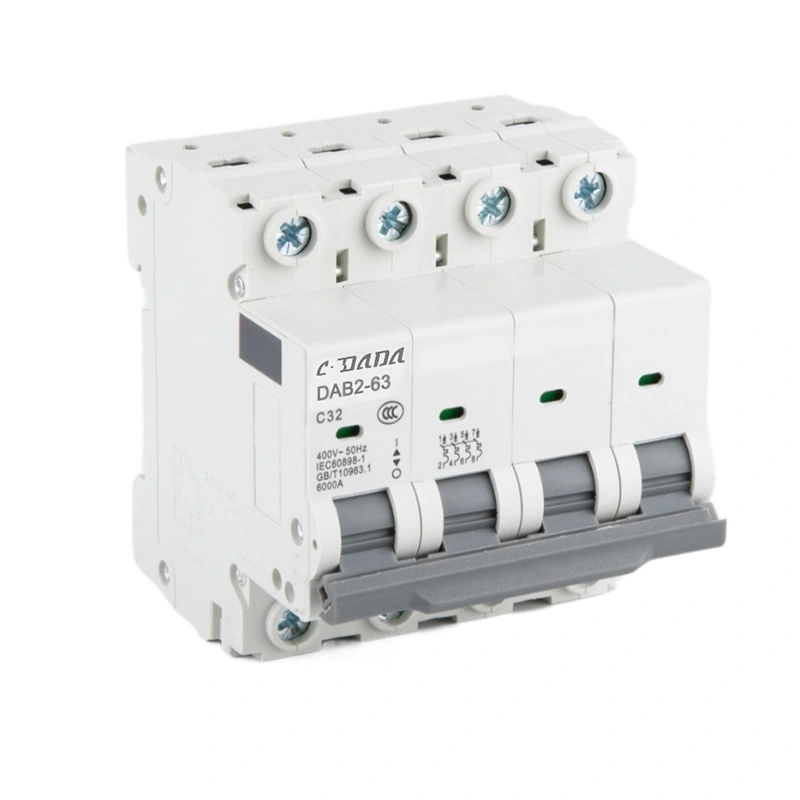

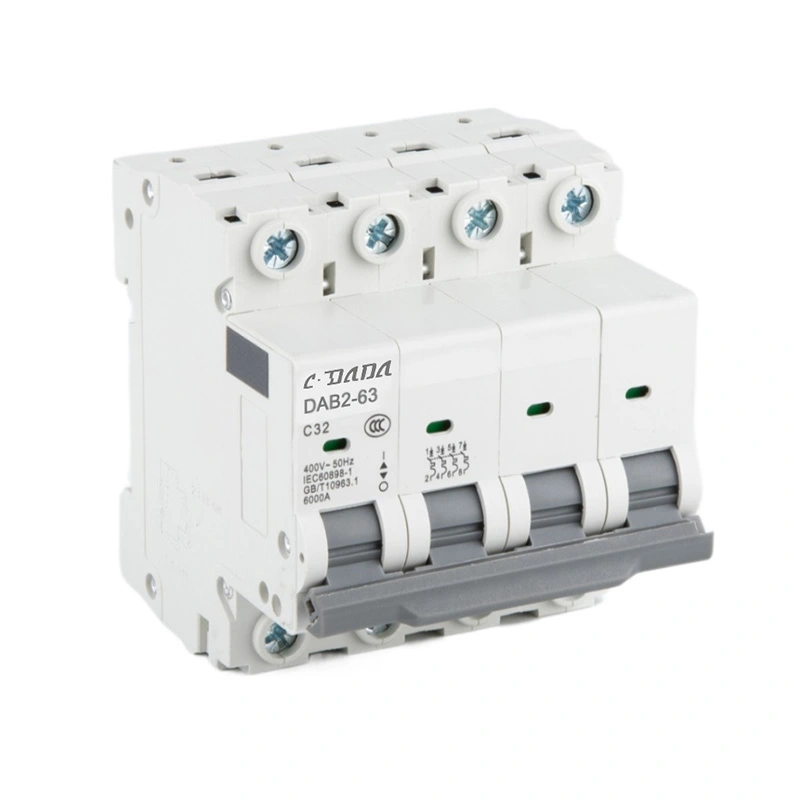

DAB2-63 1P/1P+N/2P/3P/3P+N/4P |
|
Heerka |
IEC60898-1, GB10963.1 |
|
Shahaadooyinka |
CE, CB, CCC, ASTA |
|
Jebinta Awoodda |
4.5kA, 6kA |
|
Lagu qiimeeyay Hadda |
1A, 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
|
Qallooca |
B(3-5in), C (5-10in), D (10-20in) |
|
Voltage lagu qiimeeyay |
400/415V AC |
|
Korontada dahaarka |
500V AC |
|
Qulqulka Voltage |
4kV |
|
Degree ilaalinta |
IP20 |
|
Rakibaadda |
35mm DIN tareemada |
|
Nolosha Makaanikada |
20,000 wareeg |
|
Nolosha Korontada |
10,000 wareeg |
|
Heerka Ololka |
UL94 V0 |
|
Heer kulka jawiga |
-25 ℃ ~ +45 ℃ |
|
Xaddiga Xadhkaha |
0.75-35mm² adag / xayiran |
Qeexidda Cabbirrada
★ Ballaca caadiga ah: 17.8mm tiirkiiba
★ 3P ballac ahaan: 53.4mm
★ Koritaanka: 35mm tareenka DIN (boos kasta)
Wareegga xadhkaha goostay: 3.5N·m
★ Qaab-dhismeedka is haysta ee armaajooyinka korantada ee caadiga ah
Xakamaynta tayada
★ Nidaamka maaraynta tayada ISO9001
★ 90% qaybaha asaasiga ah ee laga soo saaro guriga
Heerka 100%: 1.13 Socdaal la'aan, 1.45 Safarka
Tijaabada jabka magnetic (5In / 10In ee C-curve)
★ Tijaabada dulqaadka heerkulka sare iyo kan hoose
★ Xaqiijinta nolosha gabowga iyo farsamada
Baakadaha & Rarista
Kartoon dhoofinta caadiga ah oo leh dahaar aan naxdin lahayn
★ Summada cad: moodeel, tiirarka, hadda, tirada, shahaadooyinka
★ baakadaha kooxda si aad uga fogaato xagashada iyo dhaawaca
★ Ku habboon gaadiidka badda, hawada, iyo dhulka
★ Taageer baakadaha OEM iyo calaamadaynta gaarka ah
Kiisaska Guusha Macmiilka
★ CDADA 3 Wajiga MCB Breaker waxa ay wada shaqayn wakhti dheer ah la leedahay macaamiisha caalamiga ah:
★ Mashaariicda dhismaha guryaha & ganacsiga ee Yurub, Koonfur-bari Aasiya, Bariga Dhexe
★ Qaybinta tamarta warshadeed ee Afrika, Koonfurta Ameerika, Aasiya
★ OEM & ODM shuraakada la leh noocyada korontada ee caalamiga ah
★ Sahayda bulk ee muddada-dheer ee qaybiyeyaasha caalamiga ah & qandaraaslayaasha
Si balaadhan loogu isticmaalo xadhkaha korantada, kaabayaasha, iyo isku xidhayaasha nidaamka korantada
