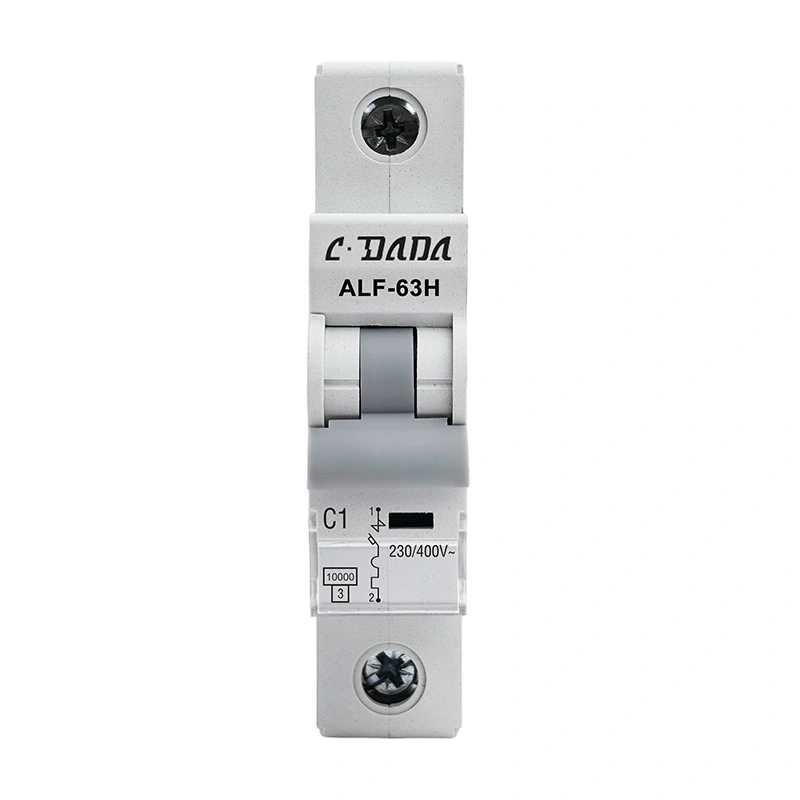

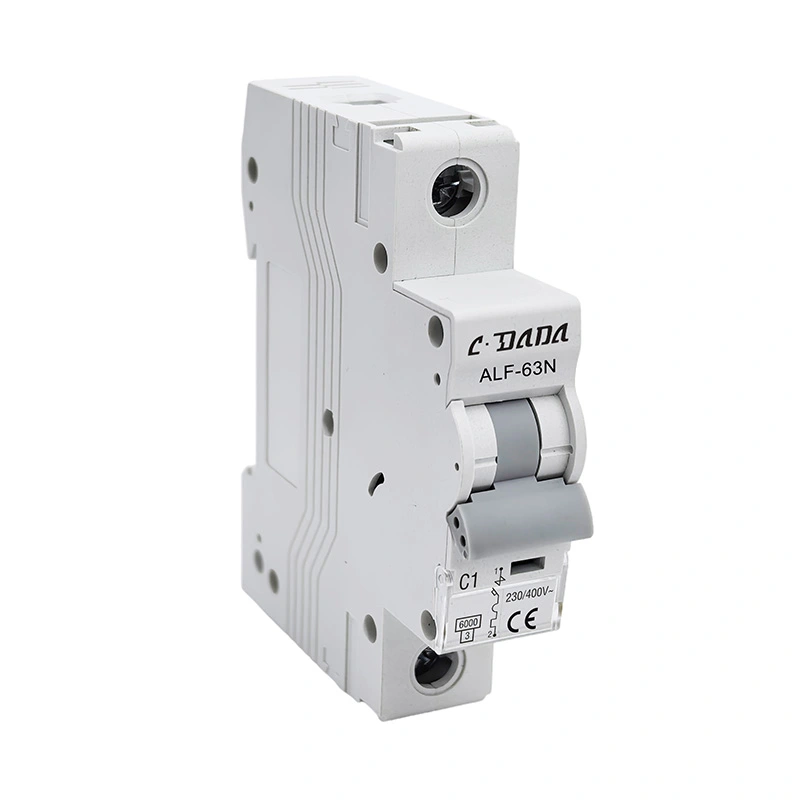

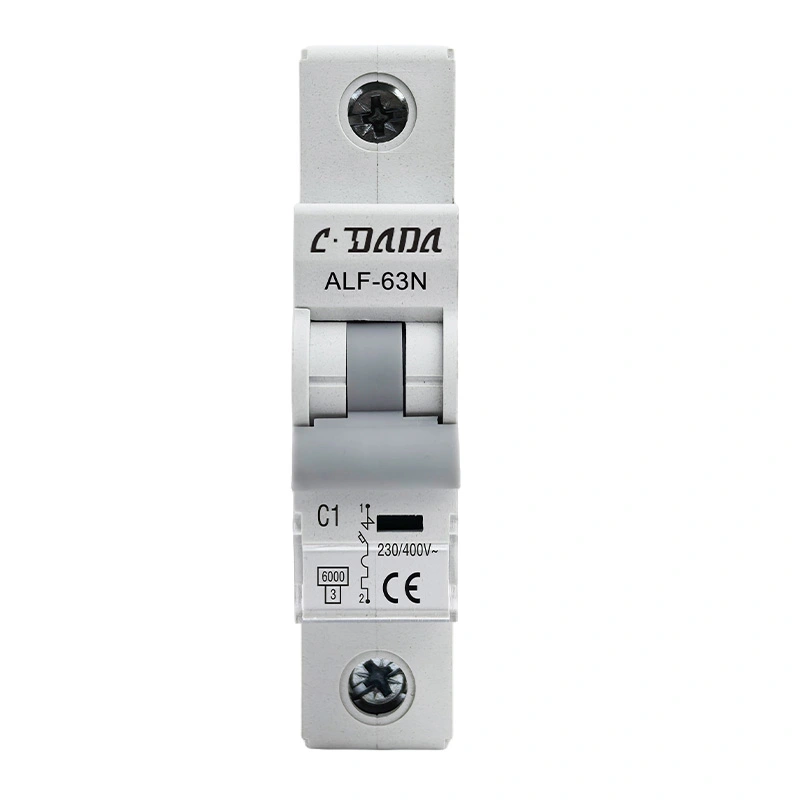

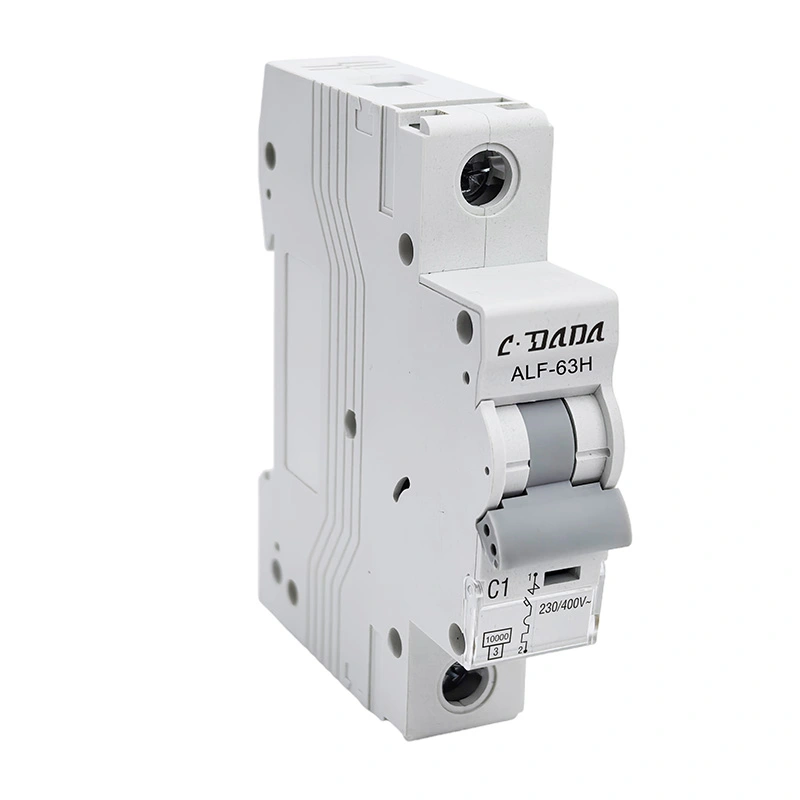

6KA 10kA Wareegga Yare

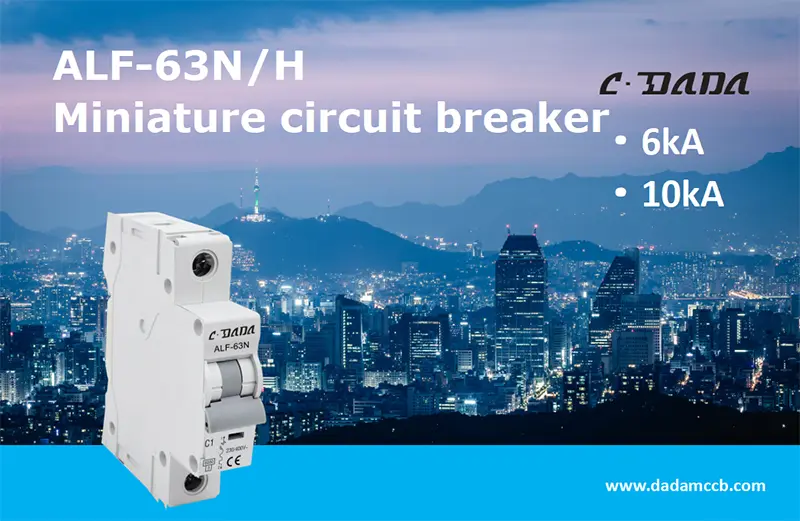

ALF-63N / H taxane sare jabin 6KA 10kA Miniature Circuit Breaker (MCB), waafaqsan IEC60898 heerka, MCB waxay leedahay sifo waxqabadka la isku halayn karo, shaqada ilaalinta saxda ah, waqti sii deynta gaaban, iyo awoodda jabinta sare, mugga yar sidoo kale. Waxaa si weyn loo isticmaalaa gudaha iyo culeyska xad dhaafka ah ee xiriiriyeyaasha, qalabka beddelka, iyo qalabka korontada.

La xidhiidh CDADA oo noo dooro sidii soo saarahaaga, waxaanu ku siin karnaa adeegyada OEM/ODM.

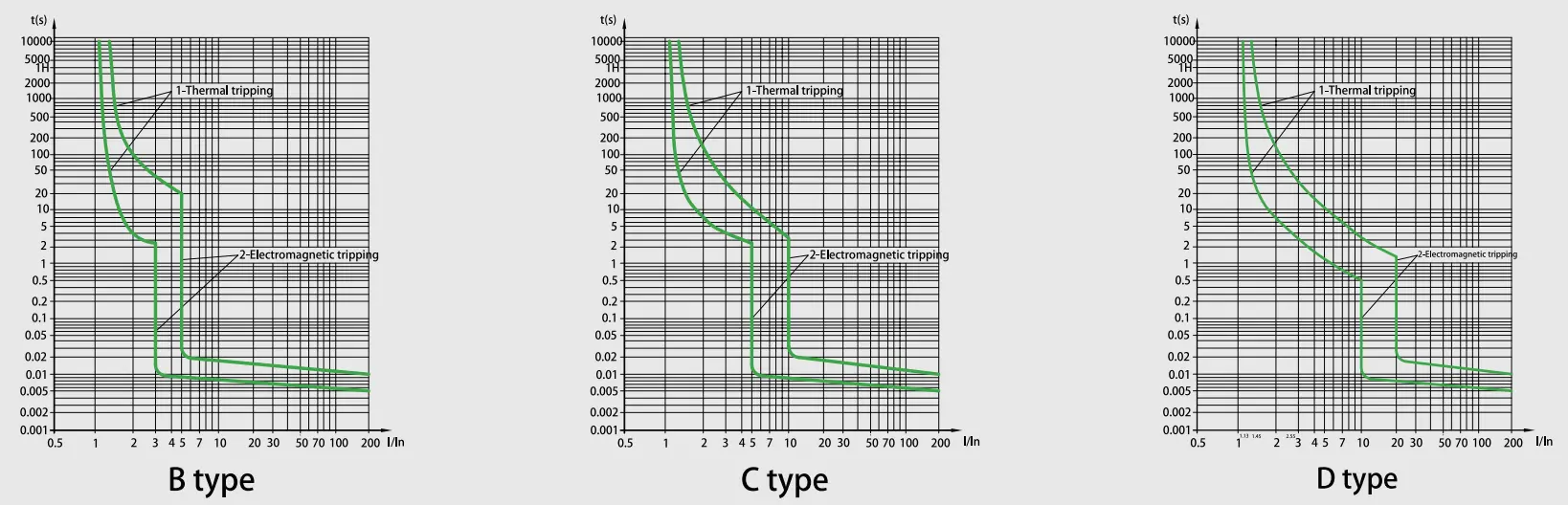

Qalooca sifada

Tilmaamaha Farsamada

ALF-63N/H Taxanaha 6KA 10kA Miniature Circuit Jebiye
Heerka	EN/IEC60898-1
Awood jabinta (kA)	6,10
Ilaalinta	Ka soo horjeeda culeyska xad-dhaafka ah iyo wareegga gaaban
Hadda lagu qiimeeyay (A) In	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Danab la qiimeeyay (V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Dareenka la qiimeeyay ee u adkeysanaya danabka Uimp(kV)	4
Ui(V) dahaarka la qiimeeyay	500
Kaska xaddidaya tamarta	3
Heerkulka deegaanka (℃)	-25~+40,Max.95% qoyaan
Xadka hawlgalka kulaylka	1.13xln Ma dhacayso saacad gudaheed
	1.45xIn Safar saacad gudaheed ah
Hawlgalka magnetka	B: (3-5)xIn,C:(5-10)xIn,D:(10-20)xIn
Tirada tiirarka	1P,1P+N,2P,3P,3P+N iyo 4P
Nooca safarka	Kuleylka/magnetic sii daynta
Awoodda terminaalka	16mm² dabacsan ama 25mm² adag ilaa 25A
	25mm² dabacsan ama 35mm² adag laga bilaabo 32A ilaa 63A.
shahaadada ilaalinta	IP20
Rakibaadda	Ku dhejinta 35mm tareenada DIN
Ballaca	17.8mm tiirkiiba

Sifada sii daynta wareegtada jebiya

MAYA	Hadda lagu qiimeeyay sii daynta(A)	Xaaladda hore	Tijaabi hadda	Waqti cayiman	Natiijada in la helo	Hadallo
1	1-63	xaalad qabow	1.13 gudaha	t≤1h	Safar aan ahayn
2	1-63	imtixaankii hore	1.45 ln	t <1h	safar	Dejinta hadda ilaa qiimaha la cayimay si joogto ah 5s
3	In≤32	xaalad qabow	2.55In	1s	safar
	Gudaha>32
4	1-63	xaalad qabow	3In	t≤0.1s	Safar aan ahayn	nooca B
			5In	t<0.1s	safar	nooca B
			5 10 ln	t≤0.1s	Safar aan ahayn	nooca C
			10In	t<0.1s	safar	nooca C
			20ln	t≤0.1s	Safar aan ahayn	nooca D
				t<0.1s	safar	nooca D

Adkeysiga(Hawlgallada)

Qaybta	Wareegtada Hawlgalka	Inta jeer ee hawlgalka	Hadda la qiimeeyay
adkaysiga korantada	4000	240/h	1-32
		120/h	40-63
adkaysiga makaanikada	10000	240/h	1-63

Astaamaha

★ Awoodda Jebinta Wareegga Gaaban ee aadka u sarreeya

Tiknoolajiyada kontoroolka sare ee arc waxay ku guulaysataa awood joojin sare marka loo eego heerarka warshadaha, iyada oo hubinaysa ilaalinta la isku halayn karo ee nidaamyada korantada heerka warshadaha ee ku jira xaalado cilad aad u daran.

★ Interface-ka Isku xidhka Dual-Mode

Nakhshad isku-dhafan oo isku-dhafan waxay taageertaa xidhitaanka baska adag iyo xidhitaanka fiilooyinka dabacsan, taas oo u sahlaysa la qabsiga qalab la'aan xaaladaha rakibaadda kala duwan iyadoo la dhimayo wakhtiga fiilooyinka 40%.

★ Habka Kaydinta Tamarta ee Cimri dheer

Nidaamka qalliinka ee guga lagu caawiyay oo leh 10,000 wareegyo farsamo oo adkaysi leh, oo muujinaya tignoolajiyada magdhawga

★ Xiritaanka Isku-dhafka Sare ee Sare

leh caan-soo-noqosho, kulayl u adkaysta, iyo guryaha aan kicinta lahayn ee isku dhafan qolal-deminta dhacdooyinka khaladka ah.

★ Dhaqdhaqaaqa Xadaynta Hadda Jirta

Xakamaynta tamarta si caqli-gal ah ayaa hoos u dhigaysa qulqulka cilladaha ugu sarreeya 65-80%, taasoo awood u siinaysa hagaajinta qeexida aaladda 30% guud ahaan nidaamka dhimista qiimaha.

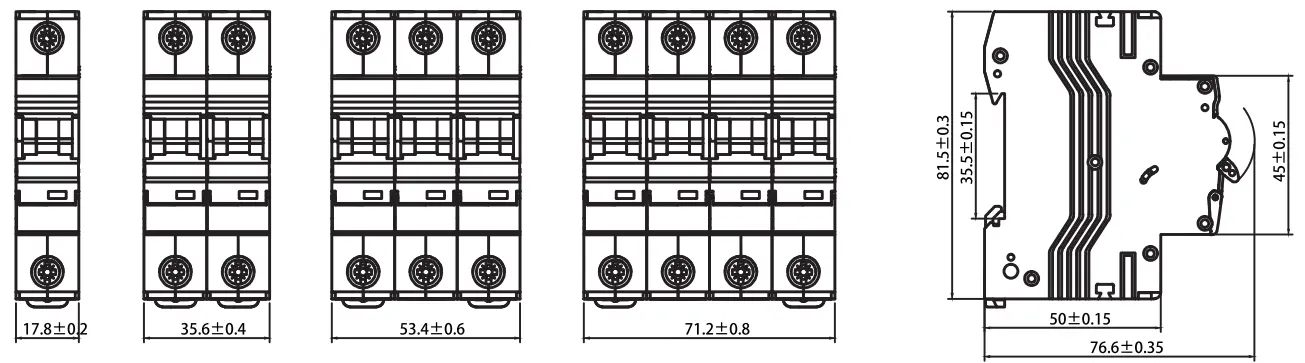

cabbirrada dulucda

Xaaladaha Codsiga

★ Deegaanka: Qaybaha macaamiisha iyo looxyada qaybinta ee badbaadada guriga.

★ Warshadaha: Ilaalinta kontaroolka, qalabka wax lagu beddelo, iyo qalab koronto oo culus.

★ Ganacsi: Dhismayaasha xafiisyada iyo xarumaha dukaamaysiga ee u baahan isku halaynta sare.

Xakamaynta tayada & Imtixaanka caadiga ah

CDADA MCB kasta waxa lagu sameeyaa baadhitaan adag si loo hubiyo u hogaansanaanta IEC60898-1:

Tijaabada Safarka Kulaylka: La xaqiijiyay 1.13In (safar aan ahayn) iyo 1.45In (safar 1 saac gudaheed ah).

Tijaabada Safarka Magnetka: Tijaabada saxda ah ee siidaynta ee sifooyinka B, C, iyo D.

★ Adkeysiga Korantada: Waxaa lagu tijaabiyay 4,000 oo wareegyo qalliin ah.

★ Adkeysiga Makaanikada: La xaqiijiyay 10,000 wareeg.

Xoogga Warshada & Taageerada

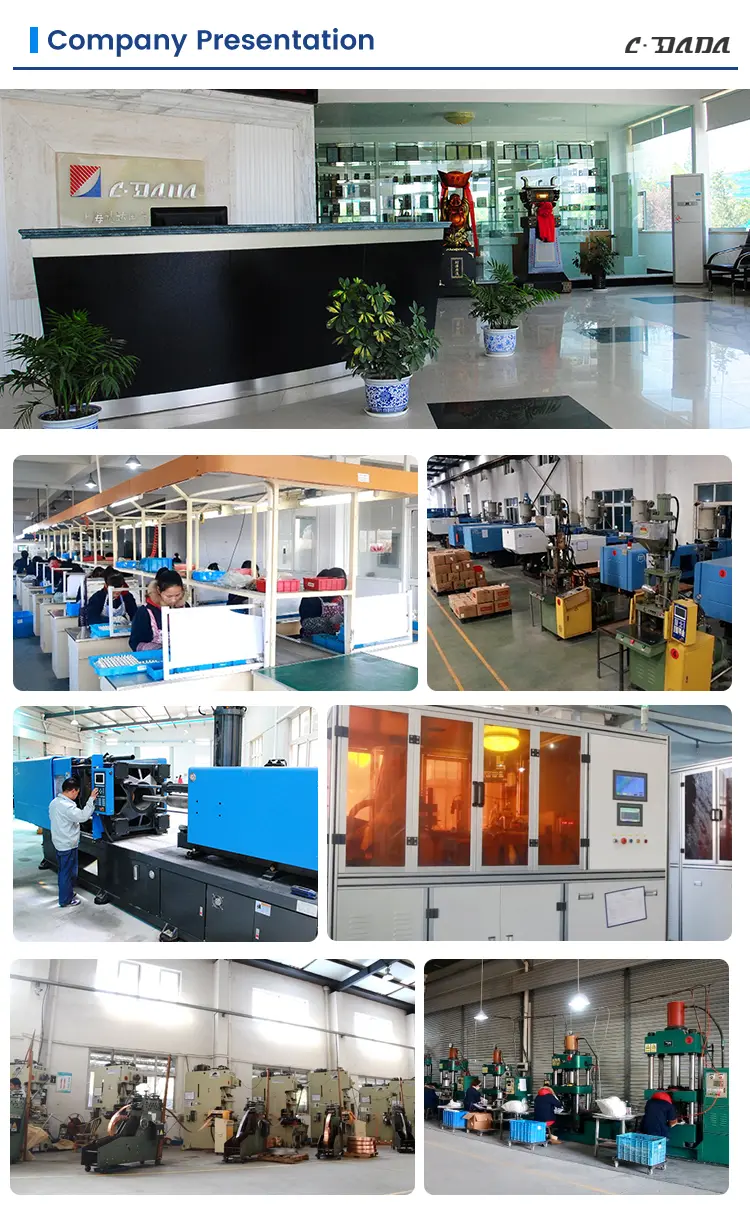

Shanghai DADA Electric Co., Ltd. waa saaraha hormuudka ah oo leh khadadka wax soo saarka horumarsan iyo koox injineernimo xirfad leh. Waxaan bixinaa:
