6kA AC Miniature circuit Breaker

Hubi ilaalinta wareegtada la isku halayn karo, badbaadada, iyo hufnaanta leh ee guryaha iyo dhismayaasha yaryar ee ganacsiga leh CDADA DAB6-63 6kA AC Miniature Circuit Breaker. Naqshadeynta daaqadaha qaybinta guryaha, 6kA-ga yar ee wareegga wareegga ah wuxuu bixiyaa culeys sax ah iyo ilaalin gaaban oo ka dhan ah culeysyo kala duwan - laga bilaabo nalalka iyo qalabka (B-curve) ilaa matoorada leh qulqulka qulqulaya sare sida bambooyin iyo kor u qaadis (D curve).

Shahaadooyinka CE iyo CB, naqshadaynta terminalka adag, iyo heerkulka hawlgalka ee -40 ° C ilaa + 50 ° C, DAB6-63 waxay bixisaa waxqabad la isku halayn karo jawi kasta. kabaalkeeda ballaaran ee la cusboonaysiiyay waxay hubisaa hawlgal sugan, halka xirmooyinka la jeexjeexay ay yareeyaan kulaylka oo ay kor u qaadaan xasilloonida isku xidhka-ka-samaynta doorashada caqliga leh ee koronto-yaqaannada, wax-dhisayaasha, iyo isu-ururinta guddida OEM.

Tilmaamaha Muhiimka ah

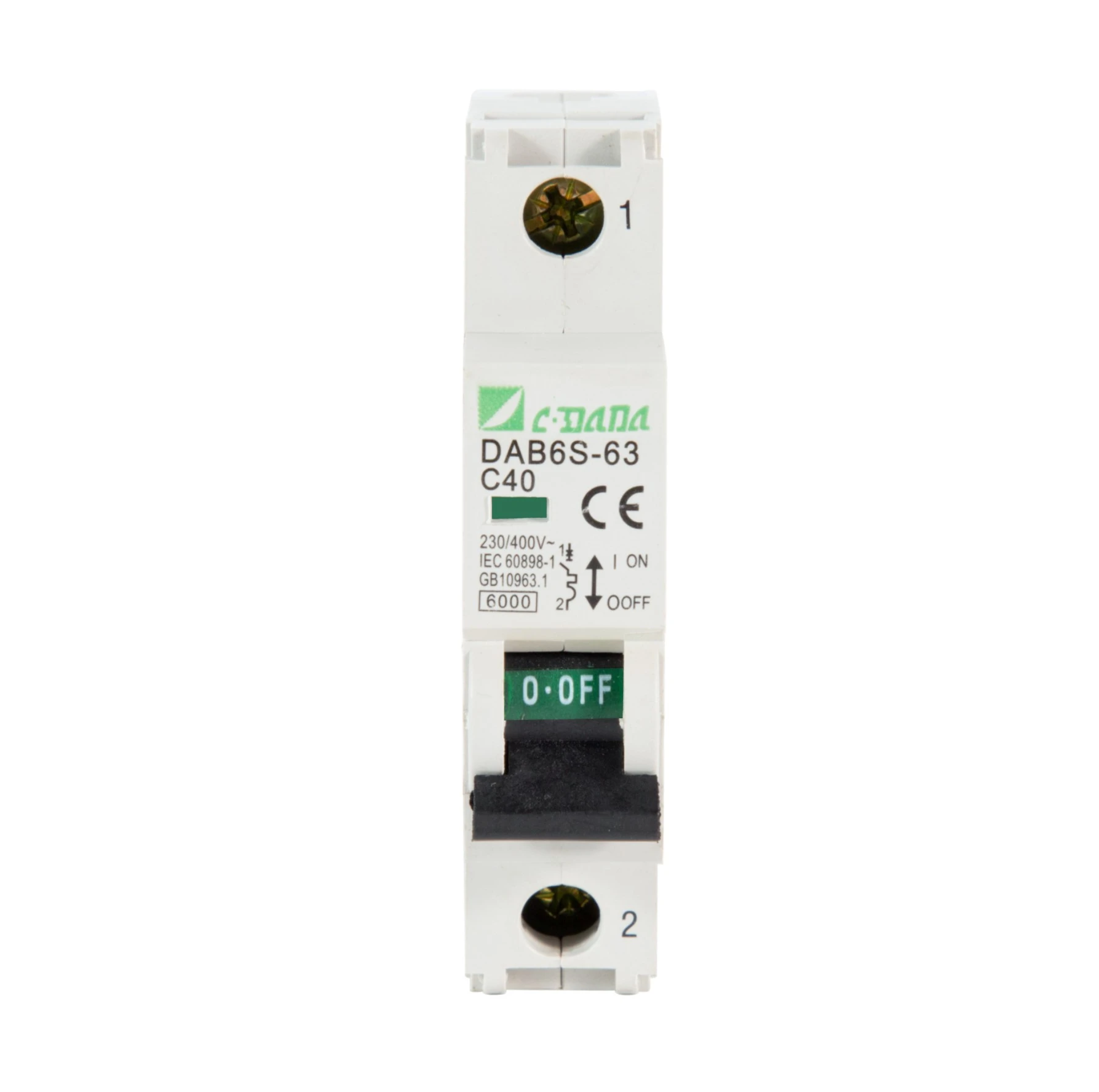

Model: DAB6-63 Taxanaha

Nooca: AC Miniature Circuit Breaker (MCB)

Awoodda Jebinta: 6kA @ 230/400V AC

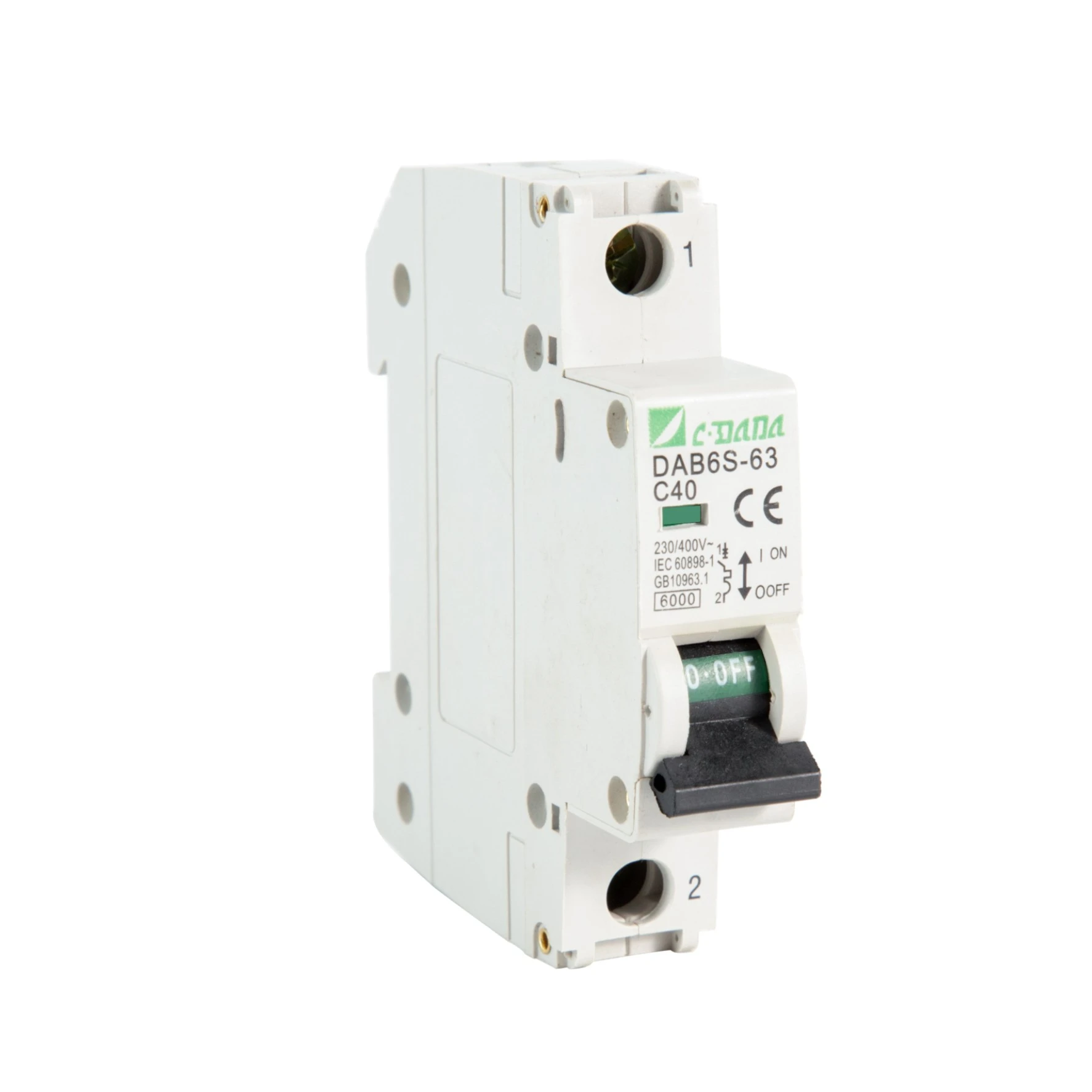

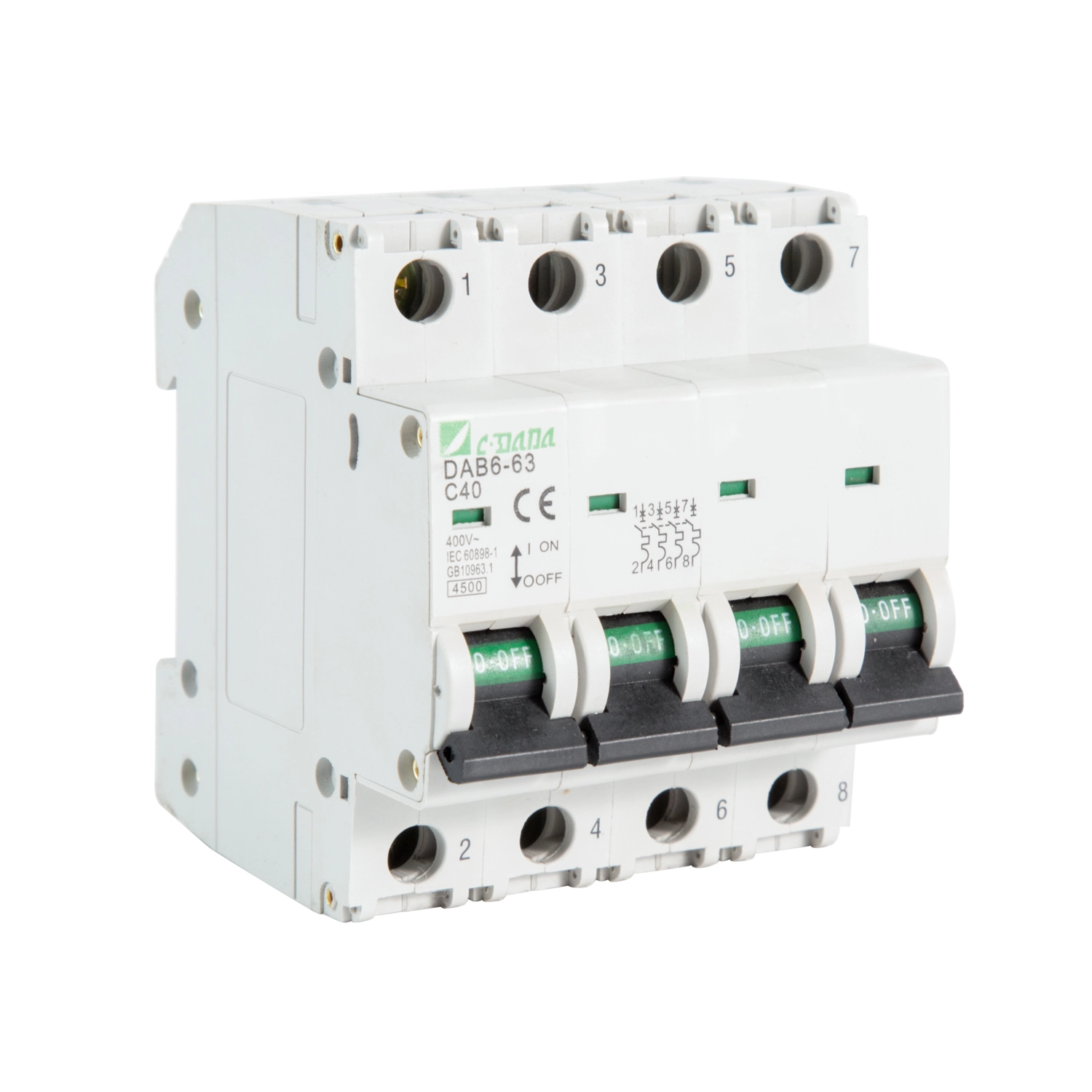

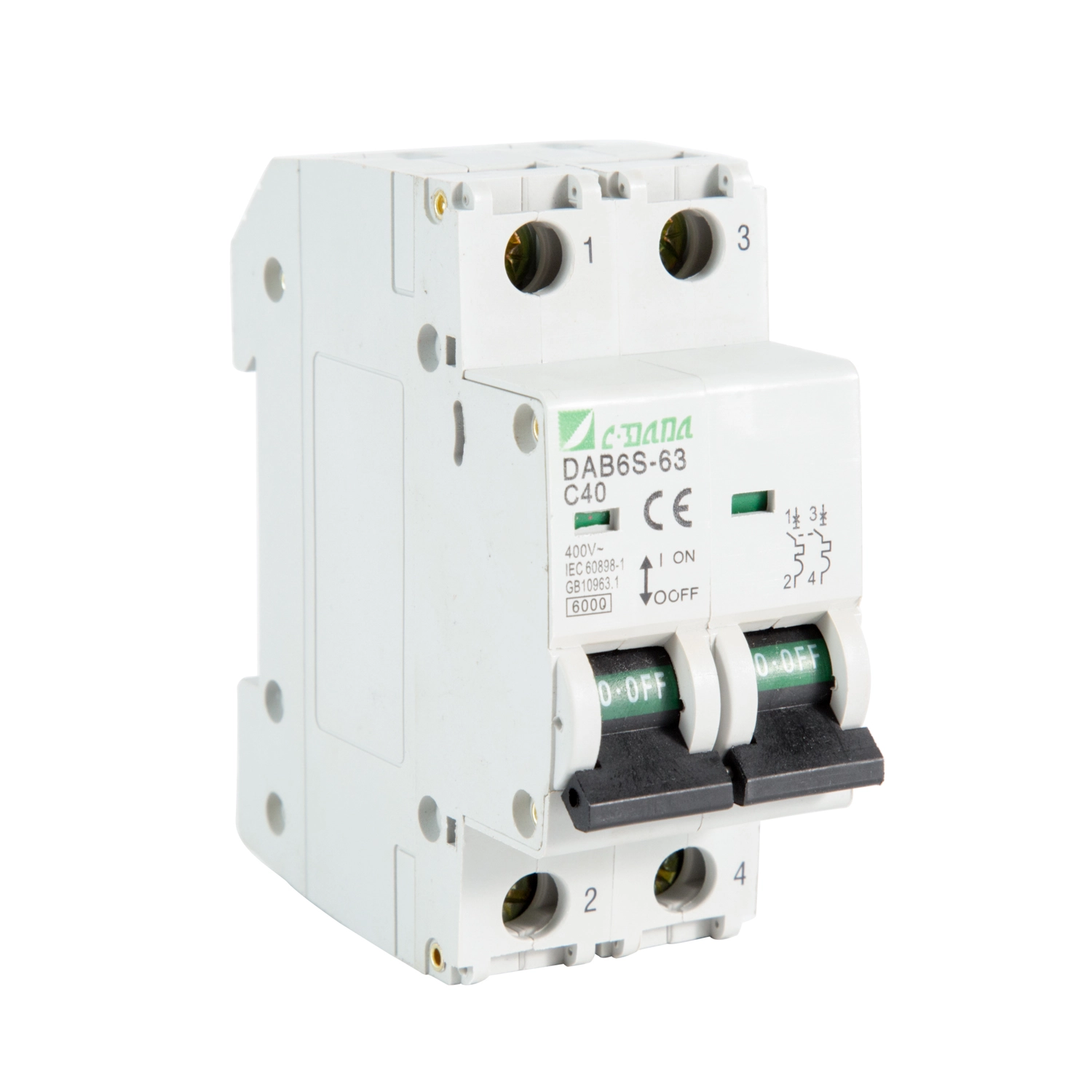

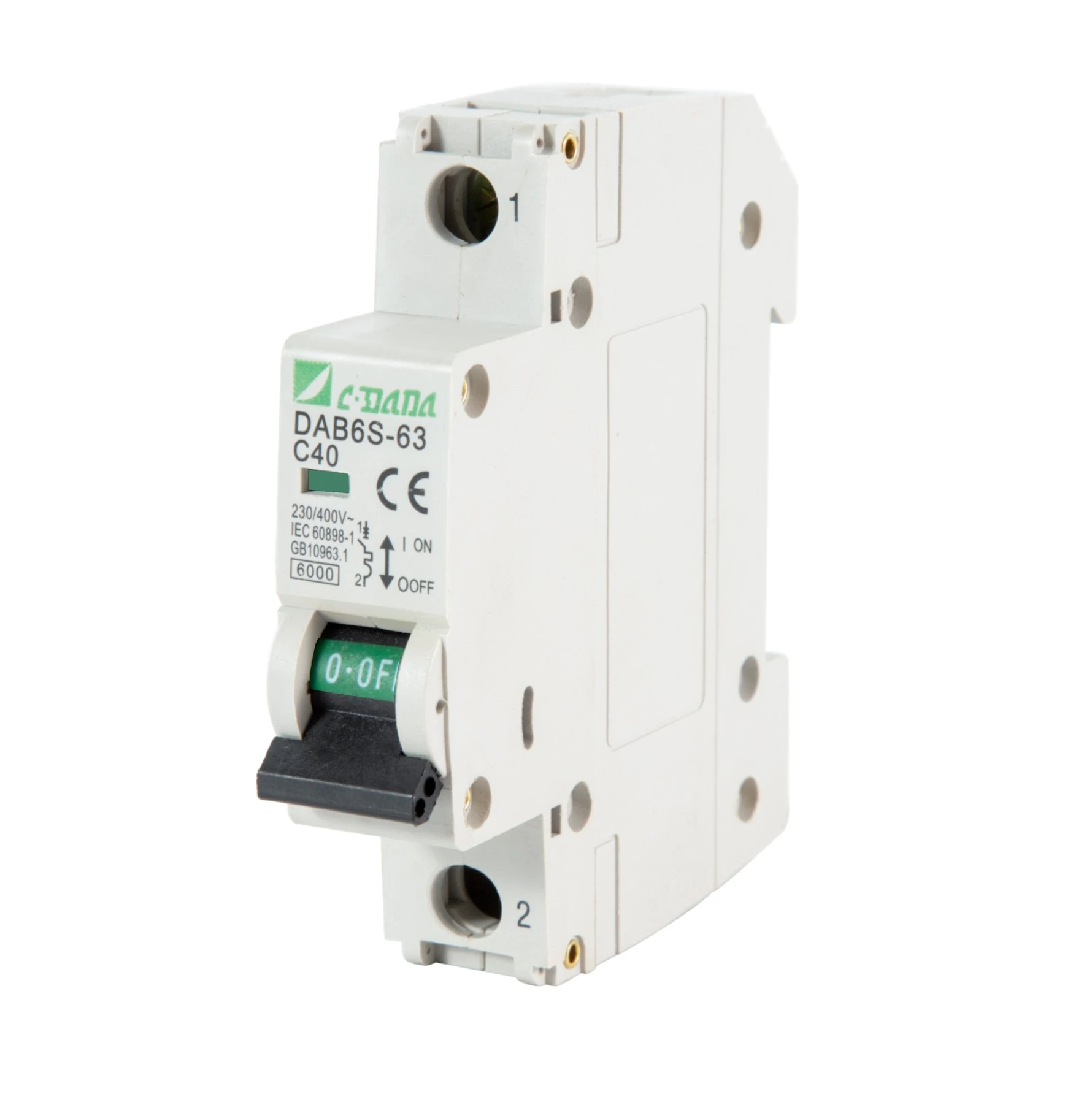

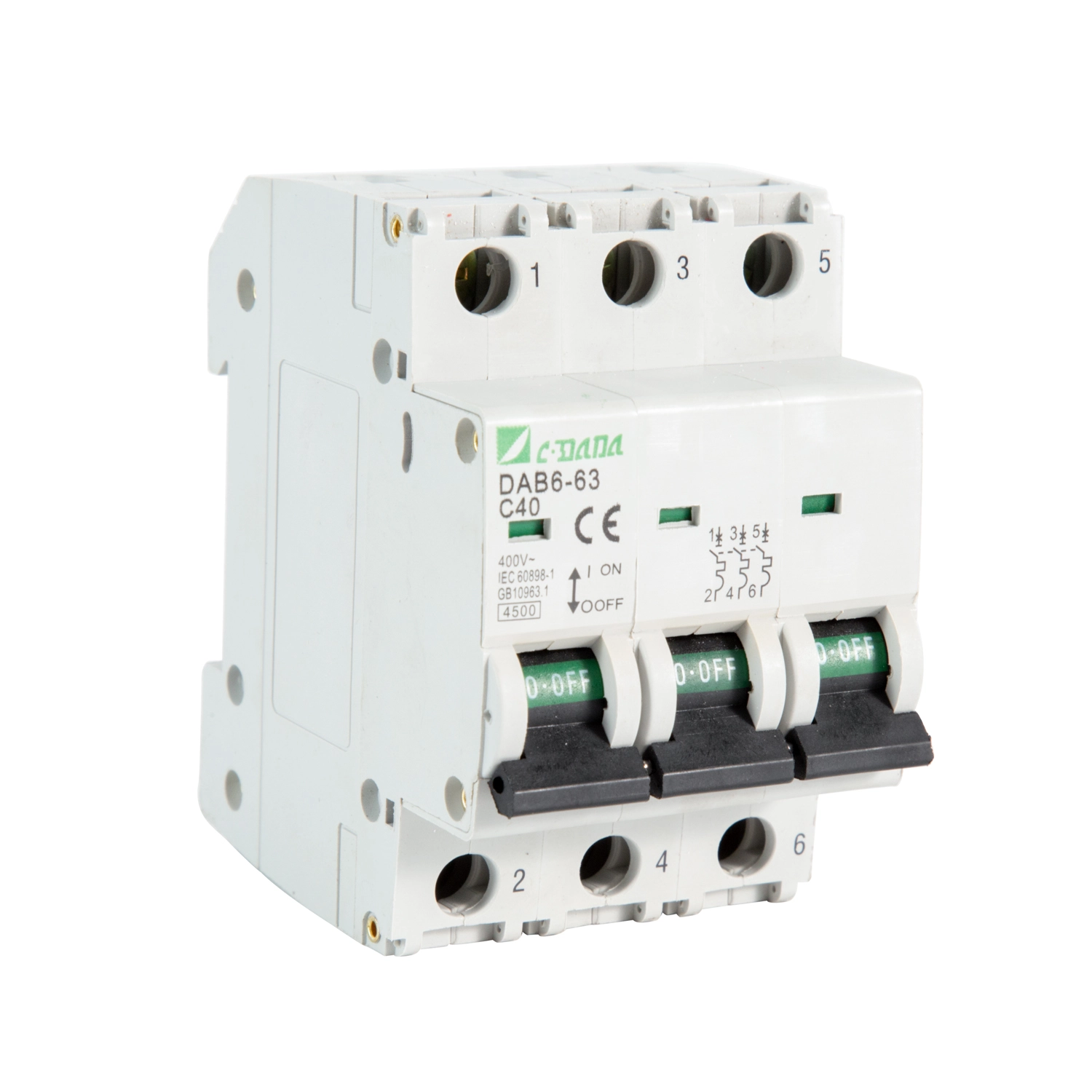

Tiirarka: 1P, 2P, 3P, 4P

Curyaaminta Safarka:

B: Loogu talagalay nalka & culeysyada iska caabbinta (3-5× In)

C: Loogu talagalay matoorada ujeedada guud (5-10× In)

D: Culaysyada faleebo ee sareeyo sida kombaresarada/bambooyinka (10-20×In)

Hadda lagu qiimeeyay (gudaha): 1A - 63A (tallaabooyinka caadiga ah)

Heerkulka shaqada: -40°C ilaa +50°C

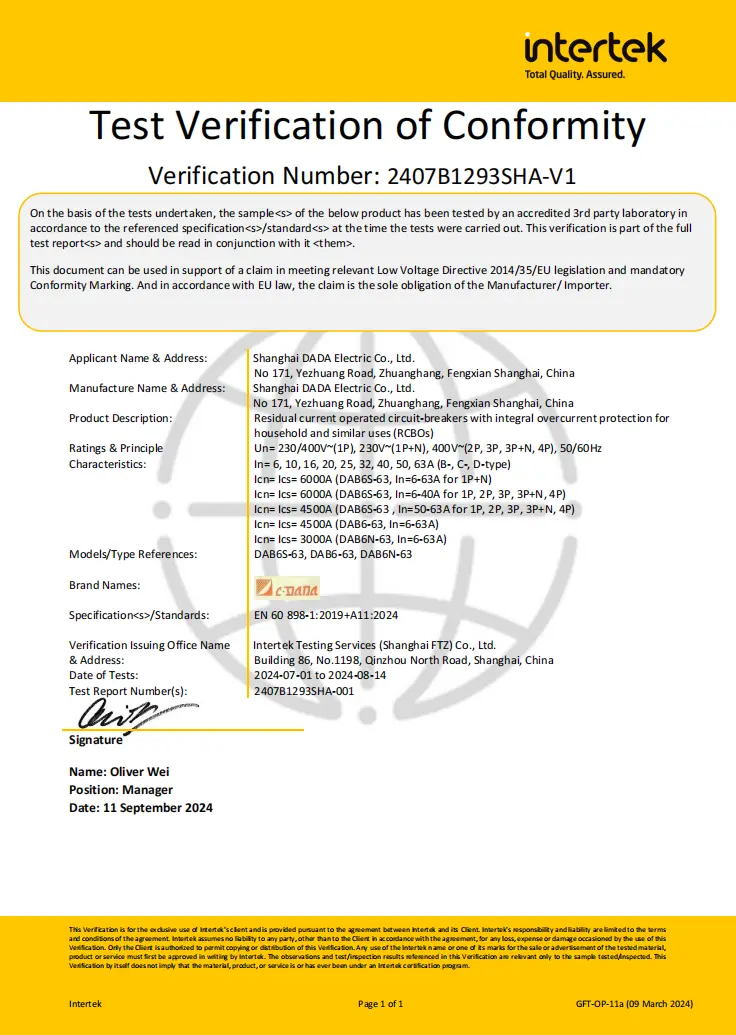

Shahaadooyinka: CE, CB

Astaamaha Muhiimka ah:

★ Xakamaynta terminaalka ee la jeexjeexay → luminta kulaylka oo hooseeya, xoog farsamo oo sarreeya

★ kabaal hawlgal oo ballaadhan → xajin fiican iyo aagga xidhiidhka

★ hababka ilaalinta wareegga gaaban

DIN tareenada lagu rakibi karo (heerka 35mm)

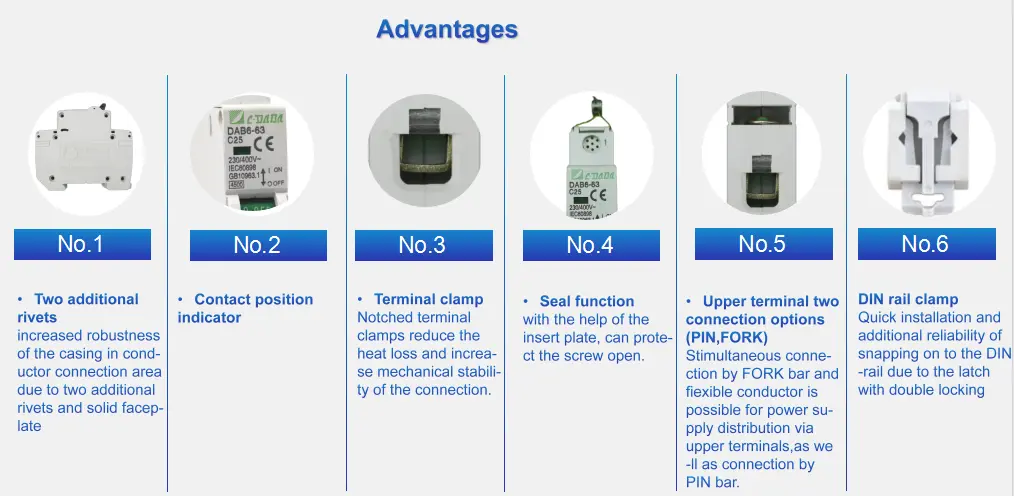

Faa'iidooyinka

Xaashida Xogta Farsamada

Waa maxay sababta aad u dooratay CDADA 6kA AC Miniature Circuit Breaker?

★ Ilaalinta Ku Habboon ee Culays kasta

Dooro qalooca safarka saxda ah (B/C/D) si aad u dhigma codsigaaga-ka fogaanshaha safarrada dhibka adigoo hubinaya amniga.

	Tijaabi hadda	Waqtiga safarka	Codsiyada
B Curve	3ln 5ln	0.132A)	Nooca B waxa kaliya oo lagu dabaqi karaa culaysyada firfircoon: -Kuleyliyaha korantada-Kuleyliyaha biyaha - Foornada korontada
C Curve	5In 10ln	0.1 32A) t <0.1s	Nooca C wuxuu ku habboon yahay rarka caadiga ah: -Laambad -Bakeda tamarta -Matoorka tamarta yar
D Qalooca	10ln 20In	0.132A) t<0.1s	Ku xakamee oo ilaali wareegyada iyadoo la adeegsanayo qulqulka degdega ah (matoorada waaweyn)

★ Injineer si loogu kalsoonaan karo Cimilada daran

Wuxuu u shaqeeyaa si aan cillad lahayn laga bilaabo qabowga Arctic (-40°C) ilaa kulaylka kulaylka (+50°C) — ku habboon mashaariicda caalamiga ah.

★ Tamarta Hoose ee Luminta, Badbaadada Sare

Xakamaynta terminalka ee la aqoonsan yahay waxay kordhisaa cadaadiska xidhiidhka, yaraynta caabbinta, kulaylka dhalinta, iyo khatarta dabka.

★ Naqshad Saaxiibtinimo Isticmaale

Kabadhka ballaadhan waxa uu hagaajiyaa hawlgalka gacanta - oo muhiim ah marka ay jiraan xaalado degdeg ah ama beddelaad joogto ah.

★ U Hogaansanaanta Caalamiga ah ee la Aaminsanyahay

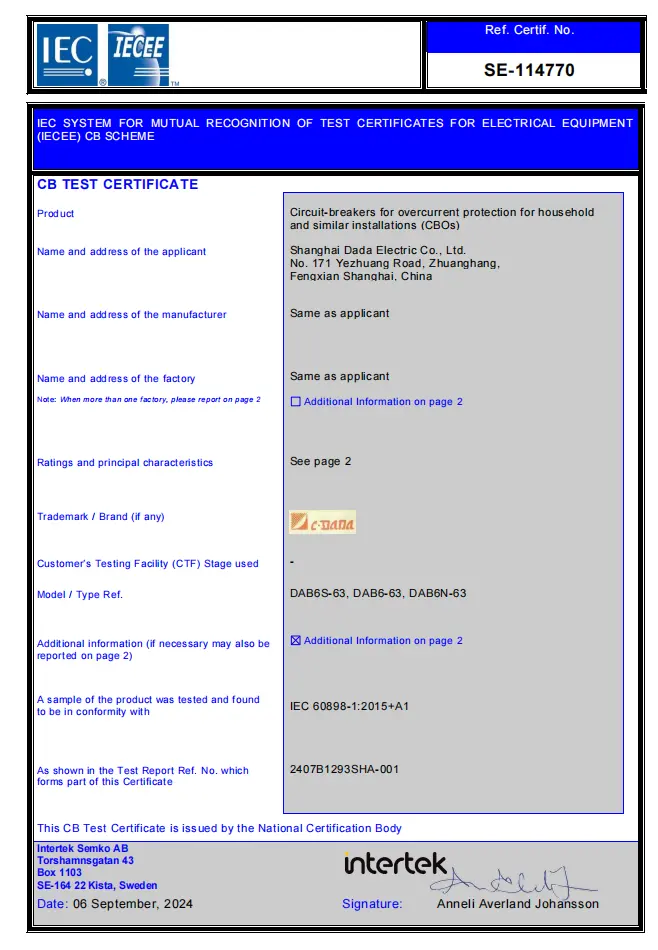

Shahaadooyinka CE iyo CB waxay xaqiijinayaan aqbalaadda Yurub, Bariga Dhexe, Afrika, iyo Aasiya - oo ay taageerto xakamaynta tayada ku salaysan ee Shanghai.

★ Ku Fiican Deegaanka & Isticmaalka Ganacsiga Fudud Is haysta, kharash-ool ah, oo sahlan in la rakibo-ku habboon guryaha dabaqyada ah, xafiisyada, dugsiyada, iyo goobaha tafaariiqda.

Codsiyada caadiga ah

Guryaha: Wareegyada iftiinka, meelaha laga soo galo, qalabka jikada

Apartments & Condos: Looxyada qaybinta heerka dabaqa

Xafiisyada Yaryar: HVAC, Qalabka IT, calaamadaha

Bakhaarrada Tafaariiqda: Muujinta iftiinka, nidaamyada POS

Wershadaha Iftiin: Xakamaynta marawaxadaha, bambooyin yaryar, kombaresarada

Su'aalaha Inta Badan La Isweydiiyo (FAQ)

Q1: Waa maxay macnaha "6kA" ee MCB?

A1: Waa awooda jabinta wareegga-gaaban-khaladaadka ugu badan ee hadda jira (6,000 amps) MCB waxay si badbaado leh u joojin kartaa iyada oo aan waxyeello lahayn. Ku habboon inta badan codsiyada ganacsiga guryaha iyo kuwa fudud.

Q2: Qalooca safarkee ayaan u dooran karaa isticmaalka guriga?

A2:

B qalooca: Waxa ugu fiican iftiinka iyo saldhigyada guud

C qalooca: Waxaa lagu taliyay qaboojiyaha, mishiinada dharka, ama matoorada yaryar

D qalooca: Kaliya waxa loo baahan yahay aaladaha rushaynta sare sida matoorada biyaha ama wiishashka

Q3: MCB-kan ma loo isticmaali karaa meelaha bannaanka ah?

J3: Haa—ilaa inta xeradu bixiso ilaalinta IP. 6kA AC Miniature Circuit Breaker lafteedu waxay u shaqeysaa si la isku halleyn karo laga bilaabo -40°C ilaa +50°C, taasoo ka dhigaysa mid ku haboon garaashyada, cooshadaha, ama sanduuqyada mitirka ee cimilada adag.

Q4: Terminalku ma ku habboon yihiin fiilooyinka caadiga ah?

A4: Haa-waxay aqbashaa fiilooyinka naxaasta ah ee adag ama go'doonsan ilaa 25mm², iyo naqshadaynta xajintu waxay hubisaa isku xidh ammaan ah, iska caabin hoose ah.

Q5: Maxaad CDADA uga doorataa noocyada kale ee 6kA ee MCB?

A5: CDADA waxay bixisaa:

● Shahaadada saxda ah ee CE & CB (ma aha oo kaliya is-sheeg)

● Kala duwanaanshiyaha heerkulka hawlgalka ee ka ballaaran tartamayaasha badan

● Naqshad terminal oo la xoojiyey oo loogu talagalay kulaylka hoose iyo nolosha dheer

● Nadiifi calaamadaynta B/C/D si aad si fudud u doorato

● Qiimaynta saaxiibtinimo ee OEM oo leh tayo joogto ah oo ka timid soo saaraha Shiineeska ah ee shahaadaysan
