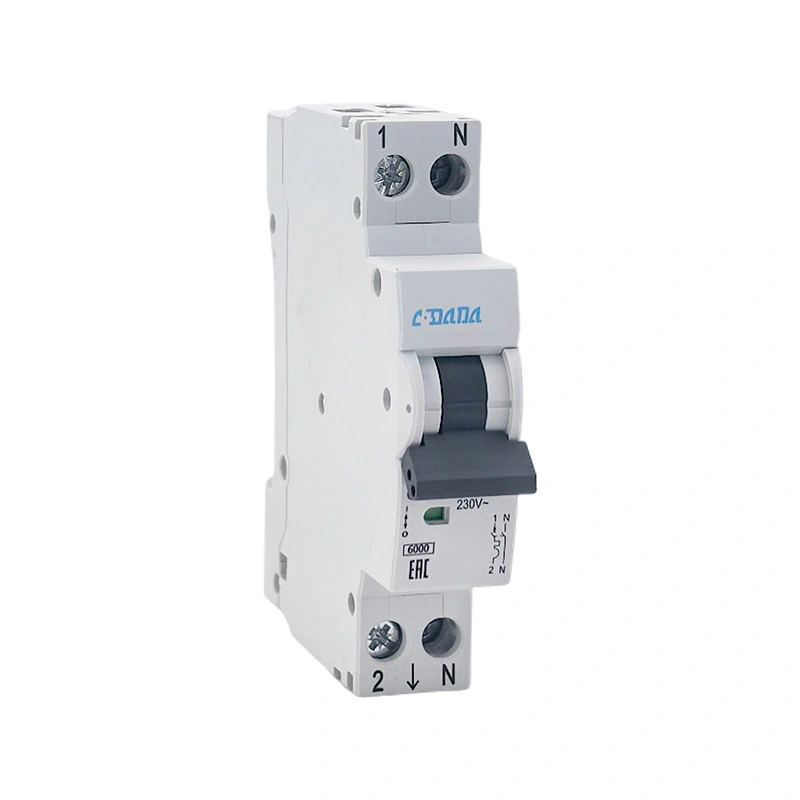

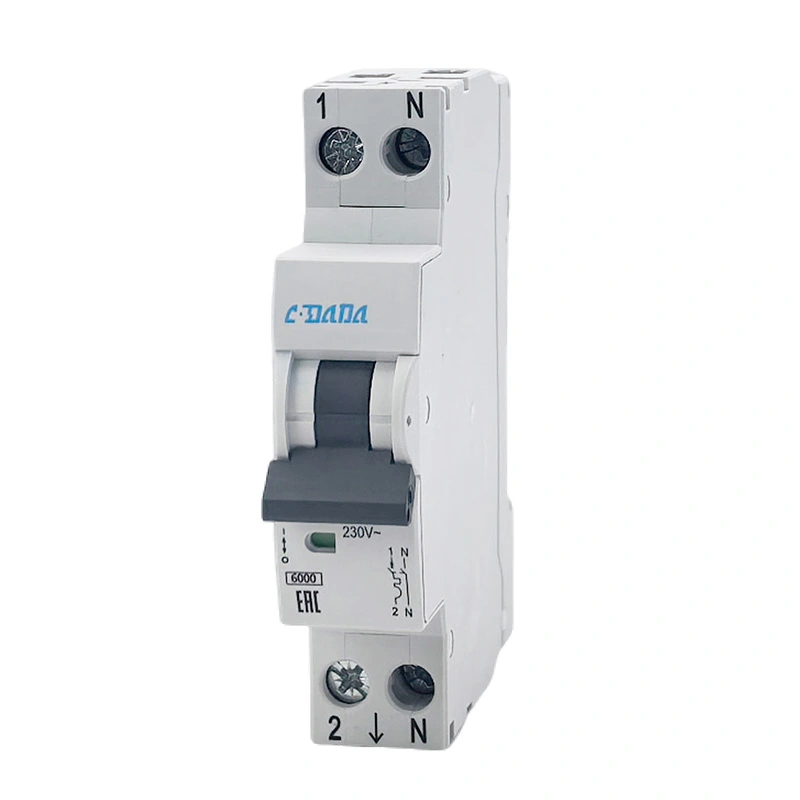

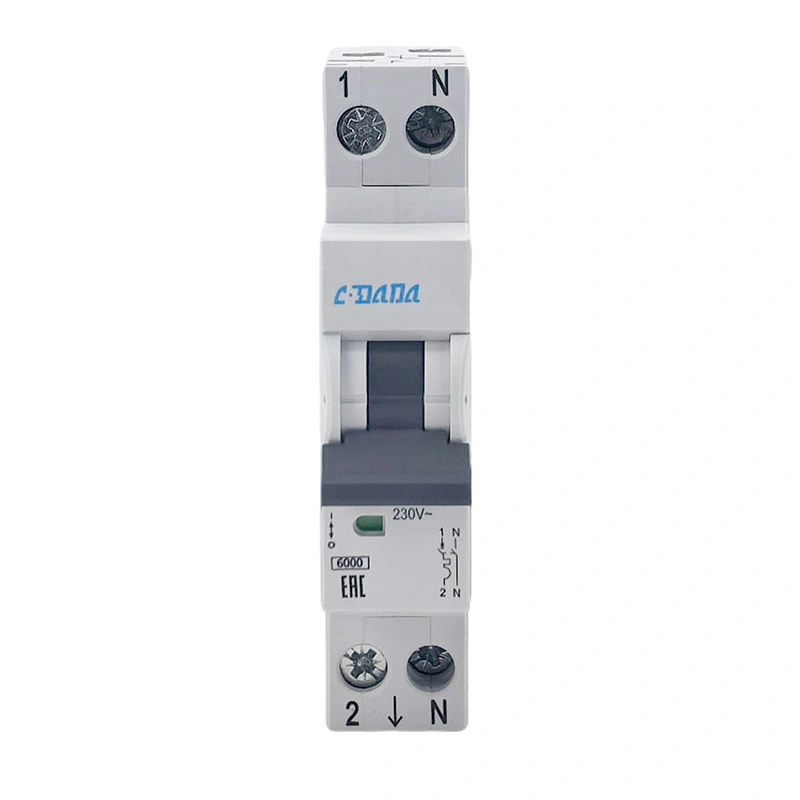

Jeexiyaha Yare DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA waxay ku fiican tahay iibsashada bulk, tayo sare leh 1P+N jabiye yar yar oo u hogaansan IEC60898-1 ilaalinta badbaadada qoyska iyo ganacsiga. Waxay adeegsataa nashqad laba-dhibcood ah iyo kuleyl-magnetic deggenaansho, fududahay in lagu rakibo tareenka DIN waana fududahay in la ilaaliyo. Waxay isku daraysaa qaab-dhismeed lagu kalsoonaan karo oo leh nolol dheer oo adeeg ah, iyada oo hubinaysa sahayda korantada ee badbaadada leh ee nidaamyada tamarta hooseeya ee kala duwan.
CDADA DAB7N Miniature Circuit Breaker DPN 6KA waa xirfadle 1P + N dual-breaker circuit breaker si madax banaan u horumariyay Shanghai DADA Electric, soo saaraha la isku halayn karo oo leh 40+ sano oo waayo-aragnimo ah. Iyada oo leh 6kA awoodda jabinta sare, hawlgalka isku midka ah, iyo N-pole "sameeya marka hore, jebiya dambe" naqshadeynta, waxay si wax ku ool ah u wanaajisaa deminta waxqabadka waxayna si badbaado leh u ilaalisaa wareegyada iyo qalabka. Si ballaaran loo isticmaalo sanduuqyada qaybinta, qurxinta guriga, awoodda ganacsiga, iyo wareegyada iftiinka, waa doorashada koowaad ee iibsadayaasha caalamiga ah, qaybiyeyaasha iyo macaamiisha OEM.

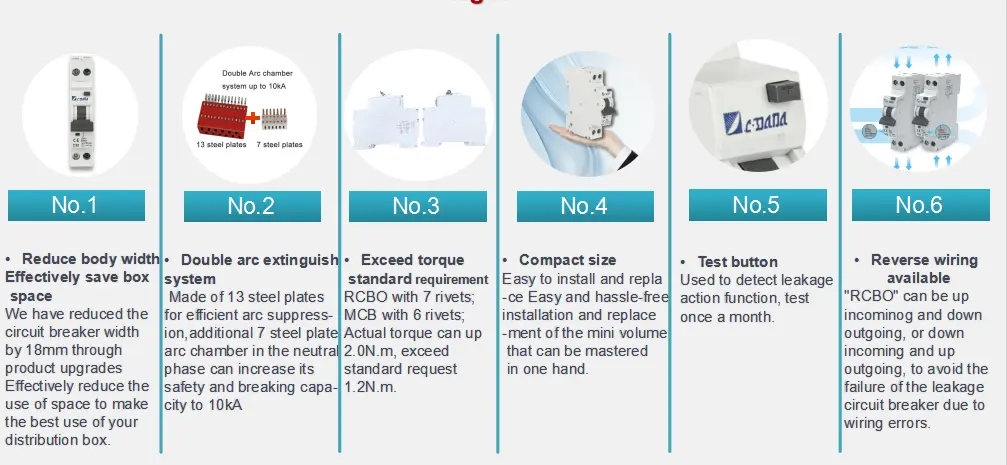

Waa maxay faa'iidooyinka MCB DPN 6KA?
★ 1P+N qaab dhismeedka DPN, laba dhibcood oo nasasho ah, ka badbaado badan oo la isku halayn karo
Tiirka N ayaa marka hore sameeya oo jebiya mar dambe, waxa uu wanaajiyaa awoodda jabinta qaansada
★ 6kA awoodda jabinta dhabta ah, difaac adag oo gaaban oo gaaban
★ Ballaca 17.8mm is haysta, wuxuu badbaadiyaa booska golaha
Curyaaminta B/C ee loo heli karo rar kala duwan
★ heerka ilaalinta IP20, badbaadsan in la taabto
★ Xadhkaha fiilo ballaaran: 1-25mm² fiilo dabacsan
★ DIN tareenka, rakibaadda degdega ah oo xasilloon
★ Iska caabin heerkul sarreeya iyo mid hooseeya: -25℃~+50℃
★ Nolol farsamo oo dheer ilaa 20,000 jeer
Codsiyada
CDADA Miniature Circuit Breaker DPN 6KA si weyn ayaa loogu isticmaalaa:
★ Dhismayaasha deegaanka, aqalada, filooyinka, qurxinta guriga
★ Xafiisyada, Dukaamada, Huteelada, Dugsiyada, Isbitaalada
★ Wareegyada iftiinka, saldhigyada korontada, qalabka korontada yar
Qalabka guriga: kuleyliyaha biyaha, qaboojiyaha, kululeeyayaasha korontada
Dib u dhiska wareegga hore iyo hagaajinta sanduuqa qaybinta
★ Nidaamyada qaybinta korantada korantada hoose ee ganacsiga iyo rayidka
Shaxda Hababka Farsamada
| Shayga | Tilmaamid |
| Qaabka | DAB7N-40 |
| Magaca Alaabta | MCB DPN 6KA |
| Heerka | IEC60898-1 |
| Tiirarka | 1P+N (2P) |
| Jebinta Awoodda | 6kA |
| Lagu qiimeeyay Hadda | 6A,16A,20A,25A,32A,40A |
| Voltage lagu qiimeeyay | AC 220/230/240V |
| Soo noqnoqda | 50/60Hz |
| Qallooca | B/C |
| Korontada dahaarka | 500V |
| Qulqulka Voltage | 4kV |
| Degree ilaalinta | IP20 |
| Nolosha Makaanikada | 20,000 jeer |
| Nolosha Korontada | 6,000 jeer |
| Terminal Torque | 1.5Nm |
| Awoodda xadhkaha | 1-25mm² |
| Heerkulka Shaqada | -25 ℃ ~ +50 ℃ |
| Cabirka | 82.5×73.2×17.8mm |
Qeexidda Cabbirrada
★ Dhererka: 82.5mm
★ Dhererka: 73.2mm
★ Ballaca: 17.8mm (ballaca 1-module ee caadiga ah)
★ Koritaanka: 35mm tareenada DIN
Xadhkaha: ku habboon 1-25mm² fiilo dabacsan/ragan
★ Dhumucda baska: 0.8-2mm
Walxaha Imtixaanka caadiga ah
★ 1.13 Imtixaan aan dillaacin (≥1 saac)
★ 1.45 Imtixaanka safarka (<1 saac)
★ 2.55 Tijaabada ficilka xad dhaafka ah
Tijaabada safka degdega ah ee magnetic (3In/5In ee qalooca B/C)
★ Dielectric u adkeysiga tijaabada danabka
★ Tijaabada heerkulka kor u kaca
★ Tijaabada awoodda jebinta wareegga-gaaban (6kA)
★ Tijaabada nolosha makaanikada & korantada
★ Tijaabada hawlgalka heerkulka sare & hooseeya

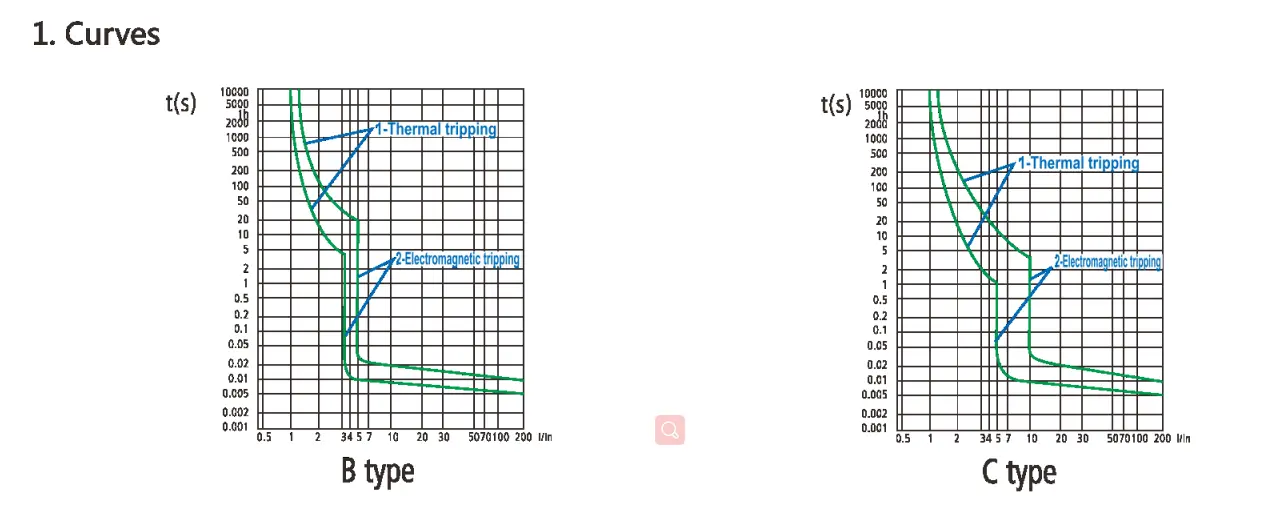

Curyaaminta Dabeecada
IEC 60898-1
Siidaynta Magnetka
Marka wareegga gaaban ee wareegga uu dhaco, degdegga degdega ah waxaa lagu gaaraa magnet leh xudunta birta. Marka loo eego heerka IEC60898, alaabtan waxaa loo qaybin karaa saddex nooc: B, C, iyo D.
|
|
Tijaabi hadda | Waqtiga safarka | Codsiyada |
| B Curve | 3 ln 5ln |
0.1 |
Nooca B waxaa lagu dabaqi karaa oo kaliya culeysyada firfircoon: -Kuleyliyaha korantada-Kuleyliyaha biyaha- Foornada korontada |
| C Curve | 5 10 ln |
0.1 |
Nooca C wuxuu ku habboon yahay rarka caadiga ah: -Lamp -Power socket -Matoorka tamarta yar |
Siidaynta kulaylka
●Marka culeyska xad dhaafka ah uu ku yimaado wareegga, xariiqda bimetallic ee qalabka wareegga ayaa laalaabsan doona kulayl awgeed, taasoo keenaysa in xiriirada ay go'aan oo ay keenaan kulaylka;
●Heerka IEC wuxuu qeexayaa kala duwanaanshaha wakhtiga safarka ee qulqulka culayska badan ee kala duwan;
●Heerkulka deegaanka tijaabada tixraacu waa 30 °C.
| Tijaabi hadda | Waqtiga safarka |
| 1.13ln | t z 1h (gudaha ≦ 63A) |
| 1.45 ln | t <1saac (guda ≦ 63A) |
| 2.55ln | 1s<1s<60s(In≤32A)1s |

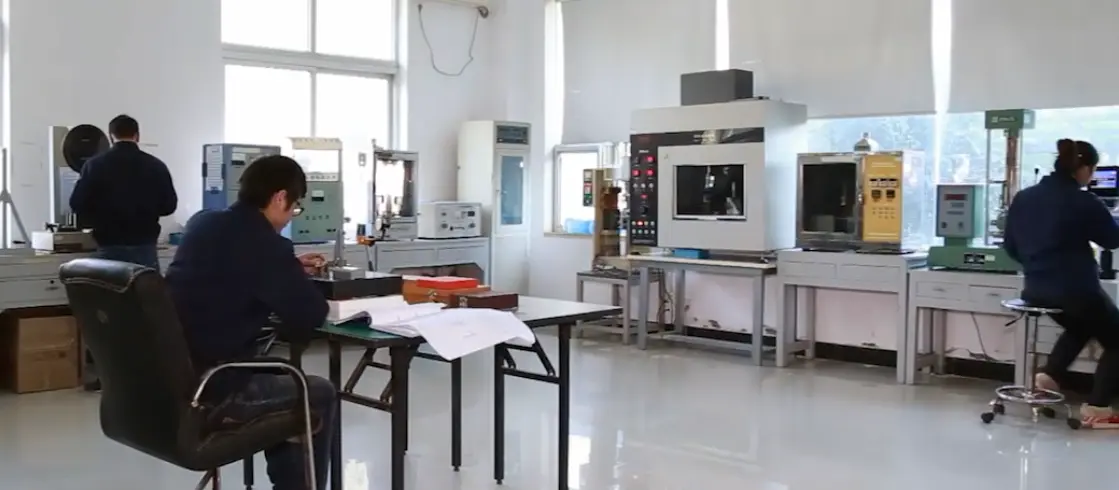

Habka Xakamaynta Tayada
1. Baaritaanka soo galaya alaabta ceeriin & xaqiijinta shahaado
2. Duritaan toos ah oo toos ah & shaabadeynta birta ee saxda ah
3. Isku-dubbaridka badeecada Semi-dhammeeyay & cabbirid
4. 100% imtixaan sifa oo jaban
5. U adkeyso awoodda korantada & tijaabada waxqabadka dahaarka
6. Tijaabada gabowga heerkulka sare iyo hoose
7. Muuqashada, cabbirka & kormeerka astaanta
8. Baakadaha ugu dambeeya & hubinta rarida
Baakadaha & Rarista
Kartoon dhoofinta caadiga ah oo leh dahaar aan naxdin lahayn
★ Sanduuqa kooxda oo baakadaysan si looga fogaado xoqid
★ Summada cad: moodeel, hadda, tiirar, tiro, shahaado
★ Ku habboon gaadiidka badda, hawada iyo dhulka
★ Taageer baakadaha OEM, astaanta gaarka ah iyo summada
Kiisaska Guusha Macmiilka
CDADA MCB DPN 6KA waxaa loo dhoofiyay in ka badan 50 wadan iyo gobolo:
★ Sahayda bulk ee muddada-dheer ee qaybiyeyaasha Yurub iyo Aasiya
★ Mashaariicda dayactirka wareegga guriga ee Bariga Dhexe & Afrika
★ OEM wada shaqaynta la leh noocyada korantada ee caalamiga ah ee caanka ah
★ Taageerada qaybinta awoodda ee horumarinta guryaha
★ Awaamiirta xasiloon ee qandaraaslayaasha korantada iyo kuwa nidaamka isku dhafka ah
Maxaad u dooratay DADA Electric?
★ 40+ sano oo waayo-aragnimo xirfadeed ah R&D jabiyaha iyo wax soo saarka
★ 90% qaybaha xudunta u ah waxa laga soo saaray guriga, xakamaynta tayada degan
★ ISO9001 waa shahaado, si buuxda ugu hoggaansantay heerarka caalamiga ah
★ Shahaadooyin dhammaystiran: CE, CB, CCC, iwm.
★ Awood-soo-saarka weyn, gaarsiinta degdegga ah ee dalabaadka badan
★ Taageerada farsamada xirfadeed iyo adeegga iibka kadib
★ Aqbal OEM & ODM habaynta si loo daboolo baahiyaha suuqa
★ Nidaamka saadka ee caalamiga ah, badqabka iyo keenista wakhtiga
