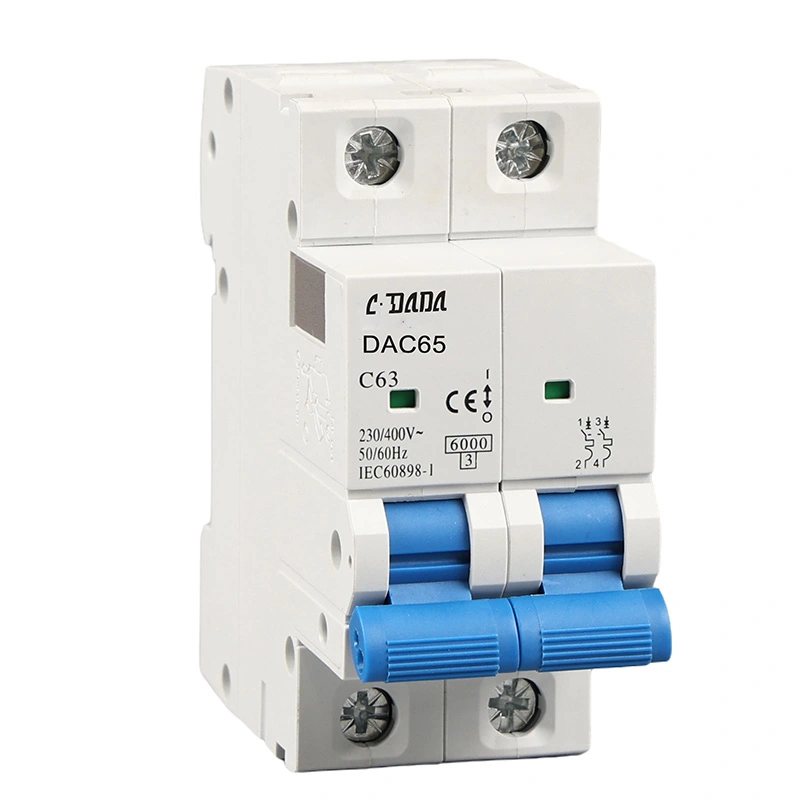

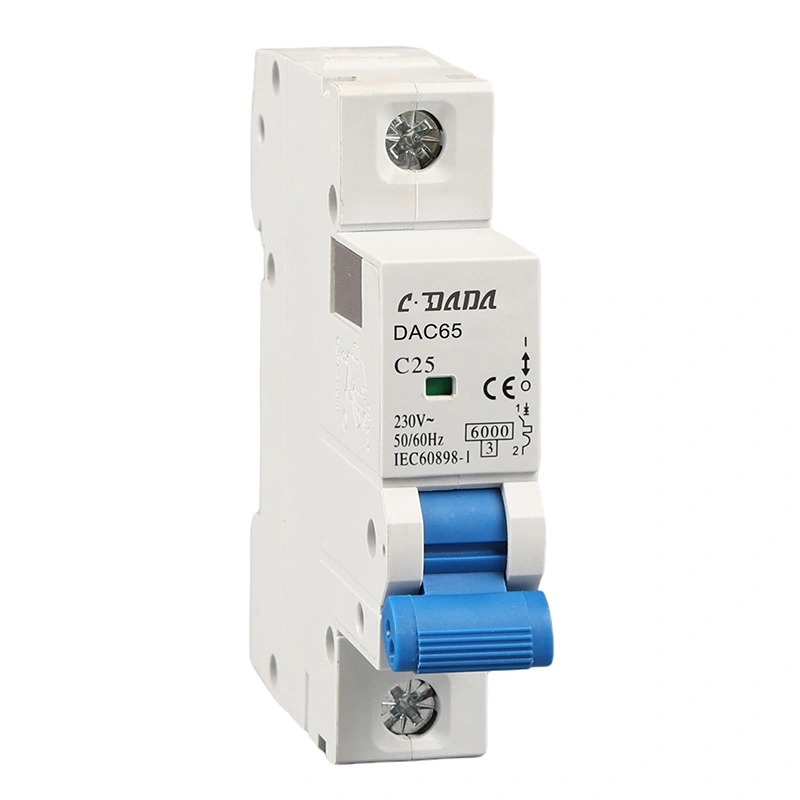

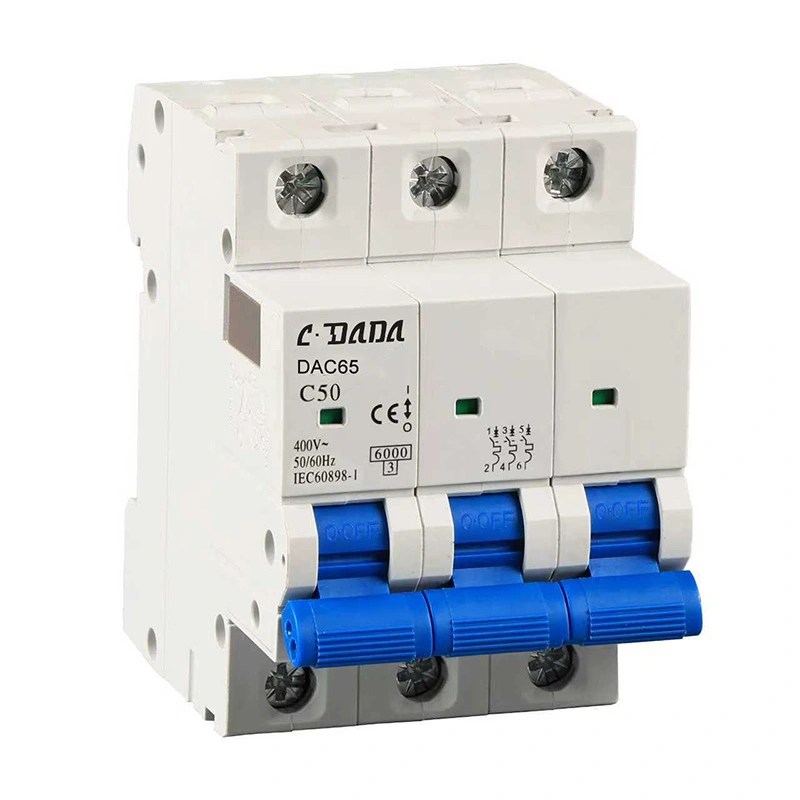

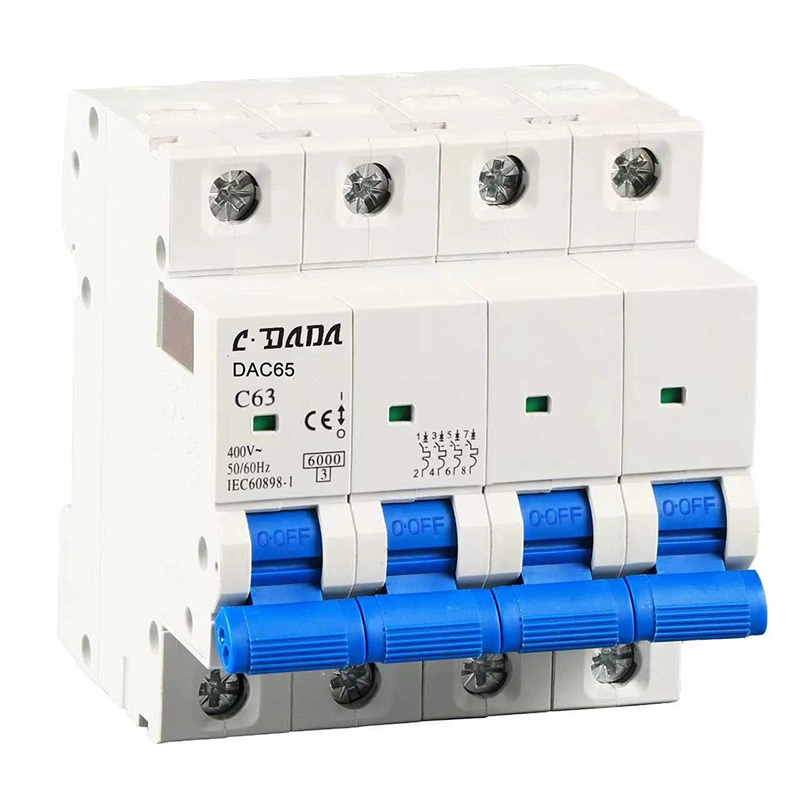

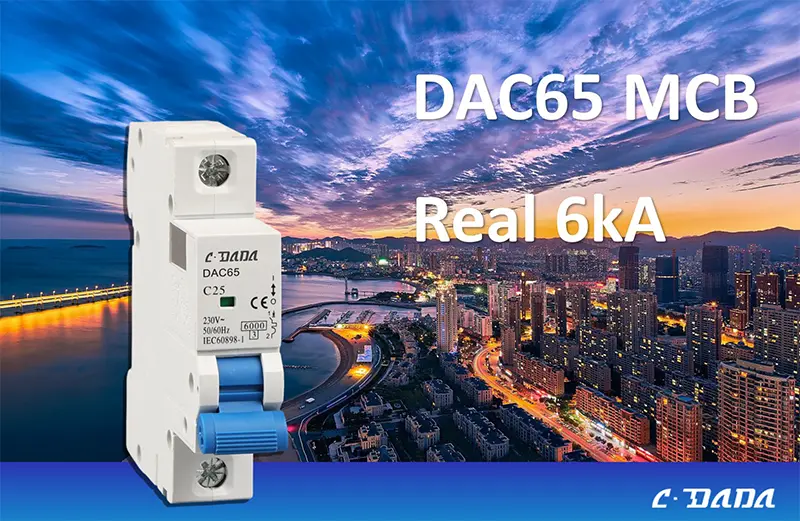

Jeexiyaha Yare ee REAL 6KA
Model:DAC65
La xidhiidh CDADA maanta oo aan kuu noqono alaab-qeybiyahaaga Miniature Circuit Breaker REAL 6KA, jebiye wareeg yar oo tayo sare leh oo waafaqsan IEC/EN60898 ilaalinta wareegga la isku halayn karo. Waxay ka kooban tahay kulaylka magnetka iyo qolofka ololka, way fududahay in lagu rakibo tareenka DIN, waana sahlan tahay in la ilaaliyo. Waxay isku daraysaa waxqabadka xasilloon oo leh nashqad raagaya, gaaritaanka nolosha adeegga dheer ee qaybinta awoodda deegaanka iyo warshadaha.
CDADA DAC65 Miniature Circuit Breaker REAL 6KA waa koronto yar yar oo wax qabad sare leh oo loogu talagalay nidaamyada korantada AC 50/60Hz. Waxay bixisaa culays xad-dhaaf ah oo wax ku ool ah iyo ilaalin gaaban oo wareeg ah, oo leh B/C/D qalooca si ay ugu habboonaato culeysyo kala duwan. Si ballaaran loogu isticmaalo guddiyada qaybinta, dhismayaasha la dego, warshadaha, iyo tas-hiilaadka ganacsiga, waa doorashada ugu sareysa ee iibsadayaasha caalamiga ah iyo la-hawlgalayaasha OEM.
Faa'iidooyinka Muhiimka ah
★ REAL 6kA awoodda jabinta sare ee ilaalinta wareegga gaaban ee deggan
★ Siidaynta kulaylka-magnetic si sax ah oo degdeg ah u dhaco
★ Cabbirka is haysta: 17.8mm tiirkiiba, meel u kaydinta armaajooyinka
★ shahaadada ilaalinta IP20, badbaado leh in la taabto oo la shaqeeyo
Kala duwanaanshaha fiilooyinka ballaaran: waxay taageertaa 0.5-63A, fiilooyinka dabacsan oo adag
★ DIN tareenada ku rakibida degdega ah
★ qolof ololka celisa, iska caabin heerkul sare ah
★ Waxqabadka xasiloon ee -5℃~+40℃ jawiga deegaanka
Codsiyada
CDADA Miniature Circuit Breaker REAL 6KA ayaa si weyn loogu isticmaalaa:
★ Dhismayaasha deegaanka, aqalada, filooyinka
★ Xafiisyo, goobo laga dukaameysto, hoteello, dhismayaal dadweyne
★ Aqoon-is-weydaarsiyo warshadeed, qalab koronto oo yaryar
★ Nidaamyada nalalka, saldhigyada korontada, qaybinta qaybinta
★ marawaxado, bambooyin, kombaresarada iyo matoorada yaryar
★ Mashaariicda dib-u-habaynta kaabayaasha iyo korantada
Qiyaasaha Farsamada
| Shayga | Tilmaamid |
| Qaabka | DAC65 MCB REAL 6KA |
| Heerka | IEC/EN60898 |
| Jebinta Awoodda | 6kA |
| Lagu qiimeeyay Hadda | 0.5,1,2,3,4,5,6,10,16,20,25,32,40,50,63A |
| Tiirarka | 1P,1P+N,2P,3P,3P+N,4P |
| Qallooca | B(3-5in), C (5-10in), D (10-20in) |
| Voltage lagu qiimeeyay | 1P: 240V; 2P: 240/415V; 3P/4P:415V |
| Korontada dahaarka | 500V |
| Qulqulka Voltage | 6kV |
| Heerka Xadaynta Tamarta | 3 |
| Degree ilaalinta | IP20 |
| Rakibaadda | 35mm DIN tareemada |
| Nooca Terminalka | Nooca lugaha / nooca pin |
| Heerkulka deegaanka | -5 ℃ ~ +40 ℃ |

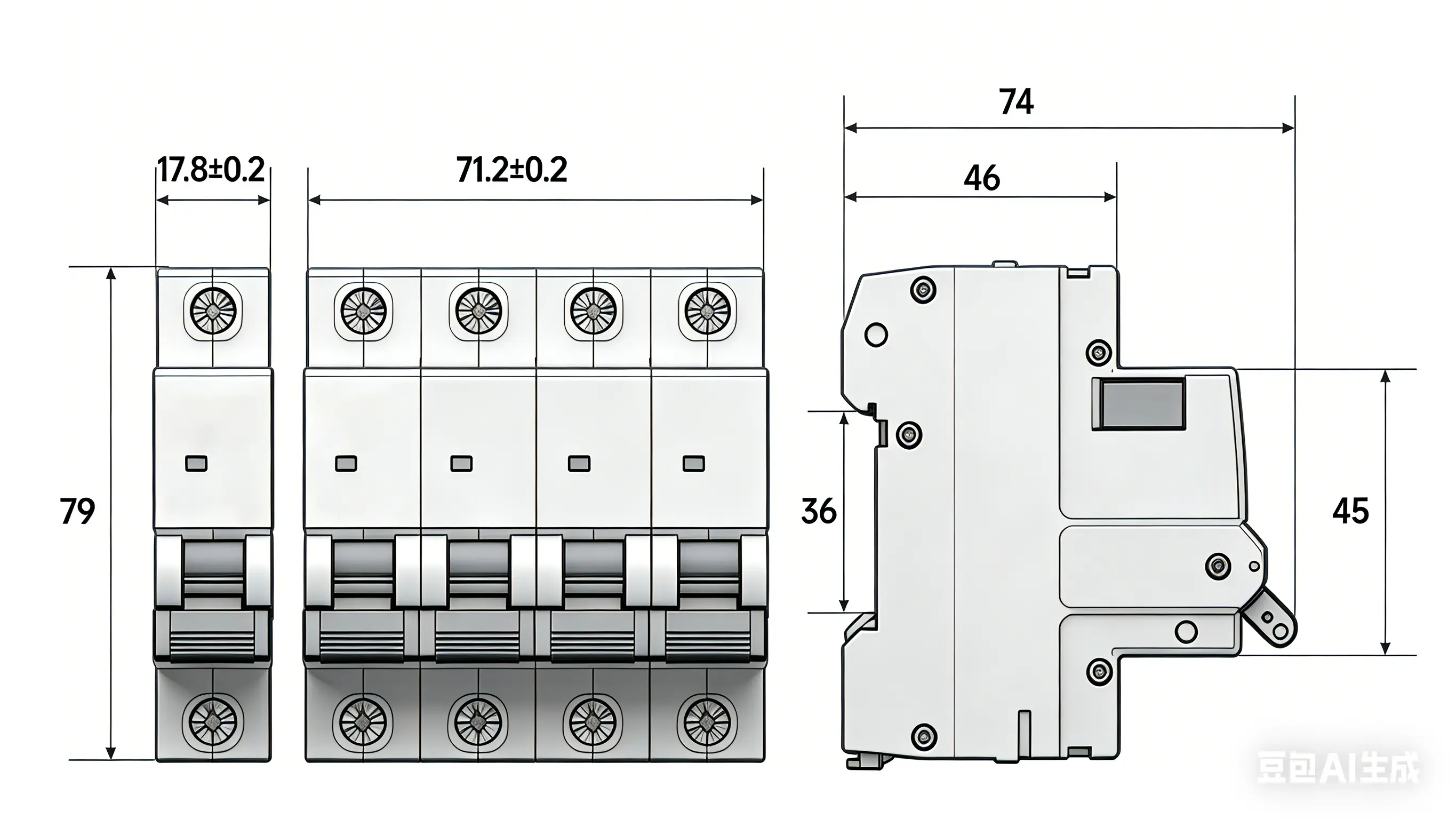

Qeexidda Cabbirrada
★ Ballaca: 17.8mm tiirkiiba
★ Koritaanka: Heerka 35mm tareemada DIN
Awoodda fiilooyinka: Ilaa 35mm² fiilo adag
★ Qaab-dhismeedka is haysta ee sanduuqyada qaybinta caadiga ah
Walxaha Imtixaanka caadiga ah
★ 1.13 Imtixaan aan safrin (≥1h)
★ 1.45 Imtixaanka safarka (<1s)
★ Tijaabada sifada jabka magnetic
★ Tijaabada heerkulka kor u kaca
Korantada Dielectric u adkaysta tijaabada
★ Tijaabada awoodda jebinta wareegga-gaaban (6kA)
★ Imtixaanka adkeysiga makaanikada & korantada

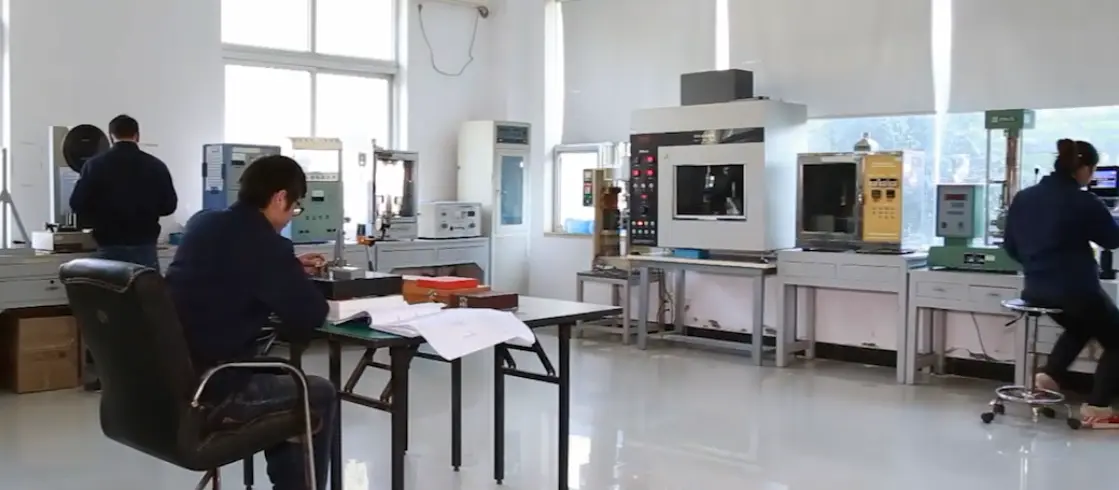

Habka Xakamaynta Tayada
1. Kormeerka alaabta ceeriin
2. Wax-soo-saarka tooska ah & isu-ururinta saxda ah
3.100% jaangooyooyin buuxa
4. Tijaabada socodka heerkulka sare/hoose
5. U adkeyso korantada & tijaabada dahaadhka
6. Kormeerka muuqaalka & cabbirka
7. Kormeerka ugu dambeeya ka hor baakadaha
Baakadaha & Rarista
Kartoon dhoofinta caadiga ah oo leh dahaarka gudaha ee naxdinta leh
★ Summada cad: moodeel, hadda, tiirar, tiro, shahaado
★ baakadaha kooxda si aad uga fogaato xagashada iyo dhaawaca
★ Ku habboon gaadiidka badda, hawada iyo dhulka
★ Taageer sumadda OEM & baakadaha gaarka ah
Kiisaska Guusha Macmiilka
CDADA Miniature Circuit Breaker REAL 6KA waxay leedahay shuraako wakhti dheer aduunka oo dhan ah:
★ Sahay badan oo loogu talagalay qaybiyeyaasha Yurub iyo qandaraaslayaasha
★ Mashaariicda deegaanka & ganacsiga ee Bariga Dhexe & Afrika
★ iskaashiga OEM ee noocyada korontada ee caalamiga ah
★ Nidaamyada qaybinta tamarta ee Koonfur-bari Aasiya & Koonfurta Ameerika
★ Awaamiirta muddada-dheer ee ka timaada soo-dejiyayaasha iyo kuwa korontada ku shaqeeya
